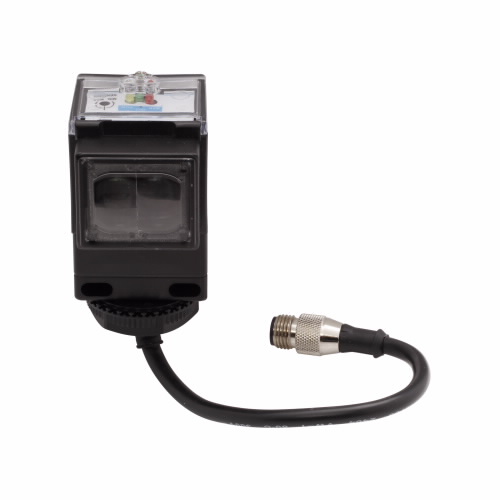

EATON 1451E-6534 Photoelectric Sensor, Dual Key Micro, 3A At 240V, 5 Pin, 24-240 VAC, 12-240 VDC
Item: BJ6CMQModel: 1451E-6534Cross Ref: 2XCK1
7 In Stock
Ships within 2 days via
5.00% off
€440.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Ac Supply Voltage | 24-240V AC |
| Body Material | Plastic |
| Connection | Dual Key Micro (pigtail) |
| Contact Configuration | SPDT Form C Relay |
| Contact Rating | 3A at 240V AC |
| Cylindrical Sensor Dims. (d X L) | 46 mm |
| Dc Supply Voltage Rating | 12-240V DC |
| Display Qty | 1 |
| Electrical Connection | Dual Key Micro Connector |
| Electrical Installation Type | Direct Connector |
| Emitted Sensor Light | Red Light |
| Enclosure Material | Fiberglass Reinforced Plastic |
| Features | Output Short Circuit Protection, Overcircuit Protection, Reverse Polarity Protection |
| Height | 1.81" |
| Included Indicator Lights | Indicator Lights Included |
| Input Voltage | 24-240V AC/12-240V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output, Green Power, Yellow Alignment, Red |
| Length | 4.01" |
| Max. Amps | 3A |
| Max. Load Amps | 3000A |
| Max. Operating Temp. | 131°F |
| Max. Sensing Distance | 4.9m |
| Min. Operating Temp. | -13°F |
| Min. Sensing Distance | 152 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| No. Of Pins | 5 |
| Output Circuit | Electromechanical Relay |
| Output Circuit Contact Form | SPDT |
| Output Circuit Type | Relay |
| Overall Height | 46 mm |
| Overall Width | 49 mm |
| Product Name | Eaton Enhanced 50 Photoelectric Sensor |
| Product Type | Photoelectric Sensor |
| Protection Type | Output Short Circuit, Overcircuit And Reverse Polarity |
| Response Time | 15 ms |
| Sensing Method | Polarized Retroreflective |
| Sensor Body Style | Rectangular |
| Sensor Cable Length | 2m |
| Sensor Connector Type | 5 Pin Micro |
| Sensor Dia. | 102 mm |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Sensor Type | Polarized Retroreflective |
| Series | Enhanced 50 |
| Supply Voltage | 24-240V AC/12-240V DC |
| Supply Voltage Type | Ac, Dc |
| Switching Frequency | 33 Hz |
| Width | 1.91" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 4.6 |
| Ship length (cm) | 10.19 |
| Ship width (cm) | 4.85 |
| Country of Origin | US |
Product Variants
| Model | Height | Input Voltage | Supply Voltage | Electrical Connection | Overall Height | Dc Supply Voltage Rating | Supply Voltage Type | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1151E-6517 | 3.46" | 10-40V DC | 10-40V DC | Bare Wire | 88 mm | 10-40V DC | Dc Only | 46 mm | €333.17 | |
| 1151E-6513 | 1.81" | 24-240V AC/12-240V DC | 24-240V AC/12-240V DC | Bare Wire | 46 mm | 12-240V DC | Ac, Dc | 49 mm | €353.42 | |
| 1151E-6534 | 3.46" | 12-240V AC/24-240V DC | 24-240V AC/12-240V DC | Dual Key Micro Connector | 88 mm | 12-240V DC | Ac, Dc | 46 mm | €281.23 | |
| 1151E-6543 | 1.81" | 24-240V AC/12-240V DC | 24-240V AC/12-240V DC | Dual Key Micro Connector | 46 mm | 12-240V DC | Ac, Dc | 49 mm | €331.38 | |
| 1151E-6547 | 1.81" | 10-40V DC | 10-40V DC | M12 | 46 mm | 10-40V DC | Dc Only | 49 mm | €293.04 | |
| 1251E-6514 | 1.81" | 24-240V AC/12-240V DC | 24-240V AC/12-240V DC | Bare Wire | 46 mm | 12-240V DC | Ac, Dc | 49 mm | €356.29 | |
| 1251E-6513 | 1.81" | 24-240V AC/12-240V DC | 24-240V AC/12-240V DC | Bare Wire | 46 mm | 12-240V DC | Ac, Dc | 49 mm | €321.76 |
