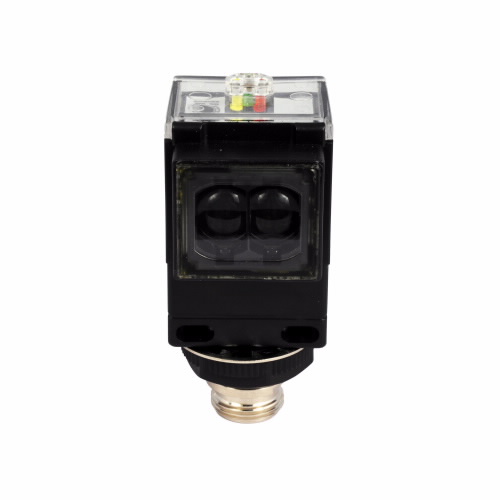

EATON 1250E-6503 Photoelectric Sensor, Distance 200 Feet, 300 mA At 240 VAC/VDC, 12-240 VDC 24-240 VAC
Get it by Friday, Feb 20
€365.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Connection | 4-pin Mini Connector |
| Contact Configuration | Isolated Solid State Relay |
| Contact Rating | 300 MA at 240V AC/V DC |
| Enclosure Material | Fiberglass Reinforced Plastic |
| Height | 4 4/25" |
| Input Voltage | 12-240V AC/24-240V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output Status, Green Marginal Gain, Red Power On, Yellow |
| Length | 1.91" |
| Max. Ac Amps | 300 mA |
| Max. Operating Temp. | 131°F |
| Maximum Dc Current | 300 mA |
| Operating Mode | Thru Beam |
| Operating Temperature - Min | -13°F |
| Product Name | Eaton Enhanced 50 Photoelectric Sensor |
| Protection Type | Reverse Polarity And Short Circuit Protected |
| Sensor Type | Through Beam |
| Switch Type | Photoelectric |
| Warranty | 3 yrs. |
| Width | 1.81" |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 10.57 |
| Ship length (cm) | 4.85 |
| Ship width (cm) | 4.6 |
| Country of Origin | US |
Product Variants
| Product | Model | Operating Mode | Ip Rating | Price | |
|---|---|---|---|---|---|
 |
1452E-6547 | - | IP67, IP69K | €571.24 | |
 |
1351E-6537 | Diffuse Reflective | IP67, IP69K | €422.37 | |
 |
1351E-8537 | Diffuse Reflective | IP67, IP69K | €558.44 | |
|
1351E-8533 | Diffuse Reflective | IP67, IP69K | €586.79 | |
 |
1351E-8517 | Diffuse Reflective | IP67, IP69K | €558.44 | |
 |
1351E-6533 | Diffuse Reflective | IP67, IP69K | €453.56 | |
|
1250E-6537 | Thru Beam | IP67, IP69K | €334.50 |
