DYNAQUIP CONTROLS VAE2.A0 1/2 Ball Valve, 1/2 Inch NPT, 2 Way, Full Port, 3.23 Inch Overall Length
Item: AE8FLPModel: VAE2.A0 1/2Cross Ref: 6CX24
7 In Stock
Ships within 2 days via
13.00% off
€79.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Average Surface Roughness (ra) | Not Applicable |
| Ball Finish | Carbon Steel , Chrome Plated |
| Ball Port Style | Full Port |
| Ball Seats | Delrin |
| Ball Valve Product Group | Manual |
| Body Material | Carbon Steel |
| Body Style | Inline |
| Coefficient Of Volume | 13 |
| Color | Black |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 1/2" |
| Connection Size-side 2 | 1/2" |
| Connection Type | FNPT x FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| Finish | Chrome Plated |
| For Media | Water |
| General Connection Type | Female NPT |
| Handle | Lever |
| Handle Color | Gray |
| Handle Height | 2.95" |
| Handle Length | 4.41" |
| Handle Material | Zinc Alloy |
| Handle Type | Lever |
| Included Mounting | Not Applicable |
| Installed Options | None |
| Max. Operating Pressure | 5800 psi |
| Max. Operating Temp. | 175°F |
| Max. Pressure | 5800 psi WOG |
| Max. Pressure (cwp) | 5800 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Max. Pressure-steam | Not Applicable |
| Max. Temp. | 175°F |
| Media Temp. | -20°F to +175°F |
| No. Of Pieces | 3 |
| Nominal Valve Size | 1/2" |
| Overall Length | 3.23" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1/2" |
| Port | Full |
| Pressure For Water | 5800 psi WOG |
| Product Type | Ball Valve |
| Seal Material | Delrin |
| Seal Type | Delrin |
| Seat Material | Delrin |
| Stem Finish | Nickel Plated , Steel |
| Stem Seals | Nitrile |
| Stem Type | Blowout Resistant |
| Temp. | -20°F to +175°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Black |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Series | Vae |
| Valve Type | 2-Way |
| Valve Ways | 2-Way |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 20.07 |
| Ship width (cm) | 10.16 |
| HS code | 8481803070 |
| Country of Origin | DE |
Product Variants
| Model | Color | Max. Pressure | Max. Operating Pressure | Nominal Valve Size | Max. Pressure (cwp) | Handle Material | Connection Size-side 2 | Connection Size-side 1 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VAE2.A0 1 1/4 | Black | 4600 psi WOG | 4600 psi | 1 1/4" | 4600 psi | Cast Steel | 1 1/4" | 1 1/4" | €314.46 | |
| VAE2.A0 1 1/2 | Black | 4600 psi WOG | 4600 psi | 1 1/2" | 4600 psi | Cast Steel | 1 1/2" | 1 1/2" | €401.50 | |

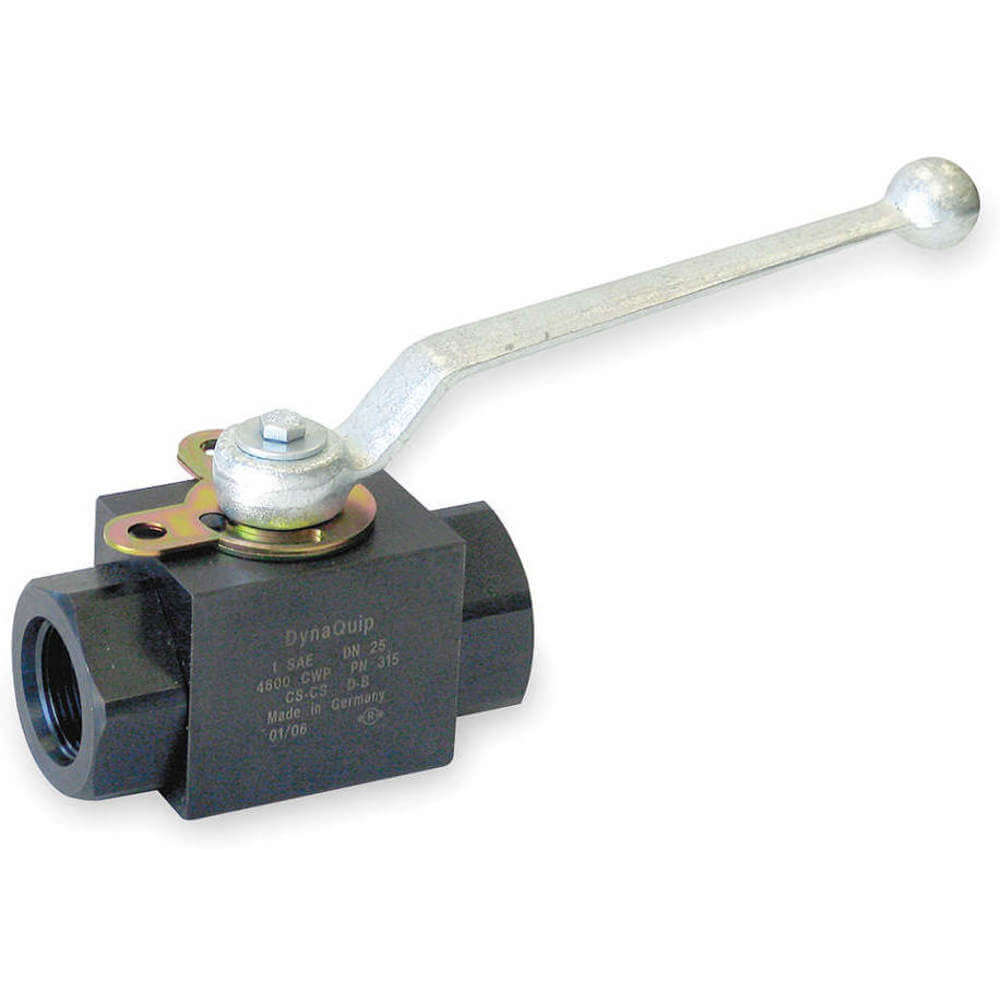

| VAE2.A00P 1/4 | Gray | 7000 psi WOG | 7000 psi | 1/4" | 7000 psi | Cast Steel | 1/4" | 1/4" | €117.48 | |
| VAE2.A00P 3/8 | Gray | 7000 psi WOG | 7000 psi | 3/8" | 7000 psi | Zinc Alloy | 3/8" | 3/8" | €113.84 | |
| VAE2.A00P 1/2 | Black | 5800 psi WOG | 5800 psi | 1/2" | 5800 psi | Steel | 1/2" | 1/2" | €125.33 | |
| VAE2.A00P 3/4 | Gray | 4600 psi WOG | 5800 psi | 3/4" | 5800 psi | Cast Steel | 3/4" | 3/4" | €180.37 | |
| VAE2.A00P 1 | Gray | 4600 psi WOG | 4600 psi | 1" | 4600 psi | Cast Steel | 1" | 1" | €207.66 |
