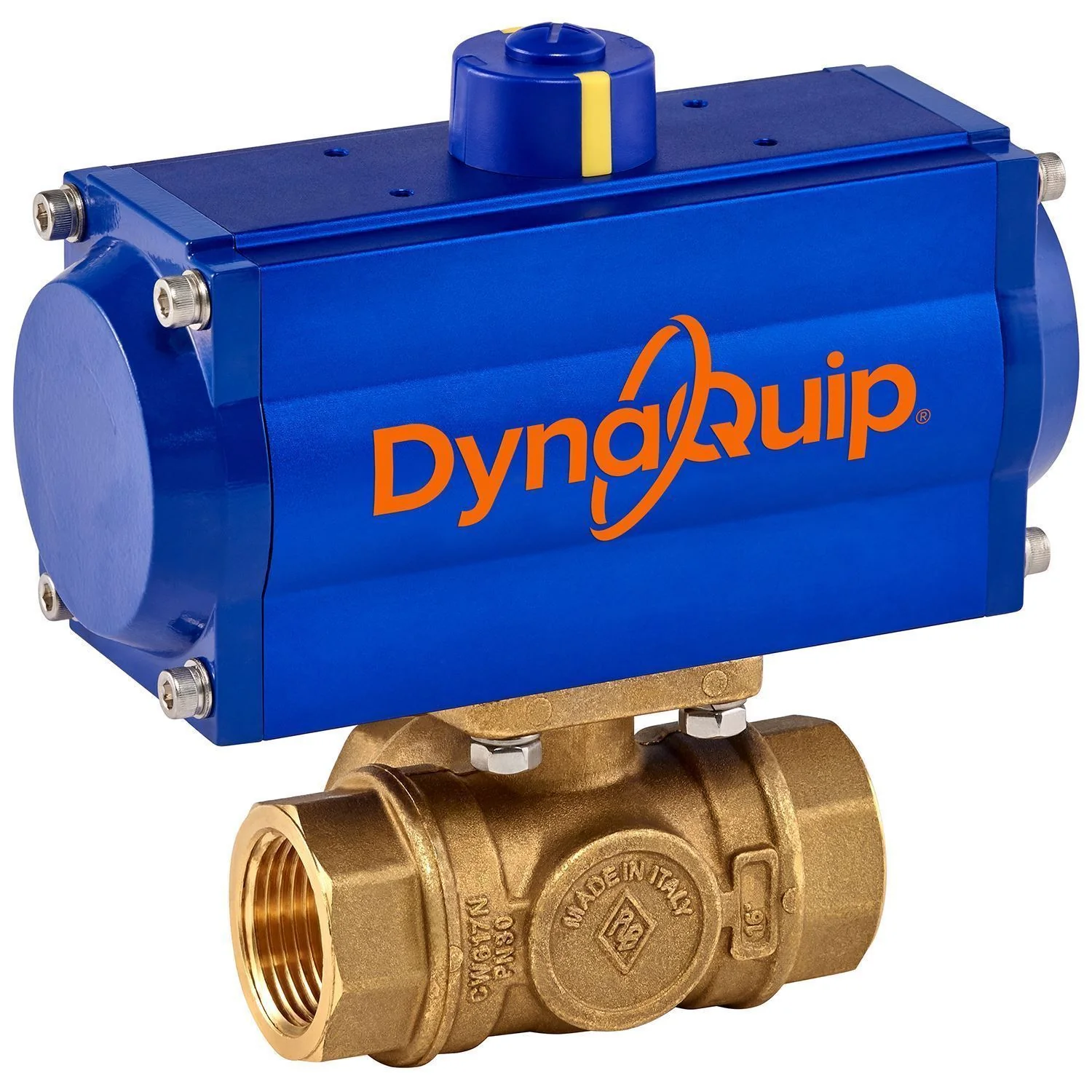

DYNAQUIP CONTROLS PYHG5AUD02A Ball Valve 1 Inch Npt Double Acting Brass | AA8ZBM 1AWK2

DYNAQUIP CONTROLS PYHG5AUDA052A Automated Ball Valve, 3 Way, L Port, Brass, 3.74 Inch Overall Length

Item: AA8ZBMModel: PYHG5AUDA052ACross Ref: 1AWK2
7 In Stock
Material

Ships within 2 days via

€1,010.95 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Ball Valve
3-a Certified Not Rated
Actuator Air Port Connection 1/4" FNPT
Actuator Features 2 Spdt Switches
Actuator Operation Air To Air
Actuator Series HP
Actuator Type Double Acting
Ball Finish Brass , Nickel Plated
Ball Opening Size 1"
Ball Port Style Standard Port
Ball Valve Product Group Actuated
Body Material Brass
Body Style Three Way
Connection Type FNPT x FNPT x FNPT
Fail Safe Position Fail Last
Flow Pattern L Flow
For Media Air, Natural Gas, Oil, Water
Included Mounting Actuator Mounting Pad
Included Pilot Solenoid 115V AC Pilot Solenoid
Inlet Connection Entry Bottom
Inlet Connection Gender Female
Inlet Connection Size 1"
Inlet Connection Type NPT
Max. Actuator Air Pressure 120 psi
Max. Actuator Ambient Temp. 176°F
Max. Differential Pressure 300 psi
Max. Inlet Pressure 120 psi
Max. Media Temp. 200°F
Max. Pressure 400 psi
Max. Pressure (cwp) 300 psi
Max. Pressure-combustible Gas Not Rated
Media Temp. -4°F to +200°F
Min. Actuator Air Pressure 80 psi
Min. Actuator Ambient Temp. -4°F
Min. Media Temp. -4°F
Mount Direct
Nema Enclosure Rating NEMA 4, NEMA 4X
No. Of Pieces 1
Nominal Valve Size 1"
Operation Double Acting
Outlet Connection Gender-side 1 Female
Outlet Connection Gender-side 2 Female
Outlet Connection Type-side 1 NPT
Outlet Connection Type-side 2 NPT
Overall Length 3.74"
Pilot Solenoid Voltage 115V AC
Pipe Size 1"
Port Diverter L Style
Required Pressure 80 psi
Seal Material FKM, PTFE
Seat Material FKM, PTFE
Stem Finish Brass , Nickel Plated
Stem Type Bottom Loaded
Temp. +14°F to +140°F
Valve Construction One-Piece
Valve Series Pyhg
Valve Ways 3-Way

Shipping Info:

Ship weight (kg) 2.61
Ship height (cm)11.94
Ship length (cm)21.34
Ship width (cm)16.26
HS code8481809040
Country of OriginCN

Product Variants

ProductModelSeal MaterialSeat MaterialPipe SizeConnection TypeOperationBody StyleMax. PressurePortPrice

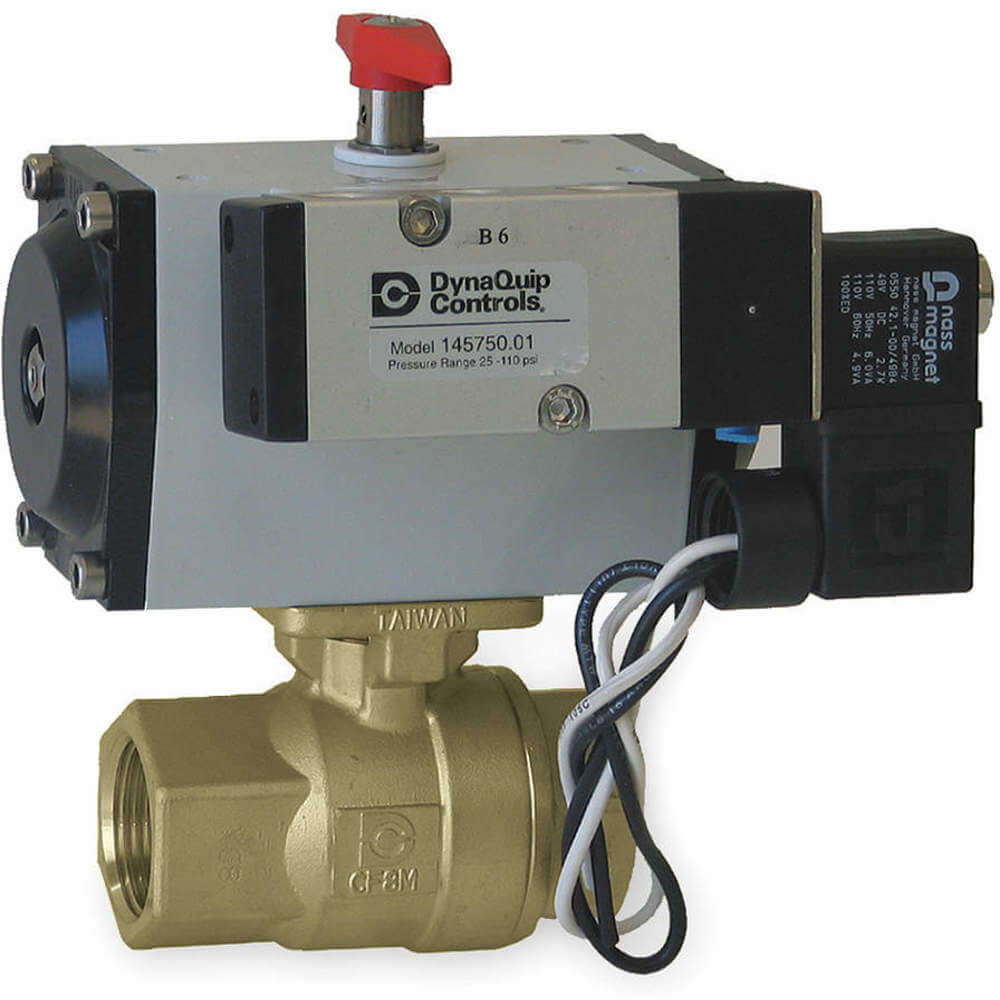

DYNAQUIP CONTROLS PHH2AATD05A Ball Valve 3 Inch Npt Double Acting Brass | AA8ZBF 1AWJ5 PHH2AATDA075AFKMFKM3"FNPT x FNPTDouble ActingInline600 psiFull€2,175.91
DYNAQUIP CONTROLS PHH2AATS065A Ball Valve 3 Inch Npt Spring Return Brass | AA8ZBG 1AWJ6 PHH2AATS065AFKMFKM3"FNPT x FNPTSpring Return Fail ClosedInline600 psiFull€2,514.16
DYNAQUIP CONTROLS PYHG8AUD05A Ball Valve 2 Inch Npt Double Acting Brass | AA8ZBQ 1AWK5 PYHG8AUDA063AFKM, PTFEFKM, PTFE2"FNPT x FNPT x FNPTDouble ActingThree Way400 psiDiverter L Style€1,854.09
DYNAQUIP CONTROLS PYHGAAUD05A Ball Valve 3 Inch Npt Double Acting Brass | AA8ZBR 1AWK6 PYHGAAUDA075AFKM, PTFEFKM, PTFE3"FNPT x FNPT x FNPTDouble ActingThree Way400 psiDiverter L Style€2,552.28
DYNAQUIP CONTROLS PYHG3AUS024A Ball Valve 1/2 Inch Npt Spring Return | AA8ZBV 1AWK9 PYHG3AUSR05210AFKM, PTFEFKM, PTFE1/2"FNPT x FNPT x FNPTSpring Return Fail ClosedThree Way400 psiDiverter L Style€892.58
DYNAQUIP CONTROLS PYHG4AUS024A Ball Valve 3/4 Inch Npt Spring Return | AA8ZBW 1AWL1 PYHG4AUSR05210AFKM, PTFEFKM, PTFE3/4"FNPT x FNPT x FNPTSpring Return Fail ClosedThree Way400 psiDiverter L Style€892.60
DYNAQUIP CONTROLS PYHG5AUS054A Ball Valve 1 Inch Npt Spring Return Brass | AA8ZBX 1AWL2 PYHG5AUSR07510AFKM, PTFEFKM, PTFE1"FNPT x FNPT x FNPTSpring Return Fail ClosedThree Way400 psiDiverter L Style€1,183.14
