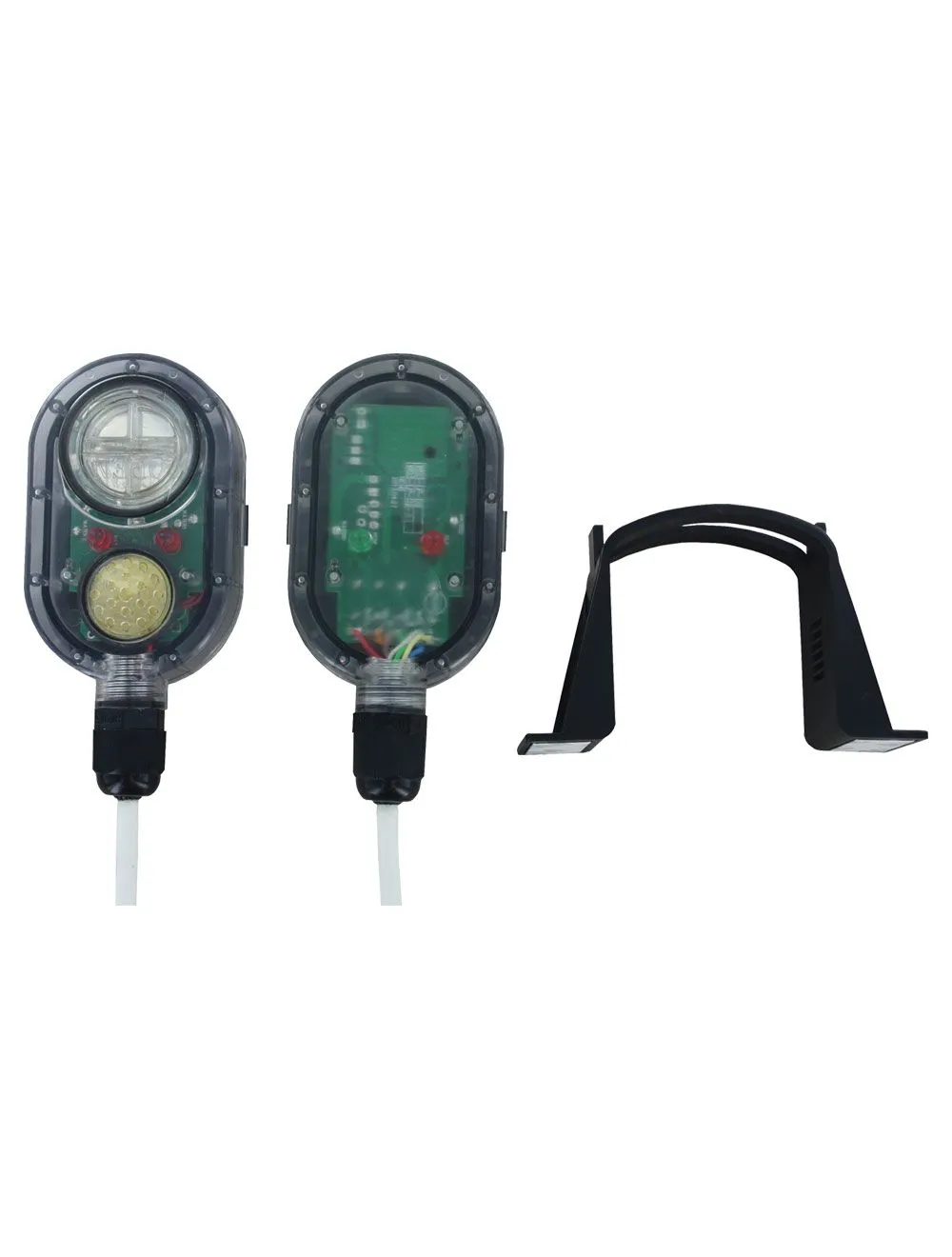

DWYER INSTRUMENTS WD3-LP-D2 INSTRUMENTS Water Leak Detect, No Alarm
Item: CP3YCMModel: WD3-LP-D2Cross Ref: 244M88
7 In Stock
Ships within 2 days via
5.00% off
€176.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motor |
| Amps | 1A |
| Audible Alarm | At Least 85 dB @ 1 ft. Distance (Depends On Model) |
| Battery Life | 5 Yrs. Steady State, 48 Hrs. During Alarm Condition |
| Body Style | Cylindrical |
| Cable Length | 4.9 ft. |
| Cable Rating | Plenum Rated CL2P (UL) |
| Compliance | CE, RoHS |
| Electrical Connection | 4.9 ft. 22 AWG PVC UL Plenum Rated Cable |
| Electrical Rating | Battery Powered Model: Pilot Duty Rating 250 Ma @ 24V DC, External Powered Models: 1 A @ 24V AC/Dc. |
| Enclosure Material | ABS And Polycarbonate With Flammability Classification UL 94 V0 |
| Family Series | Dwyer Instruments HVAC Sensors, WD3 Series |
| Ip Rating | IP68 |
| Min. Sensing Gap | 1/32" |
| Mounting | Adhesive Strip, Bracket |
| Nema Rating | NEMA 6P |
| Output Signal | Dry Contact |
| Power Consumption | Battery Powered Model: 0.9 Ma Steady State, 3.0 Ma During Alarm Condition, External Powered Models: 30 Ma Steady State, 85 Ma During Alarm Condition. |
| Power Requirement | Battery Powered Model: 3V CR2450 Lithium Metal Battery, Installed Functional, User Replaceable, External Powered Models: 24V AC (+/-10%) Or 11-27 VDC. |
| Sensing Mode | Capacitive |
| Series | WD3 Series |
| Status Indicator | Yes |
| Temp. Rating | 32°F to 122°F |
| Type | Remote Probe |
| Visual Alarm | Red Led For Water Level, Yellow Led For Low Battery (Batterypowered Models Only), Green Led For Power Condition (External Powered Modelsonly). |
| Voltage | 11-27V DC |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 10.48 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 3.02 |
| Country of Origin | US |
