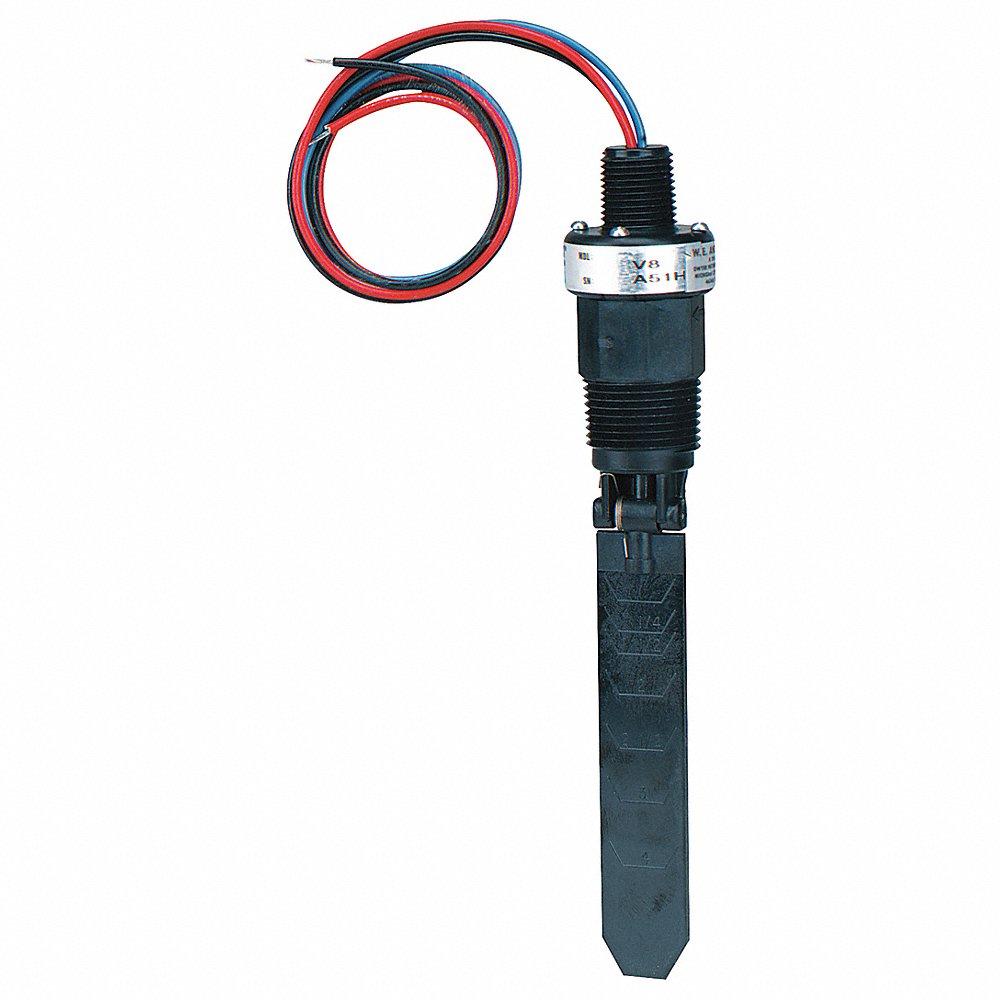

DWYER INSTRUMENTS V8 Liquid Flow Switch, 1 Inch MNPT, 150 PSI Max. Pressure, 125/250V AC, SPDT
Item: CJ2TENModel: V8Cross Ref: 55EH49
7 In Stock
Ships within 2 days via
5.00% off
€207.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Liquid Flow Switch |
| Application | Coolant Loops, Other |
| Body Material | Polyphenylene Sulfide |
| Cable Length | 18" |
| Conduit Size | 1/2" |
| Connection Size | 1" |
| Connection Type | NPT |
| Contact Rating (ac) | 5A @ 125/250V |
| Contact Rating (dc) | 5A @ 125/250V AC, 5A resistive, 3A Inductive @ 30V DC. MV option: 1A @ 125V AC, 1A resistive, 0.5A Inductive @ 30V DC. |
| Dc Contact Rating | 5A @ 125/250V AC, 5A Resistive, 3A Inductive @ 30V DC. Mv Option: 1A @ 125V AC, 1A Resistive, 0.5A Inductive @ 30V DC. |
| Electrical Rating | 5A @ 125/250V AC, 5A Resistive, 3A Inductive @ 30V DC |
| Flow Switch Type | Paddle |
| For Pipe Size | 1", 6" |
| Frequency | 50/60 Hz |
| Housing/body Material | PPS |
| Material Of Construction | Stainless Steel |
| Max. Ambient Temp. | 212°F |
| Max. Duct Size | 6" |
| Max. Filter Rating | Not Applicable |
| Max. Flow Rate | Not Applicable |
| Max. Media Temp. | 212°F |
| Max. Pressure | 150 psig |
| Media Temp. | -4°F to +212°F |
| Min. Ambient Temp. | -4°F |
| Min. Flow Rate | Not Applicable |
| Min. Media Temp. | -4°F |
| Nameplate Voltage | Not Applicable |
| Overall Height | 1 4/5" |
| Overall Length | 11 4/5" |
| Overall Width | 1 4/5" |
| Phase | 1 |
| Set Point Configuration | Adjustable |
| Switch Enclosure | NEMA 4X |
| Switch Position | Normally Open, Normally Closed |
| Switch Type | SPDT |
| Wetted Material | Ceramic, Polyphenylene Sulfide, Stainless Steel , Stainless Steel, Ceramic |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 29.97 |
| Ship width (cm) | 4.57 |
| Country of Origin | US |
Product Variants
| Model | Connection Size | Switch Type | Housing Material | For Pipe Size | Switch Enclosure | Overall Height | Overall Width | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| V6EPS-S-S-3-S | 1" | SPDT | Stainless Steel | 1/2", 1/4", 2", 3/8" | NEMA 4 | 4 4/5" | 3 3/5" | 3 3/5" | €1,052.38 | |
| V6EPB-B-S-6-0 | 1/2" | SPDT | Brass | 1/2", 1/4", 2", 3/8" | NEMA 4 | 4 4/5" | 3 3/5" | 3.6" | €560.21 | |

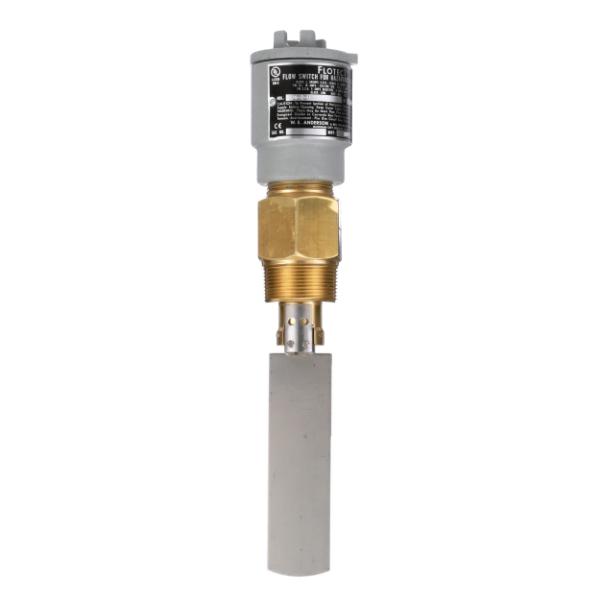

| V4-SS-2-U | 1 1/2" | SPDT | - | 1 1/2" | NEMA 4 | 3.3" | 3.3" | 8" | €1,699.23 | |
| V6EPB-B-D-2-MI | 3/4" | DPDT | Brass | - | - | 4 4/5" | 3 3/5" | 3 3/5" | €748.33 | |
| V6EPS-S-D-2-S | 3/4" | DPDT | Stainless Steel | 1/2", 1/4", 2", 3/8" | NEMA 4 | 4 4/5" | 3 3/5" | 3 3/5" | €1,058.85 | |
| V6EPB-B-S-4-MI | 1 1/4" | SPDT | Brass | 1/2", 1/4", 2", 3/8" | NEMA 4 | 4 4/5" | 3 3/5" | 3 3/5" | €797.82 | |
| V6EPB-B-S-5-B | 1 1/2" | SPDT | Brass | 1/2", 1/4", 2", 3/8" | NEMA 4 | 4 4/5" | 3 3/5" | 3 3/5" | €837.62 |
