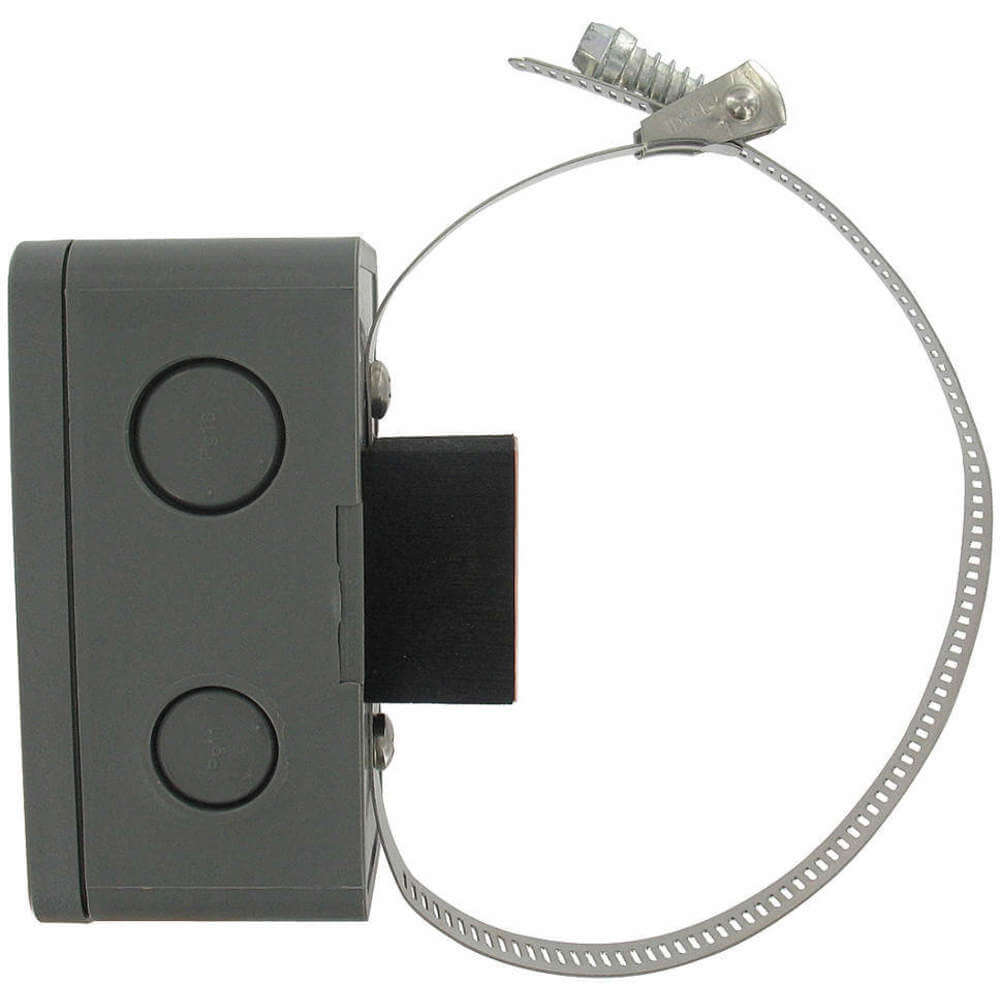

DWYER INSTRUMENTS S2-22 Surface mount temperature sensor, RTD Point, 1000 Ohm
Item: AE8FBRModel: S2-22Cross Ref: 6CUG2
7 In Stock
Ships within 2 days via
10.00% off
€133.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Surface Temperature Probe |
| Accuracy | +/-0.6% @ 32°F |
| Cable Length | 6 ft. |
| For Air | Yes |
| For Application | Air, Surfaces |
| For Gases | No |
| For Liquids And Gels | No |
| For Solids | No |
| For Surfaces | Yes |
| Head Connection | 3/8" Npt Condit Knock Out |
| Head Material | Plastic |
| Includes | Housing |
| Includes Signal Converter | No |
| Includes Thermowell | No |
| Manufacturer Warranty Length | 1 yr. |
| Maximum Temperature °c | 115.5°C |
| Maximum Temperature °f | 240°F |
| Minimum Temperature | -35.5°C |
| Minimum Temperature °f | -32°F |
| Mounting Size | 2" to 5" |
| Mounting Type | Strap On To Pipe |
| Nickel Rtd Accuracy | -/+ 0.5% @ 32°F |
| Number Of Wires | 2 |
| Opening/diameter | 1/4" |
| Operating Temp. Range | -32°F to +240°F |
| Platinum Rtd Accuracy | -/+ 0.6% @ 32 Deg. F |
| Probe Dia. | 1/4" |
| Probe Diameter | 0.25" |
| Probe Material | Copper |
| Probe Sheath Material | Grade 304 Stainless Steel |
| Probe Size | 1/4" |
| Probe Wire Length | 6 ft. |
| Process Mounting | Hose Clamp |
| Resistance | 1000 ohms |
| Rtd Type | 2 Wire 1000 ohms |
| Sensor Type | Rtd |
| Temp. Range | -32° to +240° , -35.5° to +115.5° |
| Temperature Range | -32°F to +240°F |
| Use | Air And Surface |
| Wire Length | 6 ft. |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 30.48 |
| HS code | 9025198080 |
| Country of Origin | US |
Product Variants
| Product | Model | Temp. Range | Rtd Type | Probe Material | Probe Size | Accuracy | Operating Temp. Range | For Application | For Liquids And Gels | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
S2-21 | -32° to +240° | 2 Wire 100 ohms | Copper | 1/4" | +/-0.6% @ 32°F | -32°F to +240°F | Air, Surfaces | No | €145.13 |
