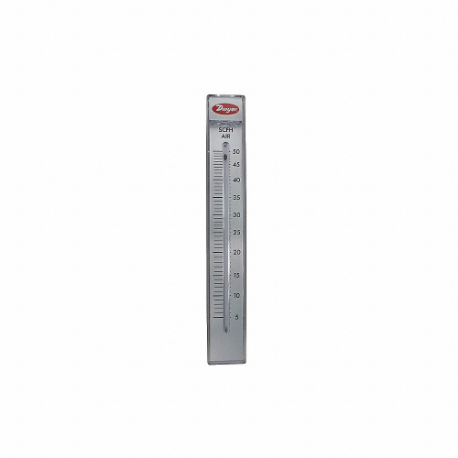

DWYER INSTRUMENTS RMC-144 Flowmeter, Variable Area, Panel Mount, Vertical, Gallons, 130 Deg F, FNPT
Item: CP4LPRModel: RMC-144Cross Ref: 25F421
7 In Stock
Ships within 2 days via
10.00% off
€322.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flowmeter |
| Accuracy | -2% to +2% |
| Body Material | Polycarbonate |
| Compatible Flow Material | Water |
| Compatible Media Types | Water |
| Connection Size | 1/2" |
| Connection Type | FNPT |
| Display Type | Not Applicable |
| Flow Range | 0.8-7 GPM |
| Flow Rate - Maximum | 7 GPM |
| Flow Rate - Minimum | 0.8 GPM |
| Flow Rate Range | 0.8-7 GPM |
| Flowmeter Type | Variable Area |
| For Pipe Size | 1/2" |
| Frequency - Maximum | Not Applicable |
| Frequency - Minimum | Not Applicable |
| Housing Material | Polycarbonate |
| Includes Flow Rate Adjustment Knob | Yes |
| Includes Pressure Gauge | Not Applicable |
| Max. Flow Rate | 7 GPM |
| Max. Media Temp. | 130°F |
| Max. Operating Pressure | 100 psi |
| Media Temp. Range | 130°F |
| Media Temperature - Minimum | Not Applicable |
| Media Type | Water |
| Min. Flow Rate | 0.8 GPM |
| Mounting Location | Panel Mount |
| Mounting Orientation | Vertical |
| O-ring Material | Buna N, Neoprene |
| Output Type | Not Applicable |
| Overall Height | 15 2/5" |
| Overall Length | 5" |
| Overall Width | 2.3" |
| Process Connection | 1/2" FNPT |
| Process Connection Size | 1/2" |
| Process Connection Type | FNPT |
| Product Type | Variable Area Flowmeter |
| Pulse Rate | Not Applicable |
| Rotor Material | Not Applicable |
| Shaft Material | Not Applicable |
| Unit Of Measure | Gal. |
| Viscosity - Maximum | Not Applicable |
| Wetted Material | Aluminum, Buna N, Glass, Nickel Copper Alloy, Neoprene, Polycarbonate, Stainless Steel, Tungsten Carbide |
| Wetted Material Grade | Grade K500 |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 39.12 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 5.84 |
| Country of Origin | US |
