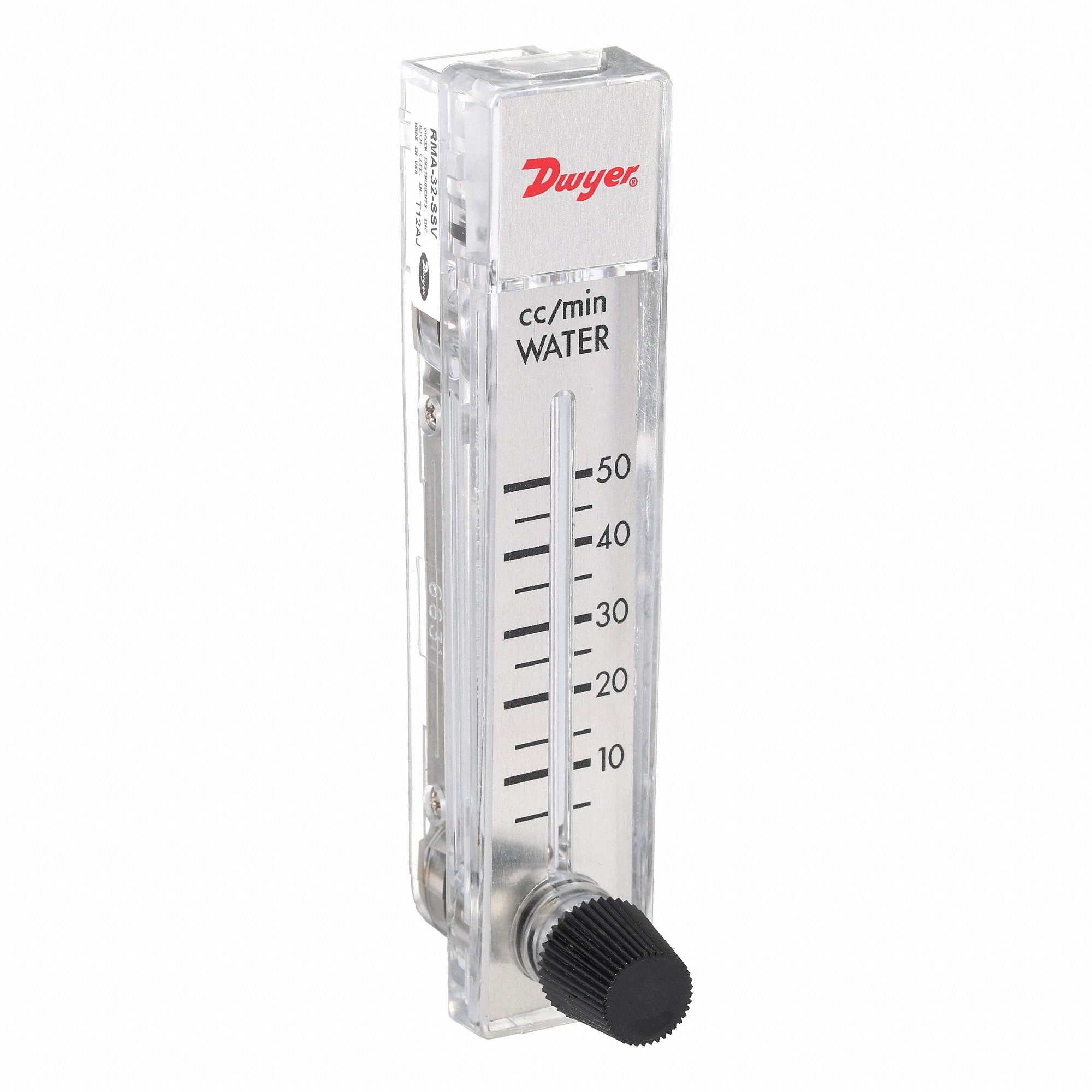

DWYER INSTRUMENTS RMA-32-SSV 5-50 Flowmeter
Item: CP4LNCModel: RMA-32-SSVCross Ref: 25F378
7 In Stock
Ships within 2 days via
5.00% off
€153.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flowmeter |
| Accuracy | 4% |
| Body Material | Polycarbonate |
| Compatible Flow Material | Water |
| Compatible Media Type | Water |
| Connection Size | 1/8" |
| Connection Type | FNPT |
| Display Type | Not Applicable |
| Flow | 5 cc/min. to 50 cc/min. |
| Flow Rate | 5 cc/min. to 50 cc/min. |
| Flowmeter Type | Variable Area |
| For Pipe Size | 1/8" |
| Housing Material | Polycarbonate |
| Included Flow Rate Adjustment Knob | Yes |
| Included Pressure Gauge | Not Applicable |
| Max. Flow Rate | 50 cc/min. |
| Max. Frequency | Not Applicable |
| Max. Media Temp. | 130°F |
| Max. Operating Pressure | 100 psi |
| Max. Viscosity | Not Applicable |
| Media Temp. | 130°F |
| Media Type | Water |
| Min. Flow Rate | 5 cc/min. |
| Min. Frequency | Not Applicable |
| Min. Media Temp. | Not Applicable |
| Mounting Location | Panel Mount |
| Mounting Orientation | Vertical |
| O-ring Material | Buna N, Neoprene |
| Output Type | Not Applicable |
| Overall Height | 4 4/5" |
| Overall Length | 2 3/5" |
| Overall Width | 1" |
| Process Connection | 1/8" FNPT |
| Process Connection Size | 1/8" |
| Process Connection Type | FNPT |
| Product Type | Variable Area Flowmeter |
| Pulse Rate | Not Applicable |
| Rotor Material | Not Applicable |
| Shaft Material | Not Applicable |
| Unit Of Measure | Gal., L |
| Wetted Material | Aluminum, Buna N, Glass, Nickel Copper Alloy, Neoprene, Polycarbonate, Stainless Steel, Tungsten Carbide |
| Wetted Material Grade | Grade K500 |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
