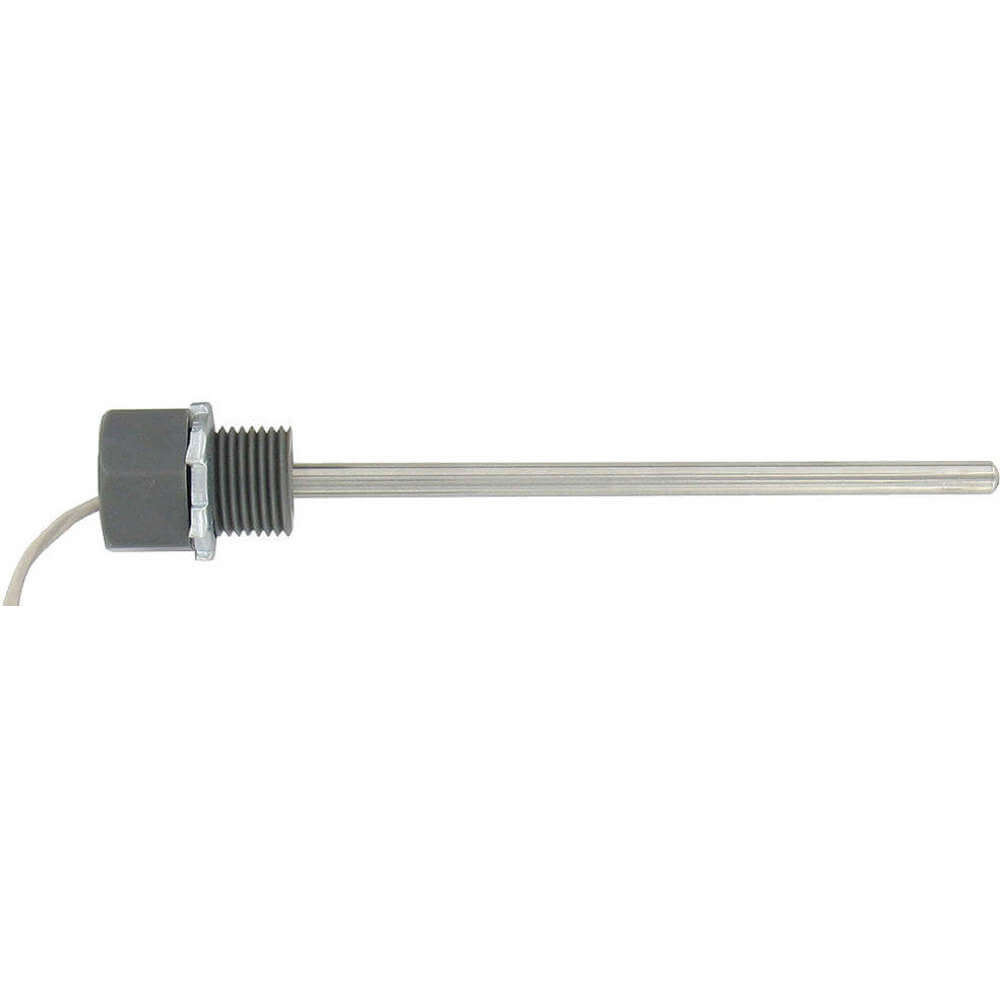

DWYER INSTRUMENTS I2-14062 Immersion Probe, 1000 Ohm, Balco, 6 Inch Length
Item: AE8FBYModel: I2-14062Cross Ref: 6CUG8
7 In Stock
Ships within 2 days via
10.00% off
€77.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Immersion Temperature Probe |
| Accuracy | ±0.1% At 32°F |
| Balco Rtd Accuracy | -/+ 1% @ 32°F |
| Cable Length | 6 ft. |
| Connection Type | Compression |
| Fitting Type | 1/4 In Npt Compression |
| For Air | Yes |
| For Application | Air, Gases, Liquids And Gels |
| For Gases | Yes |
| For Liquids And Gels | Yes |
| For Solids | No |
| For Surfaces | No |
| Grade | 304 |
| Head Connection | 1 1/2" Npt Condit Knock Out |
| Head Material | Plastic |
| Includes Signal Converter | No |
| Includes Thermowell | No |
| Insertion Length | 6" |
| Length | 6" |
| Manufacturer Warranty Length | 1 yr. |
| Maximum Temperature °c | 115.5°C |
| Maximum Temperature °f | 240°F |
| Minimum Temperature | -35.5°C |
| Minimum Temperature °f | -32°F |
| Nickel Rtd Accuracy | -/+ 5°F @ 32°F |
| Number Of Wires | 2 |
| Opening/diameter | 1/4" |
| Platinum Rtd Accuracy | -/+ 0.6% @ 32 Deg. F |
| Probe Bend | Straight |
| Probe Dia. | 1/4" |
| Probe Diameter | 0.25" |
| Probe Length | 6" |
| Probe Material | Stainless Steel |
| Probe Sheath Material | Grade 304 Stainless Steel |
| Probe Size | 1/4" x 6" |
| Probe Wire Length | 5 ft. |
| Process Connection | Compression Fitting |
| Process Mounting | Compression Fitting |
| Resistance | 1000 ohms |
| Rtd Type | 2 Wire 1000 ohms |
| Sensor Type | Rtd |
| Temp. Measuring Element | RTD, 1000 ohms Balco |
| Temp. Range | -32° to +240° , -35.5° to +115.5° |
| Temperature Range | -32°F to +240°F |
| Use | Air Or Liquids |
| Wire Length | 5 ft. |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 30.48 |
| HS code | 9025198080 |
| Country of Origin | US |
Product Variants
| Product | Model | Temp. Range | Temp. Measuring Element | Accuracy | Rtd Type | Probe Material | Probe Size | Connection Type | Process Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
I2-13062 | -32° to +240° | RTD, Ni 1000 ohms | +/-0.5°F | 2 Wire 100 ohms | Stainless Steel | 1/4" x 6" | Compression | Compression Fitting | €84.68 |
