DWYER INSTRUMENTS DPG-108 Digital Pressure Gauge, 0 to 500 PSI, 3 Inch Dial, 1/4 Inch MNPT Connection
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€453.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Digital Pressure Gauge |
| Accuracy | -0.25% to +0.25% |
| Adjustable Set Points | No |
| Ambient Operating Temperature Range | 0°F to 130°F |
| Application | Process Applications |
| Auto Shutoff | 60 min. , Yes |
| Backlit Screen | Yes |
| Battery Included | Yes |
| Battery Run Time | 2000 hrs. |
| Battery Type | (2) AAA Batteries |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Depth | 1.9" |
| Case Dia. | 3" |
| Case Material | Metal |
| Case Shape | Round |
| Compatible Process Media | Compatible Liquids And Combustible Gases |
| Connection Location | Bottom |
| Digit Height | 0.425" |
| Digital Gauge Display Units | Bar, In Hg, Kg/Sq Cm, Kpa, Oz./Sq. In., Psi |
| Display Range | 0 to 1018 in. hg, 0 to 1154 ft. W.C., 0 Bar to 34.48 Bar, 0 to 3448 kPa, 0 to 35.15 kg/sq. cm, 0 to 500 psi, 0 to 8000 oz./sq. in. |
| Display Screen Height | 0.425" |
| Display Screen Type | LCD |
| Display Screen Width | 0.234" |
| Display Type | Digital |
| Display Units | Bar, Ft Wc, In Hg, Kg/Sq Cm, Kpa, Oz./Sq. In., Psi |
| Features | Automatic Shutoff, Low Battery Indicator, Zero Adjustment |
| Gauge Accuracy Grade | Not Graded |
| Gauge Application | For Liquids & Gases |
| Gauge Case Material | Aluminum |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 3" |
| Gauge Primary Range Units | Psi |
| Gauge Wetted Parts | Stainless Steel |
| Hazardous Location Rating | Class I, Division 1, Groups A, B, C, D |
| Includes | Alkaline Batteries |
| Includes Mounting Hardware | No |
| Includes Rubber Boot | No |
| Ip/nema Rating | Ip66, Nema 4, Nema 4X |
| Keypad Material | Polycarbonate |
| Languages | English |
| Low-battery Indicator | Yes |
| Manufacturer Warranty Length | 1 yr. |
| Material Grade | Grade 316L |
| Memory Storage | No |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 3" |
| Non-sparking | No |
| Number Of Digits | 4 |
| Number Of Display Digits | 4 |
| Operating Range | 500 psi |
| Panel-mountable | No |
| Peak Hold | Yes |
| Power Source | Battery |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Range | 0 psi to 500 psi |
| Pressure Range Type | Pressure |
| Primary Display Range | 0 to 500 |
| Primary Display Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | 0°F to 130°F |
| Product Datasheet | dwyer-instruments-dpg-005.pdf |
| Range | 500 psi |
| Resolution | Dependent On Range |
| Sensor Material | 316L Stainless Steel |
| Series | DPG Series |
| Socket Material | Stainless Steel |
| Weatherproof | No |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.33 |
| Country of Origin | USA |
Product Details:
The Dwyer DPG Series Digital Pressure Gages has a high ±0.25% or ±0.5% full-scale accuracy. The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. Series DPG is battery powered and has an auto-shut off to conserve battery life. Battery life, on average, will last 2000 hours. A 4 button key pad allows easy access to features without the need to work through complex menus or difficult key combinations. These features include backlight, peak and valley, tare or auto zero and conversion of the pressure units.
Documentation:
Product Variants
| Product | Model | Pressure Range Type | Peak Hold | Case Color | Accuracy | Sensor Material | Case Material | Case Depth | Process Temperature Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DPG-000 | Compound | Yes | Red | -0.5% to +0.5% | 316L Stainless Steel | Plastic | 1.9" | 0°F to 130°F | €434.28 | |
 |

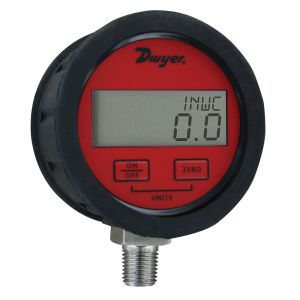

DPGAB-07 | Pressure | No | Red | -0.5% to +0.5% | Silicone | Plastic | 1.781" | 30°F to 120°F | €299.48 | |
|
DPG-109 | Pressure | Yes | Black | -0.25% to +0.25% | 316L Stainless Steel | Metal | 1.9" | 0°F to 130°F | €512.52 | |
|
DPG-005 | Pressure | Yes | Red | -0.5% to +0.5% | 316L Stainless Steel | Plastic | 1.9" | 0°F to 130°F | €434.28 | |
|
DPG-020 | Compound | Yes | Red | -0.5% to +0.5% | 316L Stainless Steel | Plastic | 1.9" | 0°F to 130°F | €434.28 |
