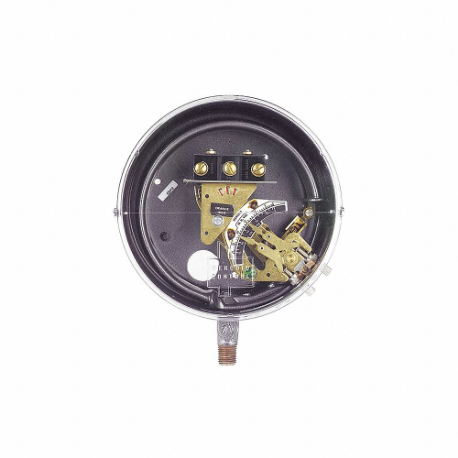

DWYER INSTRUMENTS DA-31-153-9 Pressure Switch Brass Range10-300Psig
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pressure Switch |
| Application | Air Compressor Control, Pump Control |
| Contact Form | SPDT |
| Electrical Connection | Screw Terminal |
| Electrical Connection Type | Screw Terminal |
| Electrical Rating | 2A @ 240V AC/Dc, 4A @ 120V |
| Enclosure Rating | EXP, GP, WP |
| For Pressure Type | Differential |
| Housing Type | Conduit Box |
| Max. Operating Temp. | 180°F |
| Max. Pressure | 300 psi |
| Min. Deadband | 12 psig |
| Mounting Hole Center To Center Distance | 7" |
| Mounting Hole Dia. | 7/16" |
| Mounting Orientation | Vertical |
| No. Of Switches | 1 |
| Overall Depth | 9 1/8" |
| Overall Height | 3 1/8" |
| Overall Width | 8 3/8" |
| Pressure | 5 psig to 150 psig |
| Pressure Set Point | 10 psi to 300 psi |
| Product Type | Pressure Switch |
| Reset Type | Manual Reset |
| Sample Line Connection | 1/4" |
| Sample Line Connection Size | 1/4", 1/2" |
| Sample Line Connection Type | NPT |
| Sample Line Connector Type | NPT |
| Switch Voltage | 120/240V AC/DC |
| Switching Differential | 10 psi |
| Type Of Set Point | Adjustable |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 19.69 |
| Ship width (cm) | 13.65 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Pressure | Overall Depth | Pressure | Pressure Set Point | Sample Line Connection Size | For Pressure Type | Mounting Hole Dia. | Contact Form | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

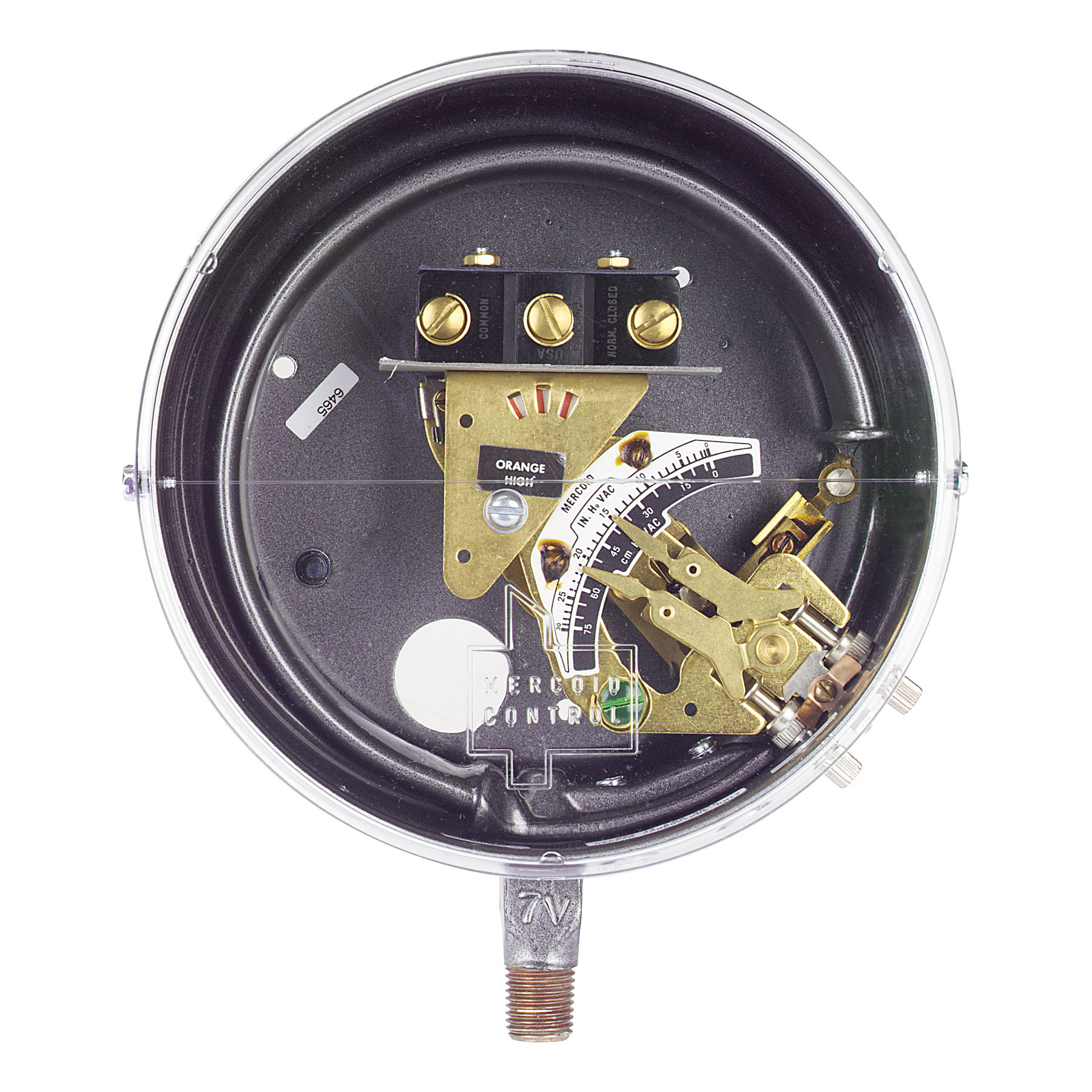

DA-7031-153-6 | 100 psi | 3 7/8" | 5 psi to 100 psi | 5 psi to 100 psi | 1/4", 1/2" | Differential | 7/16" | SPDT | €1,346.53 | |
|

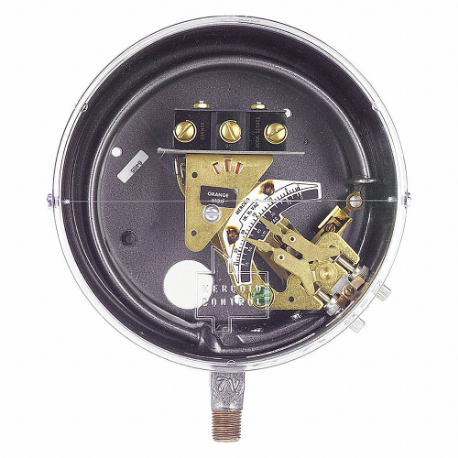

DA-31-2-7 | 6 psig | 3 7/8" | 5 psi to 150 psi | 5 psig to 150 psig | 1/4", 1/2" | Differential | 1/2" | SPST | €1,264.48 | |
 |
DA-7031-153-9 | 300 psig | 2 1/4" | 10 psi to 300 psi | 10 psig to 300 psig | 1/4" | Positive | 7/16" | SPDT | €1,535.32 | |
 |

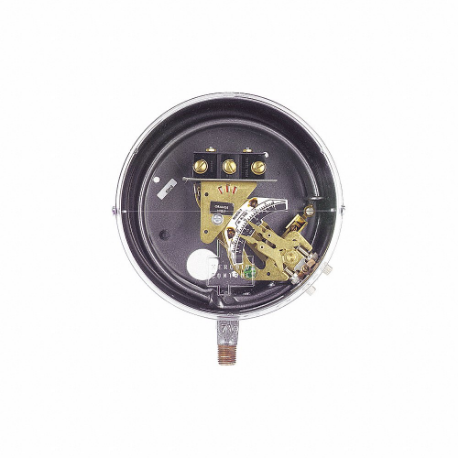

DA-7031-153-7 | 150 psi | 8 3/8" | 5 psi to 150 psi | 5 psi to 150 psi | 1/4", 1/2" | Differential | 7/16" | SPDT | €1,330.71 | |
 |
DA-31-153-7 | 150 psig | 1 3/4" | 5 psi to 150 psi | 5 psig to 150 psig | 1/4", 1/2" | Differential | 1/2" | SPST | - | RFQ
|
|
DA-7031-153-8 | 200 psi | 8 3/8" | 10 psi to 200 psi | 10 psi to 200 psi | 1/4", 1/2" | Differential | 7/16" | SPDT | €1,475.07 |
