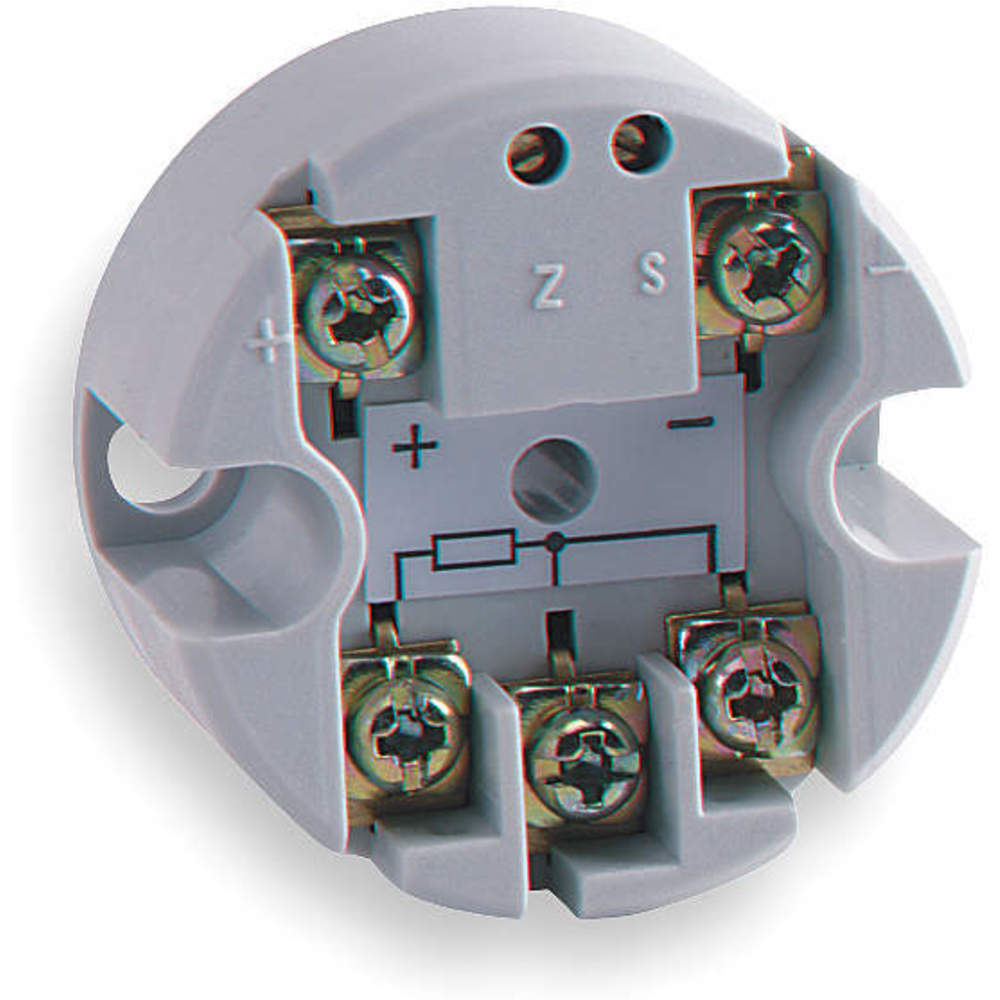

DWYER INSTRUMENTS 651A-40 Temperature Transmitter, 32 To 752 Deg F
Item: AC2CLUModel: 651A-40Cross Ref: 2HMU5
7 In Stock
Ships within 2 days via
10.00% off
€329.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Temperature Transmitter |
| Electrical Connection | Terminal Board |
| Electrical Connections | Screw Terminals |
| Features | Standard Temperature Sensor Head Enclosure Mounting, Various Preset Ranges Available |
| Impedance | 700 Ohm @ 24V DC |
| Input Type | Rtd |
| Maximum Sensed Temperature | 752°F |
| Minimum Sensed Temperature | 32°F |
| Mounting Type | Surface |
| Output | 4-20 mA |
| Output Amps | 4.0 mA - 20.0 mA |
| Output Amps | 4-20 mA |
| Overall Diameter | 1.66" |
| Power Required | 10-32V DC |
| Response Time | 200 ms |
| Sensing Element Type | PT100 RTD |
| Sensor Type | RTD |
| Series | 651 Series |
| Storage Temperature Range | 160°F |
| Temp. Range | +32°F to +752°F |
| Temperature Accuracy | +/-0.2°C Plus 0.2% Reading |
| Temperature Range | 32°F to 752°F |
| Transmitter Type | Head Mount Compact Temperature Transmitter |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 12.7 |
| HS code | 9025198080 |
| Country of Origin | GB |
Product Variants
| Model | Sensing Element Type | Temp. Range | Response Time | Sensor Type | Maximum Sensed Temperature | Output Amps | Electrical Connection | Power Required | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 651A-10 | PT100 RTD | +32°F to +212°F | 200 ms | RTD | 212°F | 4-20 mA | Terminal Board | 10-32V DC | €357.45 | |
| 651A-20 | PT100 RTD | +32°F to +392°F | 200 ms | RTD | 392°F | 4-20 mA | Terminal Board | 10-32V DC | €356.26 | |
| 651TC-01 | Type K Thermocouple | +32°F to +212°F | 2 ms | Type K | 212°F | 4-20 mA | Terminal Board | 10-32V DC | €393.62 | |
| 651TC-02 | Type K Thermocouple | +32°F to +392°F | 2 ms | Type K | 392°F | 4-20 mA | Terminal Board | 10-32V DC | €393.46 | |
| 651TC-04 | Type K Thermocouple | +32°F to +752°F | 2 ms | Type K | 752°F | 4-20 mA | Terminal Board | 10-32V DC | €399.60 | |
| 651TC-06 | Type K Thermocouple | 32°F to 1112°F | 2 ms | Type K | 1112°F | 4-20 mA | Terminal Board | 10-32V DC | €399.77 |
