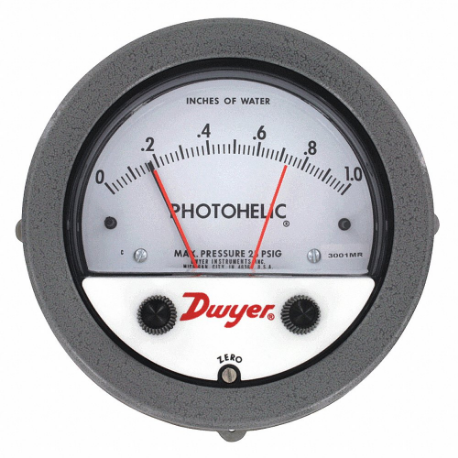

DWYER INSTRUMENTS 3001MR Pressure Switch/Gage, Range 0-1 Wc
Ships within 2 days via
Payment
Product Specifications:
| Item | Pressure Switch |
| Accuracy | -2% to +2% |
| Accuracy Details | +/-2% FS |
| Adjustable Set Points | Yes |
| Ambient Operating Temperature Range | 20°F to 120°F |
| Application | Air Conditioning Systems, Clean Rooms, Pneumatic Conveying |
| Case Depth | 2.5" |
| Case Diameter | 5" |
| Compatible Process Media | Air, Non-Combustible Compatible Gases |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | Yes |
| Maximum Working Static Pressure | 25 psig |
| Mounting Orientation | Upright Only |
| Mounting Type | Flush Mount, Surface Mount |
| Nominal Dial Size | 4" |
| Operating Temp. Range | +20°F to +120°F |
| Panel Mount Characteristics | (4) 6-32 Holes Equally Spaced On A 5-1/8" Dia Bolt Circle |
| Power Requirement | 1A At 30V DC |
| Power Source | 24V DC |
| Pressure Gauge Type | Differential Pressure Gauge With Switch |
| Pressure Range | 0 in. wc to 1 in. wc |
| Process Connection Gender | Female |
| Process Connection Location | Back, Side |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Relay Type | SPDT |
| Sensor Type | Diaphragm |
| Series | 3000MR Series |
| Switch Contact Type | SPDT |
| Switch Electrical Requirements | 0.3A @ 110V DC/0.5A @ 125V AC, 1A @ 30V DC |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 6.35 |
| Country of Origin | US |
Product Details:

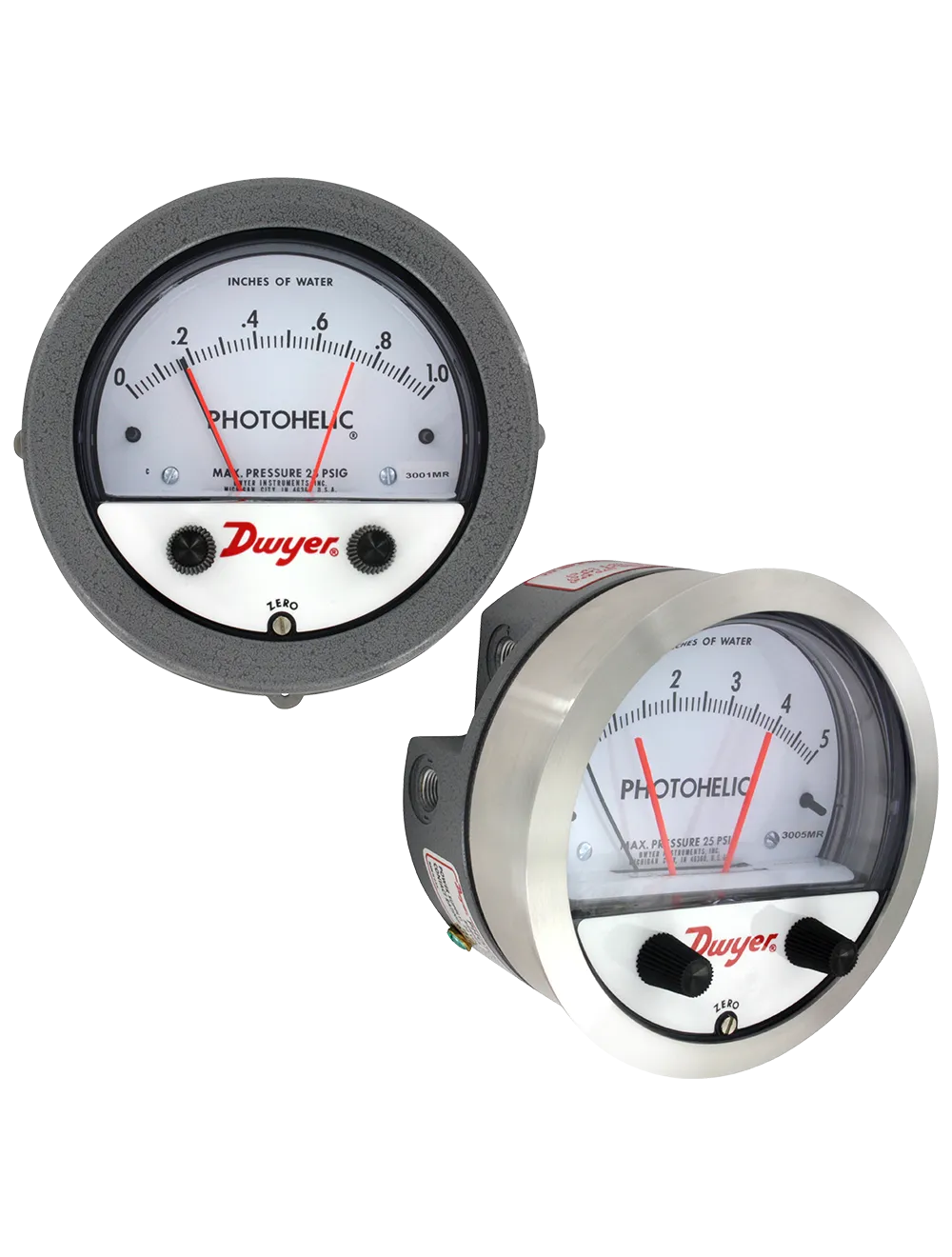

The Dwyer 3000MR Series Photohelic® differential pressure switch/gauge combines two versatile, precise pressure switches with a time-proven Magnehelic® pressure gauge. The gauge reading is unaffected by switch operation. External knobs are used to adjust the two DPDT switch set points. Switch set points (indicated by red pointers) and system pressure are fully visible at all times. Ranges are available from 0in to 0.25in W.C. up to 10'' W.C. full scale. The 3000MR Series may be ordered with the switch assembly remote mounted to facilitate panel mounting.
