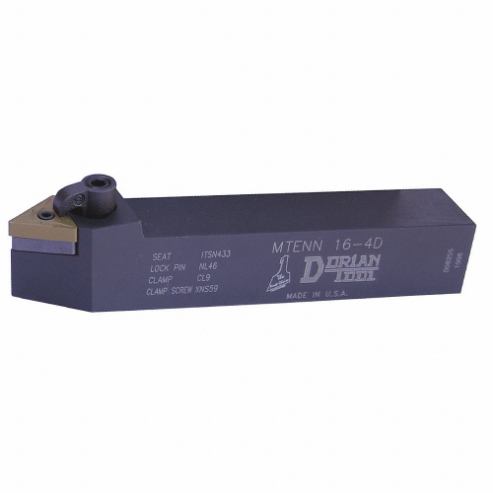

DORIAN MTENN16-4D Turning Toolholder Tnmg
Item: AD4LZWModel: MTENN16-4DCross Ref: 41T742
7 In Stock
Ships within 2 days via
10.00% off
€108.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Toolholder |
| Ansi Code | Mtenn164D |
| Ansi Number | MTENN16-4D |
| Clamp | CL-9 |
| Clamp Screw | XNS-59 |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Height | 1" |
| Features | Hardened To 44 Hrc |
| Head Length | 1 1/2" |
| Inscribed Circle | 1/2" |
| Insert Clearance Angle | 0° |
| Insert Holding Type | Clamp And Lock Pin |
| Insert Inscribed Circle | 1/2" |
| Insert Screw | NL-46 |
| Insert Shape | Triangle |
| Insert Size | 432 |
| Insert Style | Tnm |
| Iso Number | MTENN164D |
| Lead Angle | 30° |
| Mounting Style | Multi Lock |
| Overall Length | 6" |
| Rake | Negative |
| Rake Angle | 10 Degrees |
| Rake Angle | 10° |
| Shank | Square |
| Shank Height | 1" |
| Shank Material | Alloy Steel |
| Shank Width | 1" |
| Shim | ITSN-433 |
| Side Cutting Edge Angle | 30° |
| Style | MTENN16-4D |
| Toolholder Style | Mten |
| Type | Tnmg Holder |
Shipping Info:
| Ship weight (kg) | 0.73 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 3.81 |
| HS code | 7318190000 |
| Country of Origin | US |
Product Variants
| Model | Cutting Direction | Overall Length | Insert Holding Type | Type | Shank Height | Shank Width | Rake Angle | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MCKNR12-4B | Right Hand | 4 1/2" | Clamp And Lock Pin | CNMG Holder | 3/4" | 3/4" | 7° | MCKNR12-4B | €135.92 | |
| MCKNR16-4C | Right Hand | 5" | Clamp And Lock Pin | CNMG Holder | 1" | 1" | 7° | MCKNR16-4C | €150.62 | |
| MCKNR16-4D | Right Hand | 6" | Clamp And Lock Pin | CNMG Holder | 1" | 1" | 7° | MCKNR16-4D | €150.62 | |
| MCKNL16-4D | Left Hand | 6" | - | CNMG Holder | 1" | 1" | 7° | MCKNL16-4D | €150.62 | |
| MCKNR20-4D | Right Hand | 6" | Clamp And Lock Pin | CNMG Holder | 1 1/4" | 1 1/4" | 7° | MCKNR20-4D | €159.20 | |
| MCKNL20-4D | Left Hand | 6" | - | CNMG Holder | 1 1/4" | 1 1/4" | 7° | MCKNL20-4D | €165.44 | |
| MCKNR20-5D | Right Hand | 6" | Clamp And Lock Pin | CNMG Holder | 1 1/4" | 1 1/4" | 7° | MCKNR20-5D | €198.55 |
