FUJI ELECTRIC Regenerative Blowers
Fuji Electric regenerative blowers are employed to generate high-pressure, low-flow air streams for applications requiring efficient aeration, ventilation and gas circulation. They are ideal for vacuum packaging, soil remediation and medical equipment.
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q| Style | Model | Phase | Max. Flow Rate | Inlet Size | Outlet Size | Max. Operating Pressure | Voltage | Outlet Type | Inlet Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | FDC-010P-5T | 1 | 478.2 CFM | 100 mm | 151 mm | 8.8 in. wc | 120/240V AC | Flange | Flange | €1,806.51 | |
| A | FDC-005P-5T | 1 | 220 CFM | 100 mm | 113 mm | 5.6 in. wc | 120/240V AC | Flange | Flange | €1,121.64 | |
| B | VFB175P-5T | 1 | 105 CFM | 1 1/2" | 1 1/2" | 71.8 in. wc | 115/230V AC | NPT | NPT | €1,317.36 | |
| A | FDC-020P-2T | 1 | 594.3 CFM | 127 mm | 152 mm | 12.6 in. wc | 230V AC | Flange | Flange | €2,146.22 | |
| A | FDC-010A-7W | 3 | 562.5 CFM | 100 mm | 151 mm | 8.9 in. wc | 230/460V AC | Flange | Flange | €1,806.51 | |

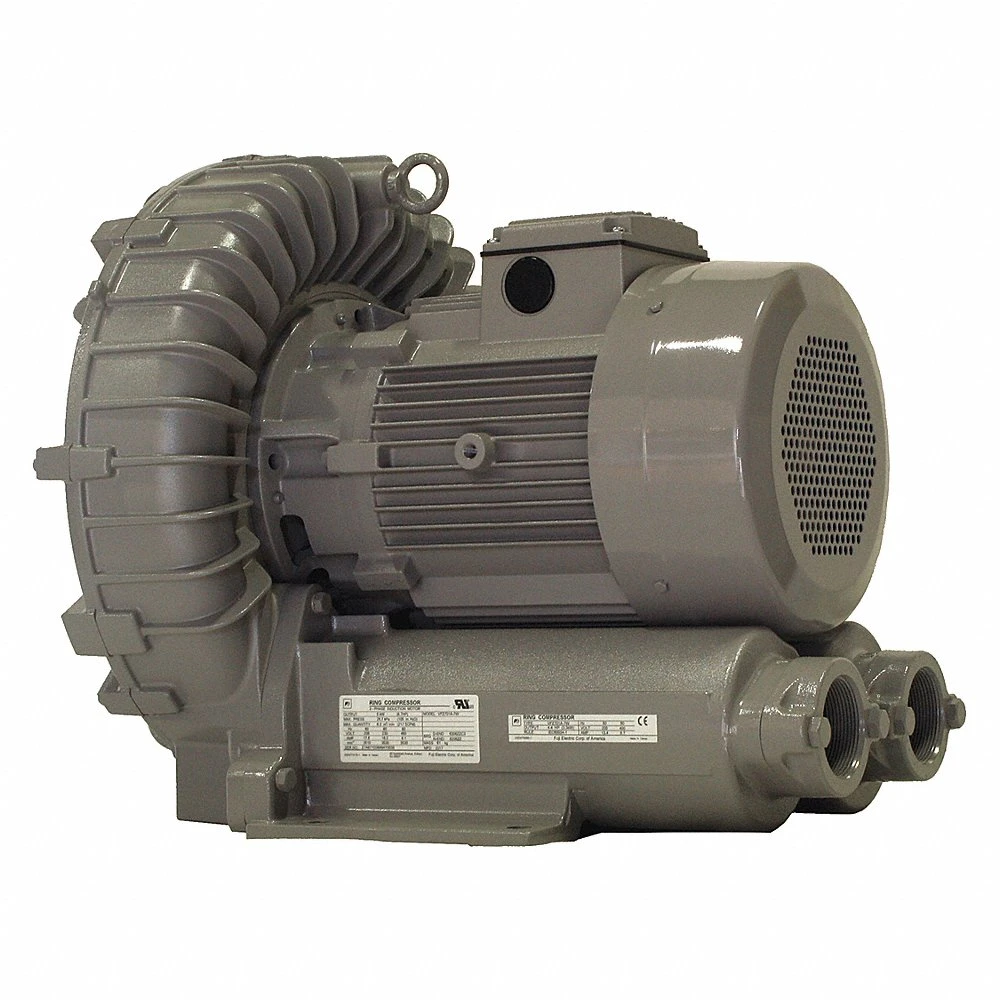

| C | VFZ701A-7W | 3 | 217 CFM | 2" | 2" | 129.6 in. wc | 230/460V AC | NPT | NPT | €2,909.43 | |

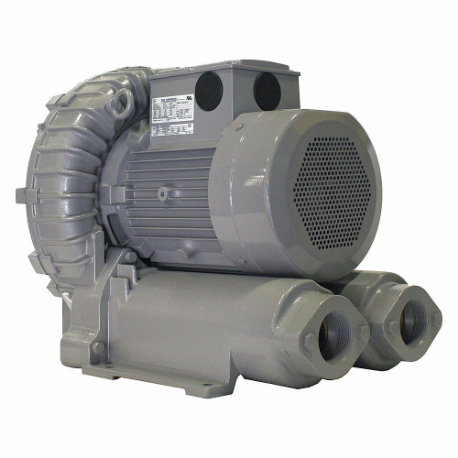

| D | VFZ901A-7W | 3 | 574 CFM | 3" | 3" | 138.5 in. wc | - | NPT | - | €4,567.48 | |
| D | VFZ801A-7W | 3 | 379 CFM | 2 1/2" | 2 1/2" | 134.6 in. wc | 230/460V AC | NPT | NPT | €4,926.01 | |

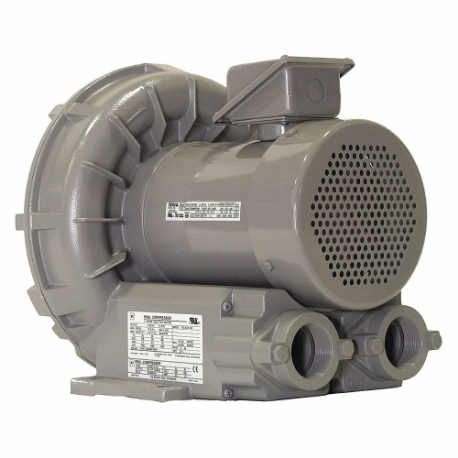

| E | VFZ401A-7W | 3 | 89 CFM | 1 1/2" | 1 1/2" | 59.8 in. wc | 230/460V AC | NPT | NPT | €856.40 | |
| F | RD6-L | 3 | 750 CFM | 4" | 4" | 10.9 in. wc | 230V AC | Flange | - | €2,337.00 | |
| F | RD6-H | 3 | 750 CFM | 4" | 4" | 10.9 in. wc | 460V AC | Flange | Flange | €2,337.00 | |
| G | VFB3000-7W | 3 | 791.06 CFM | 4" | 4" | 139 in. wc | 220/275/380/480V AC | NPT | MPT | €12,523.65 | |
| G | VFB2000-7W | 3 | 755 CFM | 4" | 4" | 139 in. wc | 230/460V AC | NPT | MPT | €11,263.09 | |
| A | FDC-050A-7W | 3 | 1860.4 CFM | 127 mm | 192 mm | 18.5 in. wc | 230/460V AC | Flange | Flange | €4,028.25 | |
| A | FDC-020A-7W | 3 | 594.3 CFM | 127 mm | 152 mm | 13 in. wc | 230/460V AC | Flange | Flange | €2,146.22 | |
| H | VFT65-2 | 3 | 2189 CFM | 6 1/4" | 5 1/2" | 32.6 in. wc | 208-230/460V AC | Flange | Flange | - | RFQ
|
| I | VFT71-2 | 3 | 2824 CFM | 6 1/4" | 6 1/4" | 41.8 in. wc | 208-230/460V AC | Flange | Flange | - | RFQ
|
| A | FDC-005A-7W | 3 | 254.3 CFM | 100 mm | 113 mm | 5.6 in. wc | 230/460V AC | Flange | Flange | €1,121.64 | |

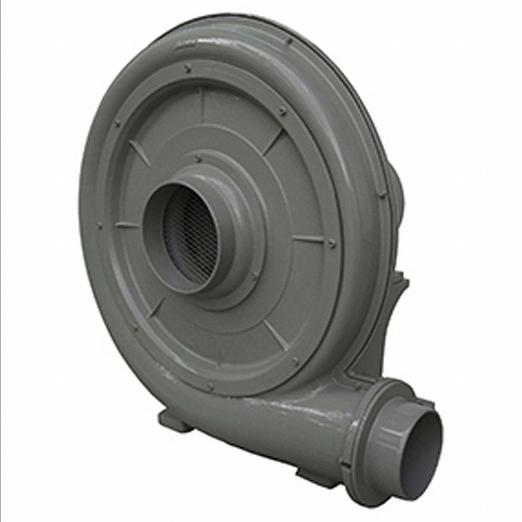

| J | FDC-200A-7W | 3 | 5850 CFM | 12" | 12" | 30 in. wc | 230/460V AC | Flange | Flange | €12,944.64 | |
| J | FDC-150A-7W | 3 | 2930 CFM | 8" | 8" | 32 in. wc | 230/460V AC | Flange | Flange | €10,603.09 | |
| J | FDC-100A-7W | 3 | 1870 CFM | 8" | 8" | 28.5 in. wc | 230/460V AC | Flange | Flange | €7,075.04 | |
| J | FDC-075A-7W | 3 | 1870 CFM | 6" | 6" | 22.5 in. wc | 230/460V AC | Flange | Flange | €6,321.15 | |

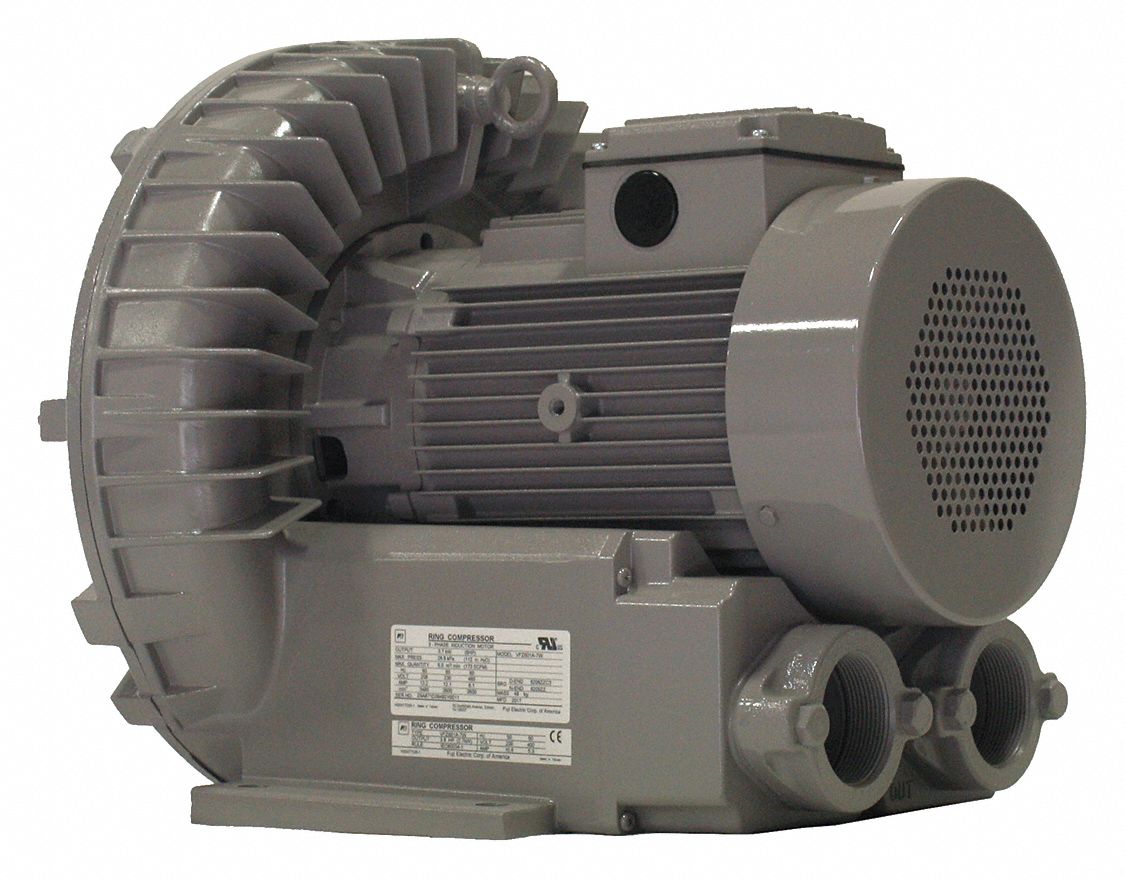

| K | VFZ601A-7W | 3 | 173 CFM | 2" | 2 | 133.5 in. wc | 230/460V AC | NPT | NPT | €2,985.15 | |

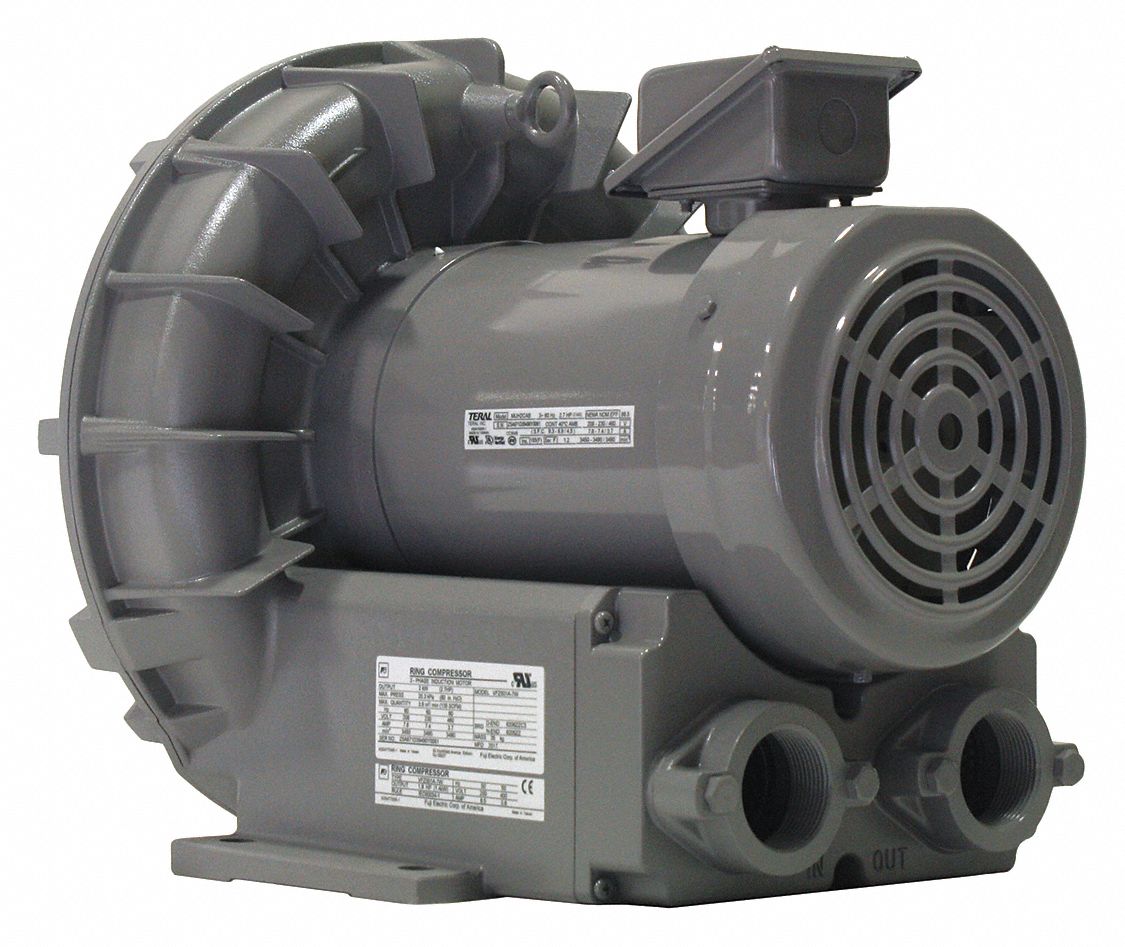

| L | VFZ501A-7W | 3 | 135 CFM | 1 1/2" | 1 1/2" | 84.7 in. wc | 230/460V AC | NPT | NPT | €1,893.53 | |
| M | VFZ901A-5W | 3 | 574 CFM | 3" | 3" | 138.5 in. wc | 575V AC | NPT | NPT | €5,863.87 | |
| M | VFZ801A-5W | 3 | 379 CFM | 2" | 2 1/2" | 134.6 in. wc | 575V AC | NPT | NPT | €4,138.90 | |
| N | VFZ701A-5W | 3 | 217 CFM | 2" | 2" | 129.6 in. wc | 575V AC | NPT | NPT | €2,901.04 | |
| O | VFZ601A-5W | 3 | 173 CFM | 2" | 2" | 133.5 in. wc | 575V AC | NPT | NPT | €2,147.25 | |
| P | VFZ501A-5W | 3 | 135 CFM | 1 1/2" | 1 1/2" | - | 575V | - | - | €1,388.29 | |
| Q | VFZ401A-5W | 3 | 89 CFM | 1 1/2" | 1 1/2" | 59.8 in. wc | 575V AC | NPT | NPT | €1,135.85 | |
| A | FDC-030A-7W | 3 | 1111.8 CFM | 127 mm | 192 mm | 13 in. wc | 230/460V AC | Flange | Flange | €2,879.63 |
Working Mechanism
- They utilise a non-positive displacement principle, relying on the regenerative or side-channel effect. The blower's impeller, housed eccentrically in the aluminium alloy casing, generates a spinning motion.
- As the impeller blades pass the inlet port, they draw in air or gas and the rotating motion causes the creation of pressure differences within the channels. This regenerative action compresses the fluid and propels it towards the outlet.
- The continuous, cyclical process results in a steady flow of air or gas, making regenerative blowers suitable for applications requiring consistent and pulsation-free performance, such as aeration in wastewater treatment or pneumatic conveying systems.
Features
- These Fuji Electric regenerative blowers feature a robust aluminium housing, ensuring durability and reliability.
- They come with thermal protection and a totally enclosed ventilation cooling motor housing, ensuring optimal operating conditions and extending the equipment's lifespan.
- These regenerative blowers have a total load amperage of 60 / 30A, providing efficient power utilisation for demanding applications.
Frequently Asked Questions
How do regenerative blowers differ from other types of blowers?
Regenerative blowers operate on a non-positive displacement principle, providing a continuous, pulsation-free flow with high efficiency and low maintenance compared to positive displacement blowers.
How do I select the right Fuji Electric regenerative blower for my application?
Consider factors such as required flow rate, pressure or vacuum levels, and the specific application's environmental conditions when selecting a regenerative blower.
What is the maximum operating temperature of these blowers?
Fuji Electric regenerative blowers can operate up to 104 degrees F.
