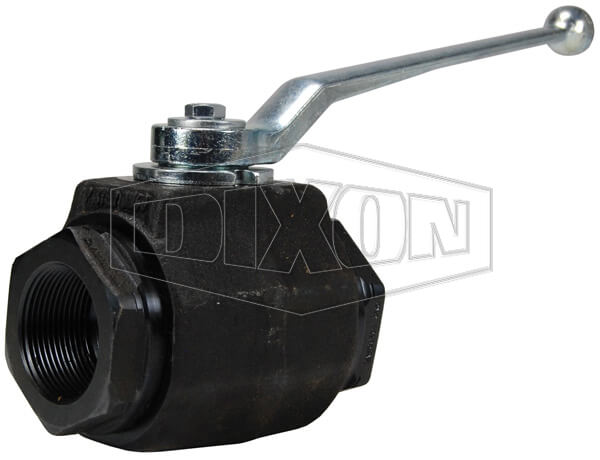

DIXON HPBV34 Hi-Pressure Full-Bore Ball Valve, 3/4 Inch FNPTF, FKM/FPM O-Ring
Item: AM8KXQModel: HPBV34
7 In Stock
Ships within 2 days via
€141.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| Ball Valve Product Group | Manual |
| Body Material | Carbon Steel |
| End Configuration Size | 3/4" x 3/4" |
| End Configuration Type | Female NPTF x Female NPTF |
| Length | 3 53/64" |
| Material | Carbon Steel |
| Nominal Size | 3/4" |
| Pressure Range | Above 5000 psi |
| Pressure Rating | 6000 psi |
| Product Datasheet | dixon-hpbv10.pdf |
| Product Type | Ball Valve |
| Seal Material | FKM, FPM , FKM/FPM |
| Seal Type | O Ring |
| Seat Material | POM |
| Shape | Straight |
| Stem Type | Blowout Proof |
| Temp. Range | -20°F to +215°F |
| Thread Gender | Female |
| Thread Size | 20 mm |
| Thread Type | NPTF |
| Trim Material | Polyacetal |
| Width | 1 15/16" |
| Working Pressure | 6000 psi |
Shipping Info:
| Ship weight (kg) | 1.53 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.52 |
| Ship width (cm) | 0.16 |
| Country of Origin | DE |
Documentation:
Product Variants
| Model | Body Material | Seal Material | Thread Type | Material | Pressure Rating | Working Pressure | Nominal Size | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HPBV10 | Carbon Steel | FKM/FPM | NPTF | Carbon Steel | 6000 psi | 6000 psi | 1" | - | €168.99 | |
| HPBV12 | Carbon Steel | FKM/FPM | NPTF | Carbon Steel | 7350 psi | 7350 psi | 1/2" | - | €67.93 | |
| HPBV25 | Carbon Steel | FKM/FPM | NPTF | Carbon Steel | 7350 psi | 7350 psi | 1/4" | - | €58.79 | |
| HPBV125 | Carbon Steel | FKM/FPM | NPTF | Carbon Steel | 6000 psi | 6000 psi | 1 1/4" | - | €382.68 | |
| HPBV150 | Carbon Steel | FKM/FPM | NPTF | Carbon Steel | 6000 psi | 6000 psi | 1 1/2" | - | €490.92 | |
| HPBV38 | Carbon Steel | FKM/FPM | NPTF | Carbon Steel | 7350 psi | 7350 psi | 3/8" | - | €63.51 | |
| HPBV200 | Carbon Steel | FKM/FPM | NPTF | Carbon Steel | 6000 psi | 6000 psi | 2" | - | €637.12 |
