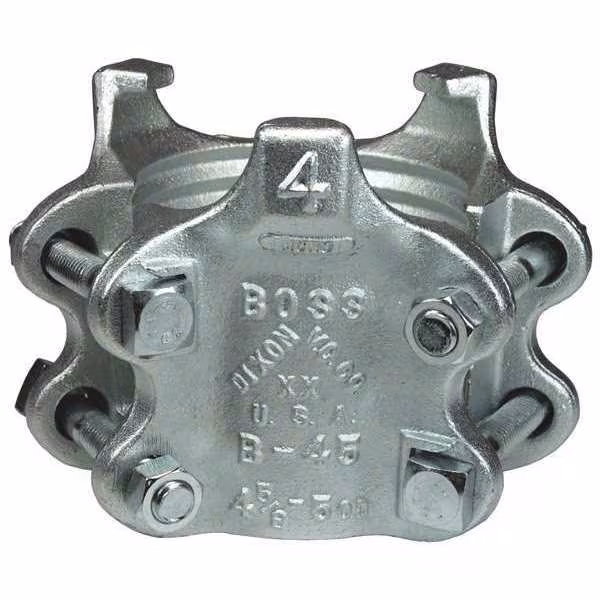

DIXON B45 Boss Clamp for Hose ID 4 Inch and Hose OD from 4-40/64 to 5 Inch
Get it by Monday, Aug 17
€223.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Application | Bolts In Boss Clamps Are Designed To Bend As They Are Tightened. This Allows The Clamp To Conform To The Hose Outside Diameter. Always Tighten Bolts To Their Specified Torque Valu. Periodic Re-Tightening Of Bolts Is Required Due To "cold Flow" Phenomenon Present In All Rubber Hoses. Boss Clamps Are For Single Use Only! Once Removed They Are To Be Discarded. |
| Clamp Band Material | Iron |
| Feature | 6-Bolt Type With 3 Gripping Fingers And 3 Clamp Sections |
| Finish | Zinc Plated |
| For Min. Hose Outside Dia. | 4 5/8" |
| Hose Inside Dia. | 4" |
| Hose Inside Dia. To | 5" |
| Hose Outside Dia. | 4 5/8" |
| Hose Outside Dia. From | 4 40/64" , 4 5/8" |
| Hose Outside Dia. To | 5" |
| Material | Iron , Zinc Plated Iron |
| Min. Clamp Inside Dia. | 4.625 |
| No. Of Bolts | 6 |
| Product Datasheet | dixon-968.pdf |
| Series | Boss Series |
| Steam Service Temp. Rating | 450°F |
| Thickness | 6 7/32" |
| Torque | 150 lbs.-ft. |
| Width | 9 1/32" |
Shipping Info:
| Ship weight (kg) | 6.82 |
| Ship height (cm) | 22.94 |
| Ship length (cm) | 22.94 |
| Ship width (cm) | 22.78 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Material | Torque | Hose Outside Dia. To | Hose Outside Dia. From | Hose Inside Dia. | Hose Inside Dia. To | Max. Clamp Inside Dia. | For Min. Hose Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BS39 | Iron | 150 lbs.-ft. | 4 52/64" | 4 16/64" | 3" | 4 13/16" | 4 13/16" | - | €235.39 | |
|
BU49 | Iron | 200 lbs.-ft. | 5 38/64" | 5 16/64" | 4" | 5 19/32" | 5 19/32" | 5 1/4" | €395.67 | |
|
B49 | Iron | 200 lbs.-ft. | 5 60/64" | 5 34/64" | 4" | 5 15/16" | 5 15/16" | - | €433.46 | |
 |
750 | Iron | 200 lbs.-ft. | 7 24/64" | 6 56/64" | 6" | 7 3/8" | 7 3/8" | - | €420.06 | |
|
850 | Iron | 200 lbs.-ft. | 8" | 7 32/64" | 6" | 8" | - | - | €389.76 |
