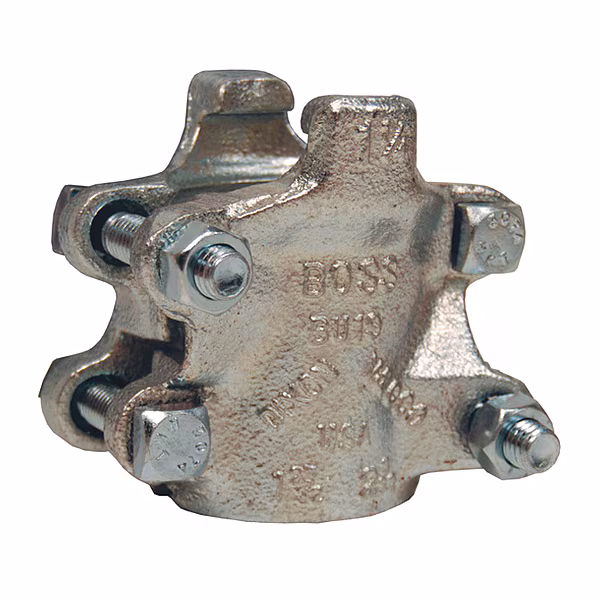

DIXON B29 Clamp 4 Bolt Type, 2 Gripping Fingers
Item: AK2RLCModel: B29
7 In Stock
2 48/64"
2"
Zinc Plated Iron
Ships within 2 days via
€64.82 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Application | Bolts In Boss Clamps Are Designed To Bend As They Are Tightened. This Allows The Clamp To Conform To The Hose Outside Diameter. Always Tighten Bolts To Their Specified Torque Valu. Periodic Re-Tightening Of Bolts Is Required Due To "cold Flow" Phenomenon Present In All Rubber Hoses. Boss Clamps Are For Single Use Only! Once Removed They Are To Be Discarded. |
| Clamp Band Material | Iron |
| Feature | 4-Bolt Type Clamp With 2 Gripping Fingers And 2 Clamp Sections |
| Finish | Zinc Plated |
| Finish, Coating | Zinc Plated |
| For Max. Hose Outside Dia. | 3 1/16" |
| For Min. Hose Outside Dia. | 2 3/4" |
| Hose Inside Dia. | 2" |
| Hose Inside Dia. To | 3 1/16" |
| Hose Outside Dia. | 2 3/4" |
| Hose Outside Dia. From | 2 3/4" , 2 48/64" |
| Hose Outside Dia. To | 3 1/16" , 3 4/64" |
| Material | Iron , Zinc Plated Iron |
| Material Grade | Grade 32510 |
| Max. Clamp Inside Dia. | 3 1/16" |
| Min. Clamp Inside Dia. | 2.75 |
| No. Of Bolts | 4 |
| Product Datasheet | dixon-bbu9.pdf |
| Series | Boss Series |
| Torque | 60 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 1.94 |
| Ship length (cm) | 12.85 |
| Ship width (cm) | 10.95 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Material | Torque | Hose Outside Dia. To | Hose Outside Dia. From | Hose Inside Dia. | Hose Inside Dia. To | Max. Clamp Inside Dia. | Hose Out Side | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BU14 | Iron | 21 lbs.-ft. | 1 46/64" | 1 34/64" | 1" | 1 23/32" | 1 23/32" | - | €38.34 | |
| B19 | Iron | 40 lbs.-ft. | 2 24/64" | 2 8/64" | 1 1/4" | 2 3/8" | 2 3/8" | - | €50.79 | |
| BU24 | Iron | 40 lbs.-ft. | 2 24/64" | 2 12/64" | 1 1/2" | 2 3/8" | 2 3/8" | - | €56.31 | |
| BU29 | Iron | 60 lbs.-ft. | 2 50/64" | 2 32/64" | 2" | 2 25/32" | 2 25/32" | - | €56.81 | |
| B30 | Iron | 60 lbs.-ft. | 3 28/64" | 3 6/64" | 2" | 3 7/16" | 3 7/16" | - | €95.07 | |
| BU34 | Iron | 60 lbs.-ft. | 3 28/64" | 3 6/64" | 2 1/2" | 3 7/16" | 3 7/16" | - | €87.50 | |
| BU35 | Iron | 150 lbs.-ft. | 3 60/64" | 3 32/64" | 3" | 3 15/16" | 3 15/16" | - | €127.51 |
