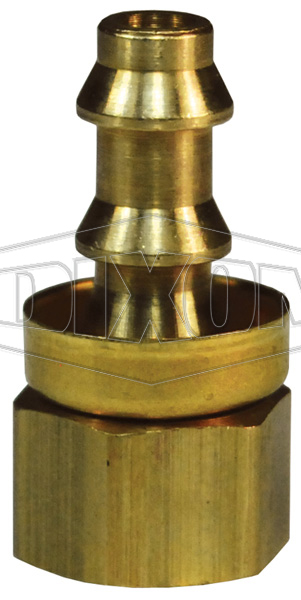

DIXON 2920407CBC Hose Barb, 1/4 x 7/16-24 Inch Size, UNS Female, Rigid SAE Invert Flare
Item: AZ7XBMModel: 2920407CBC
7 In Stock
Ships within 2 days via
€8.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hose Barb |
| Component | Brass Cap |
| Component Material | Brass Cap |
| Configuration | Female Hose Barbs |
| Female Thread | UNS |
| Female Thread Size | 7/16"-24 |
| Female Thread Type | UNS |
| Hex | 1/2" |
| Hex Size | 1/2" |
| Hose Inside Dia. | 1/4" |
| Installation | Assembly Instructions: 1. Trim Hose End With Smooth Square Cut. 2. Lubricate Either Push-On Fitting, Hose Or Both. 3. Insert Push-On Fitting Into Hose Until First Barb Is In Hose. |
| Length | 1.16" |
| Material | Brass |
| Pressure Rating | 350 psi |
| Product Datasheet | dixon-2900406c.pdf |
| Temp. | -40°F to +150°F |
| Thread Type | SAE/JIC |
| Tube Outside Dia. | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.95 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Hex Size | Hose Inside Dia. | Tube Outside Dia. | Female Thread Type | Female Thread Size | Female Thread | Material | Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2920406C | 7/16" | - | - | - | - | - | Brass | -40°F to +150°F | €13.49 | |
|
2920407C | 1/2" | - | - | - | - | - | Brass | -40°F to +150°F | €6.09 | |
|
2920408C | 9/16" | - | - | - | - | - | Brass | -40°F to +150°F | €15.69 | |
 |

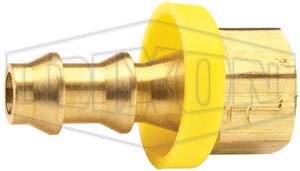

2920610C | 3/4" | - | - | - | - | - | Brass | -40°F to +150°F | €9.06 | |
|
2920812C | 7/8" | - | - | - | - | - | Brass | -40°F to +150°F | €23.79 | |
|
2920406CBC | 7/16" | 1/4" | 3/16" | Fine | 3/8"-24 | UNF | Brass | -40°F to +150°F | €14.48 | |
|
2920408CBC | 9/16" | 1/4" | 5/16" | Fine | 1/2"-20 | UNF | Brass | -40°F to +150°F | €15.57 |
