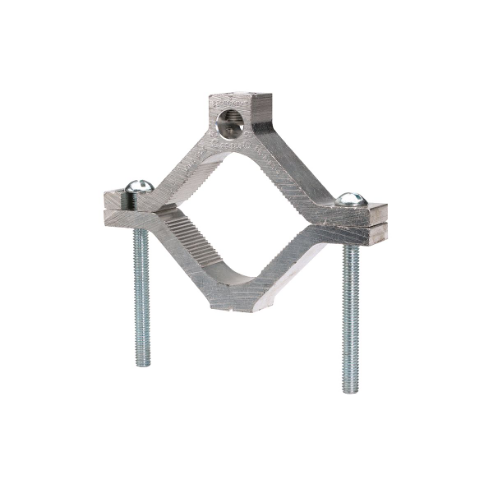

BURNDY GC22A Pipe Ground Clamp 6AWG 6.31In
Item: AB6QZBModel: GC22ACross Ref: 22C061
7 In Stock
Ships within 2 days via
5.00% off
€118.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pipe Ground Clamp |
| Accessory Type | Grounding Connector |
| Body Material | Aluminum |
| Conductor Size | 6 AWG to 250 kcmil |
| For Max. Ground Conductor Wire Size | 250 kcmil |
| For Max. Pipe Size | 4" |
| For Min. Ground Conductor Wire Size | 6 AWG |
| For Min. Pipe Size | 2 1/2" |
| For Use With | Aluminum Conductor, Conduit, Copper Conductor, Pipe, Water Pipe |
| Grounding Wire Size | 6 kcmil STR to 250 kcmil STR, 6 AWG SOL to 4/0 AWG SOL |
| Grounding Wires Connected To | 2 1/2" To 4" Pipe |
| Length | 6.31" |
| Material | Aluminum |
| Max. Conductor Size | 250 kcmil |
| Min. Conductor Size | 6 AWG |
| No. Of Grounding Wires | 1 |
| Overall Length | 6 5/16" |
| Overall Width | 1" |
| Product Datasheet | burndy-gc22a.pdf |
| Screw Type | Hexagonal |
| Terminal Material | Aluminium |
| Torque | 240 lbs.-in. |
| Type | Commercial |
| Type-grounding Connector | Mechanical |
| Width | 4 3/5" |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 14.45 |
| Ship width (cm) | 2.54 |
| HS code | 7419995050 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Overall Width | Torque | For Max. Ground Conductor Wire Size | For Min. Ground Conductor Wire Size | For Max. Pipe Size | Screw Type | Grounding Wires Connected To | Hole Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GC18A | 13/16" | 180 lbs.-in. | 250 kcmil | 6 AWG | 2" | Hexagonal | 1 1/4" To 2" Pipe | 1/2" | 1 | €37.60 | |
|
GC15A | 11/16" | 180 lbs.-in. | 1/0 AWG | 14 AWG | 1" | Slot | 1/2" To 1" Pipe | 0.69" | 5 | €77.46 |
