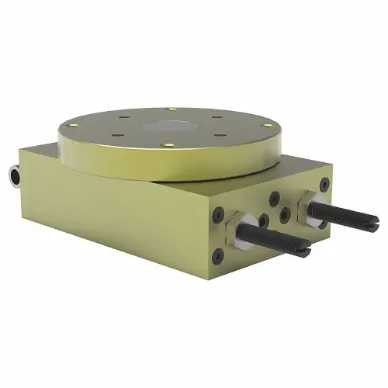

DESTACO RR-46M-90 Rotary Actuator, 90 Deg Rotation Angle, Rr-46M Model Size, 14 In-Lb Torque
Item: CP3MRLModel: RR-46M-90Cross Ref: 28WY86
7 In Stock
Ships within 2 days via
10.00% off
€5,166.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Actuator |
| Actuator Style | Double Rack |
| Air Inlet Center To Center Distance | 69.875 mm |
| Bore Dia. | 31.75 mm |
| For Fluid Type | Air |
| Height | 3 1/2" |
| Length | 5 1/2" |
| Max. Pressure | 100 psi |
| Maximum Operating Pressure | 0.69 MPa |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Pressure | 40 psi |
| Minimum Operating Temperature | -35°C |
| Operating Temp. Range | -32°F to +150°F |
| Output Torque | 14 N-m |
| Overall Height | 54 mm |
| Overall Length | 139.7 mm |
| Overall Width | 88.9 mm |
| Port Type | NPT |
| Rotation Angle | 90° |
| Shaft Diameter | 113.54 mm |
| Shaft Length | 15.47 mm |
| System Of Measurement | Metric |
| Weight | 2.3 Kg |
| Width | 2 1/8" |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 5.4 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Product Variants
| Product | Model | Output Torque | Rotation Angle | Bore Dia. | Shaft Length | Height | Operating Temp. Range | Max. Pressure | Port Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RR-18-180 | 6.5 lbs.-in. | 180° | 1/2" | 1/8" | 0.969" | -30°F to +180°F | 100 psi | - | €3,113.23 | |
|
RR-18M-180 | 0.7 N-m | 180° | 12.7 mm | 3.18 mm | 0.969" | -30°F to +180°F | 100 psi | - | €2,853.35 | |
 |
RR-28-180 | 22 lbs.-in. | 180° | 3/4" | 1/8" | 1.313" | -30°F to +180°F | 100 psi | - | €3,374.35 | |
 |
RR-36M-180 | 7.4 N-m | 180° | 25.4 mm | 12.7 mm | 3" | -32°F to +150°F | 100 psi | NPT | €4,277.54 | |
|
RR-46-180 | 122 lbs.-in. | 180° | 1 1/4" | 5/8" | 3 1/2" | -32°F to +150°F | 100 psi | NPT | €6,000.38 | |
|
RR-18-90 | 6.5 lbs.-in. | 90° | 1/2" | 1/8" | 0.969" | -30°F to +180°F | 100 psi | - | €3,113.23 | |
|
RR-18M-90 | 0.7 N-m | 90° | 12.7 mm | 3.18 mm | 0.969" | -30°F to +180°F | 100 psi | - | €2,853.35 |
