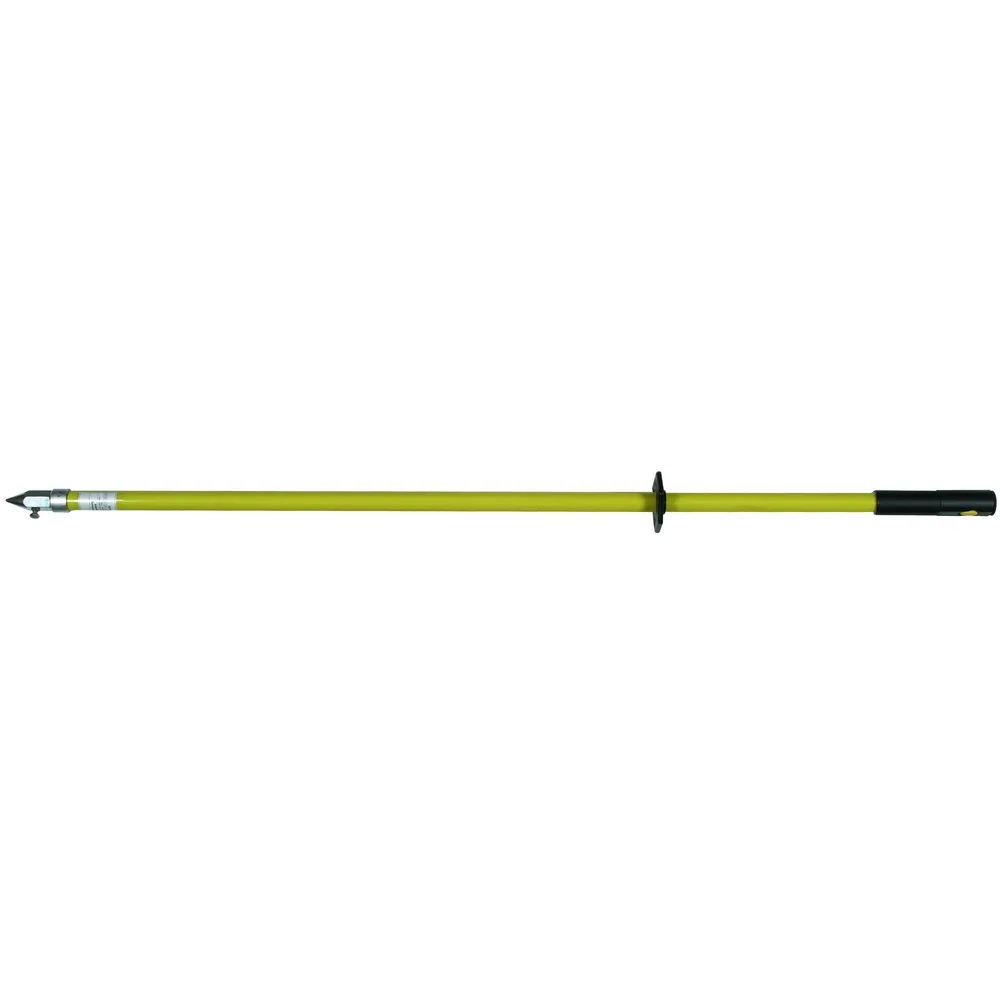

DEHN 758075 Discharge Device With Contact Coupling
Get it by Monday, Aug 17
€429.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Contact Electrode Finish | Galvanized TiN |
| Contact Electrode Material | Copper Alloy |
| Insulating Tube Finish | Glass Fibre Reinforced |
| Insulating Tube Material | Polyester |
| Material (insulating Tube) | Glass Fibre Reinforced Plyester Tube , Glass Fibre Reinforced Polyester Tube |
| Material Contact Electrode | Copper Alloy/Gal Sn , Cu Alloy, gal. Sn |
| Product Datasheet | dehn-758075.pdf |
| Screw | M8 x 20 |
| Total Length (lg) | 1470 mm |
| Tube Length | 1310 mm |
| Use | Not Suitable For Use In Wet Weather Conditions |
Shipping Info:
| Ship weight (kg) | 1.74 |
| Ship height (cm) | 10.49 |
| Ship length (cm) | 146.99 |
| Ship width (cm) | 10.49 |
Documentation:
Product Variants
| Product | Model | Total Length (lg) | Tube Length | Cable Cross Section | Cable Sheath | Clamping Range | Material Contact Electrode | Possible Clamp Operations | Cable Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
758001 | 2050 mm | 2000 mm | 16 sq. mm | Transparent | Up To 20 mm | Cu Alloy, gal. Sn | - | 3500 mm | €607.26 | |
 |
758003 | 2050 mm | 2000 mm | 16 sq. mm | Transparent | Up To 18 mm | Cu Alloy, gal. Sn | - | 3500 mm | €504.51 | |
 |
758015 | 1725 mm | 1500 mm | 25 sq. mm | Transparent | Up To 30 mm | - | - | 3500 mm | €975.69 | |
 |
758020 | 550 mm | 465 mm | 16 sq. mm | Transparent | Up To 20 mm | - | - | 3500 mm | €425.82 | |
|
758021 | 550 mm | 465 mm | 16 sq. mm | Transparent | 0 mm to 16 mm, 0 mm to 13 mm | - | - | 3500 mm | €348.36 | |
 |
758022 | 550 mm | 465 mm | 10 sq. mm | Red silicone cable | - | - | - | 3500 mm | €325.68 | |
 |
758025 | 1500 mm | 1310 mm | 16 sq. mm | Transparent | - | - | - | 3500 mm | €465.84 |
