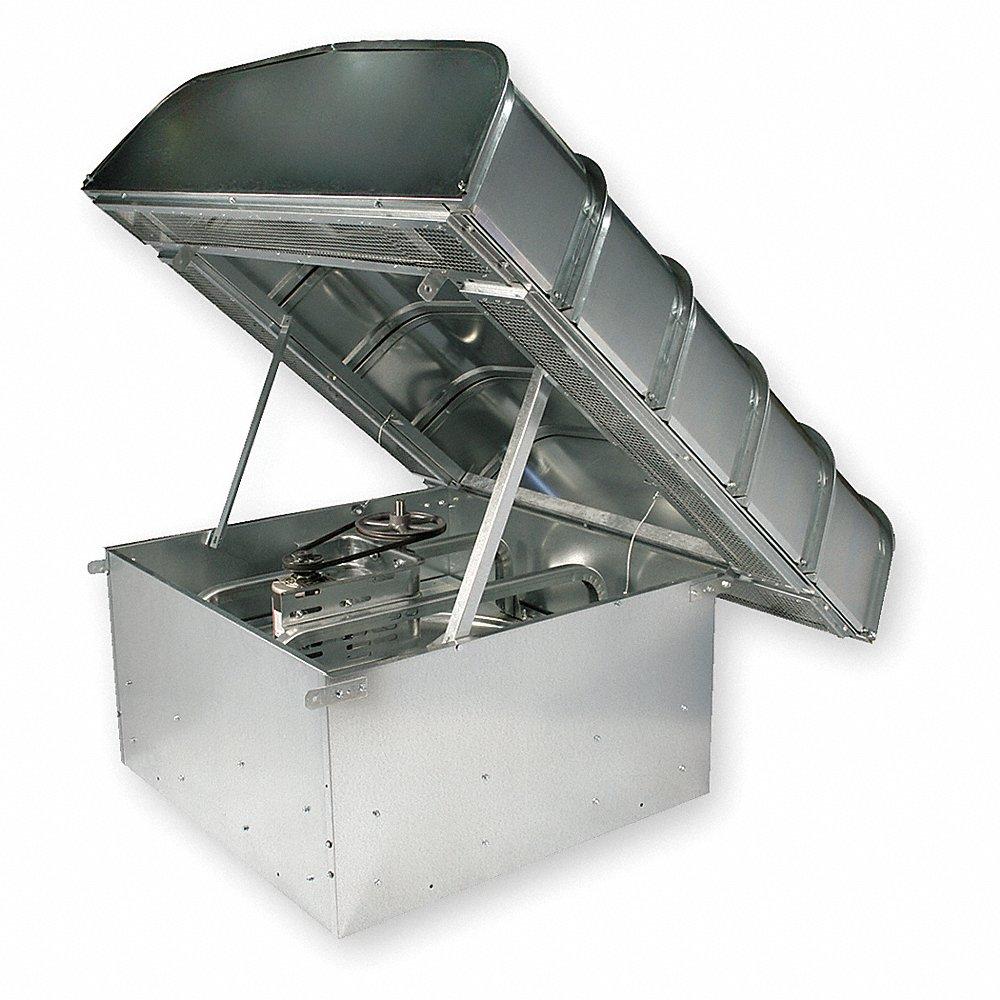

DAYTON 7CK26 Exhaust/Supply Ventilator, 36 Inch Blade Dia., 115V AC/208 To 230V AC, 3/4 HP Motor
Get it by Monday, Feb 16
10.00% off
€4,249.31 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Exhaust/Supply Ventilator |
| Amps | 6.6/3.5-3.3A |
| Application | Factories, Large Facilities, Warehouses |
| Assembled/unassembled | Unassembled |
| Assembly | Unassembled |
| Base Dia. | Not Applicable |
| Base Height | 22" |
| Base Length | 40 1/2" |
| Base Shape | Square |
| Base Size | 40 1/2" x 40 1/2" |
| Base Width | 40 1/2" |
| Bearing Size | 1 1/4" |
| Bearing Type | Sealed Pillow Block |
| Blade Dia. | 36 , 36" |
| Blade Finish | Galvanized |
| Blade Material | Steel |
| Brake Horsepower | 9/10 hp |
| Compatible Curb Manufacturer Part Number | 2ZV84, 3AZJ2, 3C438, 4C455 |
| Compatible Damper Grainger Part Number | 3HHN1 |
| Damper Size | 36" x 36" |
| Dimension A | 40 1/2" |
| Drive Type | Belt Drive |
| Drive Type - Roof Ventilators | Belt Drive |
| Exhaust Airflow @ 0.000 In Sp | 9737 CFM |
| Features | Strong And Weathertight Hood |
| For Air Type | Clean Air |
| For High-static Pressure Applications | No |
| Frequency | 60 Hz |
| High-efficiency Motor | No |
| Hood Height | 16" |
| Hood Length | 60" |
| Hood Width | 68" |
| Housing Finish | Galvanized |
| Housing Length | 40 1/2" |
| Housing Material | Steel |
| Housing Width | 40 1/2" |
| Includes | Drive Package, Hood, Wall-Mounted Reversing Switch |
| Includes Drive Package | Yes |
| Includes Drive Package With Motor | Yes |
| Includes Motor | Yes |
| Max. Depth | 60" |
| Maximum Ambient Temperature | 104°F |
| Maximum Fan Speed | 755 RPM |
| Maximum Inlet Air Temperature | 104°F |
| Maximum Static Pressure | 0.5 in. wc |
| Motor Enclosure | Open Dripproof |
| Motor Horsepower | 3/4 hp |
| Motor Hp - Roof Ventilators | 3/4 hp |
| Motor Speed | 1725 RPM |
| Motor Type | Capacitor-Start Capacitor-Run |
| Mount Type | Roof Curb |
| Mounting Location | Roof |
| Mounting Orientation | Horizontal |
| Mounting Position | Horizontal |
| Nameplate Voltage | 115/208-230V AC |
| Number Of Blades | 6 |
| Number Of Speeds | 1 |
| Overall Dia. | Not Applicable |
| Overall Height | 38" |
| Overall Height - Roof Ventilators | 38" |
| Overall Length | 60" |
| Overall Width | 68" |
| Phase | 1 |
| Propeller Material | Steel |
| Propeller Shaft Dia. | 1 1/4" |
| Resistance Properties | Weather Resistant |
| Shaft Dia. | 1 1/4" |
| Speed Controllable | No |
| Style | Hooded |
| Supply Airflow @ 0.000 In Sp | 9737 CFM |
| Type | Axial Belt Drive Downblast |
Shipping Info:
| Ship weight (kg) | 188.96 |
| Ship height (cm) | 96.52 |
| Ship length (cm) | 152.4 |
| Ship width (cm) | 172.72 |
| Country of Origin | US |
Product Variants
| Model | Blade Dia. | Phase | Voltage | Motor Hp | Height | Drive Type | Assembled/unassembled | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 7AE83 | 36" | 3 | 203-208/460V | 1/2 hp | - | Belt Drive | Unassembled | Steel | €4,549.24 | |
| 7AE84 | 36" | 3 | 208-230/460V | 3/4 hp | - | Belt Drive | Unassembled | Steel | €4,659.61 | |
| 7AE85 | 36" | 3 | 208-230/460V | - | - | Belt Drive | Unassembled | Steel | €4,594.33 | |
| 7AE86 | 36" | 3 | 208-230/460V | 1 1/2 hp | - | Belt Drive | Unassembled | Steel | €4,640.86 | |
| 7AE87 | 36" | 3 | 208-230/460V | - | - | Belt Drive | Unassembled | Steel | €4,732.31 | |
| 7AU13 | 30" | 1 | 115/208-230V | 333/1000 hp | - | Belt Drive | Unassembled | Steel | €4,084.69 | |
| 7AU14 | 30" | 1 | 115/208-230V | 333/1000 hp | - | Belt Drive | Unassembled | Steel | €4,183.16 |
