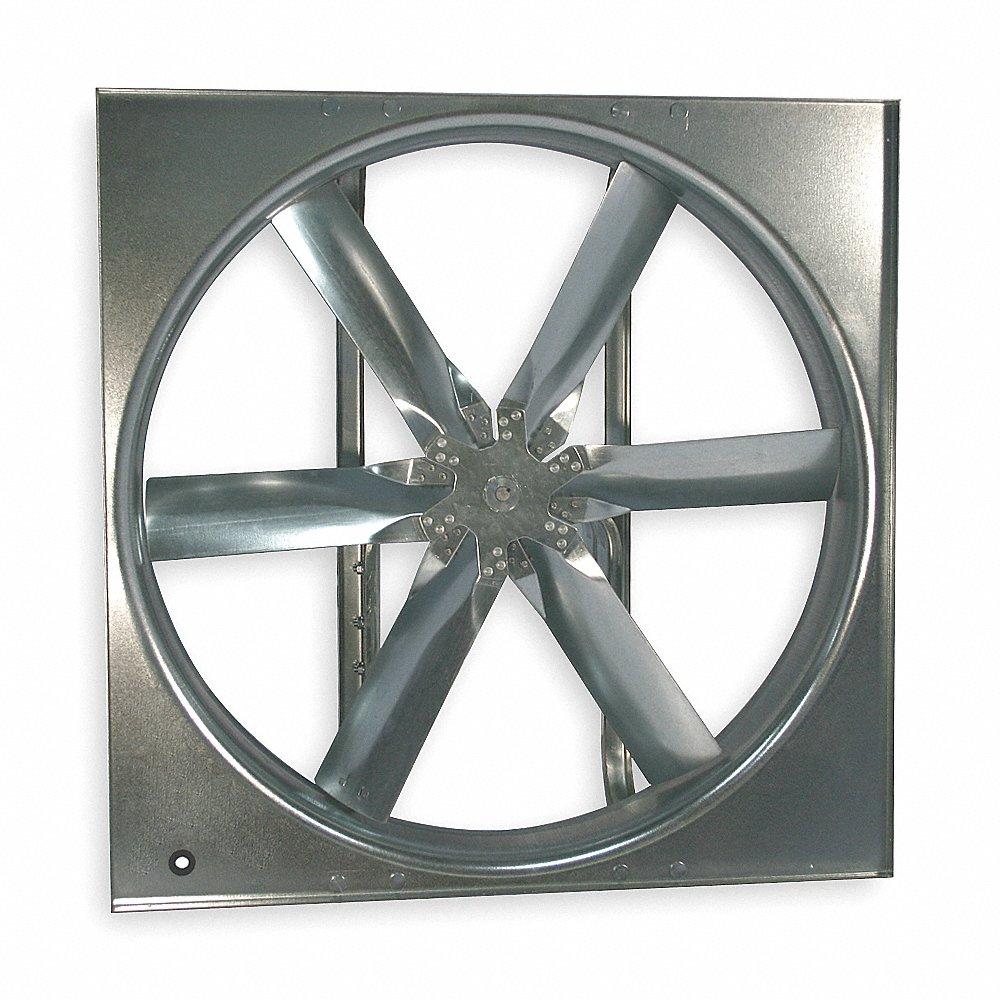

DAYTON 7CC20 Supply Fan, With Drive Package, Belt Drive, 30 Inch Blade, Totally Enclosed, 8867 cfm
Get it by Tuesday, Jun 30
5.00% off
€1,506.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Supply Fan w/Drive Package |
| Assembled | Unassembled |
| Assembled/unassembled | Unassembled |
| Bearing Size | 3/4" |
| Blade Dia. | 30" |
| Blade Finish | Galvanized |
| Blade Material | Steel |
| Drive Package Included | Yes |
| Drive Package With Motor Included | Yes |
| Drive Type | Belt Drive |
| Exhaust/supply Fan Item | Supply Fan |
| Fan Duty Rating | Standard |
| Fan Speed | 776 RPM |
| Fan Style | Panel |
| Flange Depth | 1" |
| Flange Width | 34" |
| For Cut Out Length | 32 1/2" |
| For Cut-out Height | 32 1/2" |
| For Cut-out Width | 32 1/2" |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 8A |
| Height | 34" |
| Included | Drive Package |
| Included Dehumidistat | No |
| Included Drive Package With Motor | Yes |
| Included Grill | No |
| Included Motor | Yes |
| Max. Depth | 22 7/8" |
| Max. Noise Level | 17.8 sones |
| Max. Noise Level @ 0.000 In Sp @ 5 Ft. | 17.8 sones |
| Max. Supply Airflow @ 0.000 In Sp | 8867 CFM |
| Max. Supply Airflow @ 0.125 In Sp | 8036 CFM |
| Max. Supply Airflow @ 0.250 In Sp | 6990 CFM |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Hp | 1/2 hp |
| Motor Insulation | Class B |
| Motor Speed | 1725 RPM |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Voltage | 115/208-230V AC |
| No. Of Blades | 6 |
| No. Of Fans | 1 |
| No. Of Shutters | 0 |
| No. Of Speed | 1 |
| Noise Level @ 0.000 In Sp @ 5 Ft | 17.8 sones |
| Outside Dia. | 34" |
| Overall Depth | 22 7/8" |
| Overall Dia. | 34" |
| Overall Height | 34" |
| Overall Width | 34" |
| Phase | 1 |
| Shaft Dia. | 3/4" |
| Speed Controllable | No |
| Vent Design | Ductless |
| Ventilation Type | Supply |
| Venturi Clearance Dia. | 30 3/8" |
| Venturi Dia. | 30 1/2" |
| Width | 34" |
Shipping Info:
| Ship weight (kg) | 43.09 |
