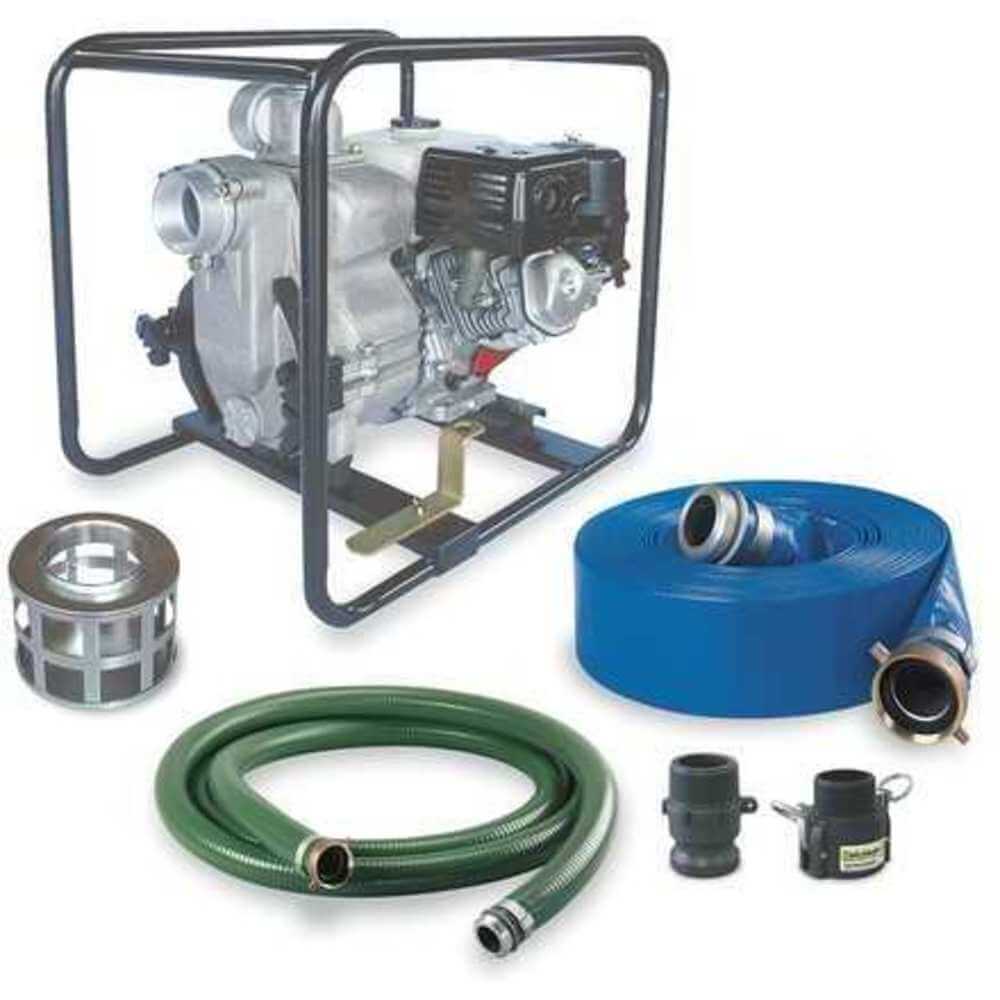

DAYTON 7AJ18 Engine Drive Pump Kit 8 Hp Honda Engine
Get it by Wednesday, Dec 24
10.00% off
€2,521.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Engine Driven Centrifugal Pump Kit |
| Adapter Casing Material | Aluminum |
| Application | Trash |
| Body Material | Aluminum |
| Casing Adapter | Aluminum |
| Casing Adapter | Aluminium |
| Check Valve | Buna |
| Check Valve | Buna N |
| Check Valve Material | Buna N |
| Discharge Dia. | 3" |
| Engine Brand | Honda GX240 OHV |
| Engine Rpm | 3600 |
| Engine Size | 242 cc |
| Engine/motor Type | Gas |
| Flow Rate @ 10 Ft. | 335 GPM |
| Flow Rate @ 10 Ft. Of Head | 335 GPM |
| Flow Rate @ 20 Ft. | 324 GPM |
| Flow Rate @ 20 Ft. Of Head | 324 GPM |
| Flow Rate @ 30 Ft. | 280 GPM |
| Flow Rate @ 40 Ft. | 278 GPM |
| Flow Rate @ 40 Ft. Of Head | 278 GPM |
| Flow Rate @ 50 Ft. | 225 GPM |
| Flow Rate @ 60 Ft. | 224 GPM |
| Flow Rate @ 60 Ft. Of Head | 224 GPM |
| Flow Rate @ 70 Ft. | 125 GPM |
| Flow Rate @ 80 Ft. | 68 GPM |
| Flow Rate @ 80 Ft. Of Head | 68 GPM |
| Frame Design | Full Tubular Frame |
| Frame Design - Pumps | Full Tubular Frame |
| Frame Material | Steel |
| Height | 24" |
| Housing Material | Aluminum |
| Hp | 7 1/10 hp |
| Ignition Type | Recoil Start |
| Impeller | Cast-Iron |
| Impeller Design | Semi Open |
| Impeller Material | Cast Iron |
| Impeller Type | Semi Open |
| Inlet | 3" NPT |
| Inlet Dia. | 3" |
| Inlet Size | 3" |
| Inlet Type | Cam And Groove |
| Length | 26 1/2" |
| Material Of Construction | Aluminum |
| Max. Diameter Solids | 1 1/2" |
| Max. Head | 89 ft. |
| Max. Pressure | 39 psi |
| Max. Solid Dia. | 1 1/2" |
| Max. Suction Lift | 26 ft. |
| Max. Suction Lift (ft.) | 25 |
| Maximum Discharge Pressure | 39 psi |
| Npt Port | 3" |
| Number Of Impellers | 1 |
| Outlet | 3" Npt |
| Outlet Size | 3" |
| Outlet Type | Cam And Groove |
| Overall Height | 23 7/64" |
| Overall Length | 28 13/32" |
| Overall Width | 20 5/16" |
| Power Source | Gas |
| Pump Mechanism | Centrifugal |
| Roll Bar Frame | Steel |
| Rpm | 3600 RPM |
| Seal Material | Buna N, Silicon Carbide |
| Sensor Type | Low Oil |
| Solids Handling Capacity (in.) | 1-1/8 |
| Tank Capacity | 5.6 qt |
| Temp. Range | +35°F to +105°F |
| Type | Trash |
| Volute Material | Spheroid Graphite Ductile Iron |
| Volute/wear Plate | Cast-Iron |
| Width | 19" |
Shipping Info:
| Ship weight (kg) | 90.41 |
| Ship height (cm) | 58.7 |
| Ship length (cm) | 72.15 |
| Ship width (cm) | 51.59 |
| HS code | 8413702015 |
| Country of Origin | US |
Product Details:
- Number of Impellers (1)
Product Variants
| Product | Model | Hp | Engine Size | Tank Capacity | Height | Max. Pressure | Max. Suction Lift | Flow Rate @ 60 Ft. | Flow Rate @ 40 Ft. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7AJ11 | 4 13/16 hp | 163 cc | 0.95 gal. | 15 1/2" | 38 psi | 25 ft. | 90 GPM | 133 GPM | €1,994.90 | |
 |
7AJ12 | 7 1/10 hp | 242 cc | 5.6 qt | 24" | 39 psi | 26 ft. | 224 GPM | 278 GPM | €2,841.46 | |
 |
7AJ13 | 9 1/2 hp | 337 cc | 1.73 gal. | 24" | 35 psi | 25 ft. | 150 GPM | 290 GPM | €5,221.86 | |
 |
7AJ14 | 4 4/5 hp | 163 cc | 0.95 gal. | 15 1/2" | 38 psi | 25 ft. | 90 GPM | 133 GPM | €1,999.00 | |
 |
7AJ15 | 7 1/10 hp | 242 cc | 5.6 qt | 24" | 39 psi | 26 ft. | 224 GPM | 278 GPM | €2,930.12 | |
 |
7AJ16 | 9 1/2 hp | 337 cc | 1.72 gal. | 24" | 35 psi | 25 ft. | 150 GPM | 290 GPM | €5,009.80 | |
 |
7AJ17 | 4 13/16 hp | 163 cc | 0.95 gal. | 15 1/2" | 38 psi | 25 ft. | 90 GPM | 133 GPM | €1,925.24 |
