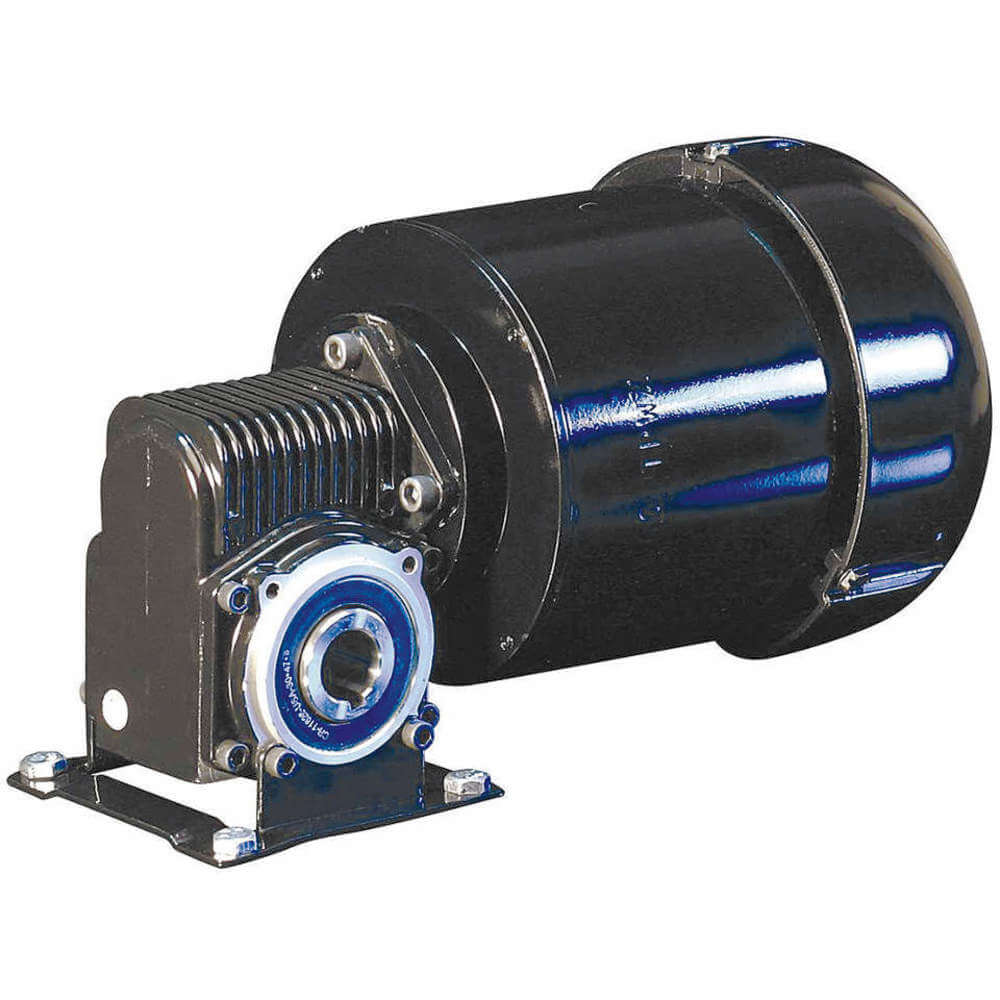

DAYTON 6VEP5 Ac Gearmotor 80 Rpm Tefc 230vac
Get it by Wednesday, Jul 1
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,369.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Amps | 0.75A |
| Bearing Type | Double Shielded Ball |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Finish | Powder Coating |
| Frequency | 50/60 Hz |
| Full Load Amps | 0.75A |
| Gear Case Material | Die Cast Aluminium |
| Gear Material | Bronze, Hardened Steel |
| Gear Ratio | 20:1 |
| Gear Type | Worm |
| Gears | Bronze Gear, Hardened Steel Worm |
| Housing Material | Die Cast Aluminium |
| Housing Material Finish | Powder Coated |
| Input Hp | 1/4 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Key Way Size | 3/16" x 1" |
| Keyway Depth | 1/16" |
| Keyway Type | Rounded |
| Keyway Width | 0.19 mm |
| Length Less Shaft | 10.34" |
| Lubrication | Oil Filled |
| Max. Ambient Temp. | 104°F , 40°C |
| Max. Torque | 108 lbs.-in. |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class F |
| Motor Type | 3-Phase |
| Mounting | All Position |
| Mounting Orientation | Any Angle |
| Mounting Type | Any Position |
| Nameplate Speed | 80 RPM |
| Operating Voltage | 230V AC |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 5/16" |
| Output Shaft Type | Hollow |
| Overhung Load | 300 lbs. |
| Overhung Load Capacity | 300 lbs.-ft. |
| Phase | 3 |
| Reversible Shaft Output | Yes |
| Rotation | CW, CCW |
| Seal Type | O-Ring |
| Seals | O Ring |
| Shaft | Hollow Output |
| Shaft Orientation | Right Angle |
| Speed | 76-100 RPM |
| Standards | Ul Recognized |
| Thermal Protection | Thermostat |
| Type | Three Phase |
Shipping Info:
| Ship weight (kg) | 8.84 |
| Ship height (cm) | 22.61 |
| Ship length (cm) | 48.77 |
| Ship width (cm) | 24.89 |
| HS code | 8501404020 |
| Country of Origin | US |
Product Variants
| Model | Max. Torque | Overhung Load Capacity | Gear Ratio | Overhung Load | Shaft Orientation | Output Shaft Type | Motor Type | Motor Enclosure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6VEP2 | 30 lbs.-in. | 270 lbs.-ft. | - | 270 lbs. | Right Angle | Hollow | 3-Phase | Totally Enclosed Fan Cooled | €1,369.80 | |
| 6VEP3 | 30 lbs.-in. | 300 lbs.-ft. | 10:1 | 300 lbs. | Right Angle | Hollow | 3-Phase | Totally Enclosed Fan Cooled | €1,441.88 | |
| 6VEP4 | 76 lbs.-in. | 300 lbs.-ft. | - | 300 lbs. | Right Angle | Hollow | 3-Phase | Totally Enclosed Fan Cooled | €1,369.80 | |
| 6VEP6 | 130 lbs.-in. | 300 lbs.-ft. | 30:1 | 300 lbs. | Right Angle | Hollow | 3-Phase | Totally Enclosed Fan Cooled | €1,441.88 | |
| 6VEP7 | 120 lbs.-in. | 300 lbs.-ft. | 45:1 | 300 lbs. | Right Angle | Hollow | 3-Phase | Totally Enclosed Fan Cooled | €1,369.80 | |
| 6VEP8 | 100 lbs.-in. | 300 lbs.-ft. | 60:1 | 300 lbs. | Right Angle | Hollow | 3-Phase | Totally Enclosed Fan Cooled | €1,441.88 |
