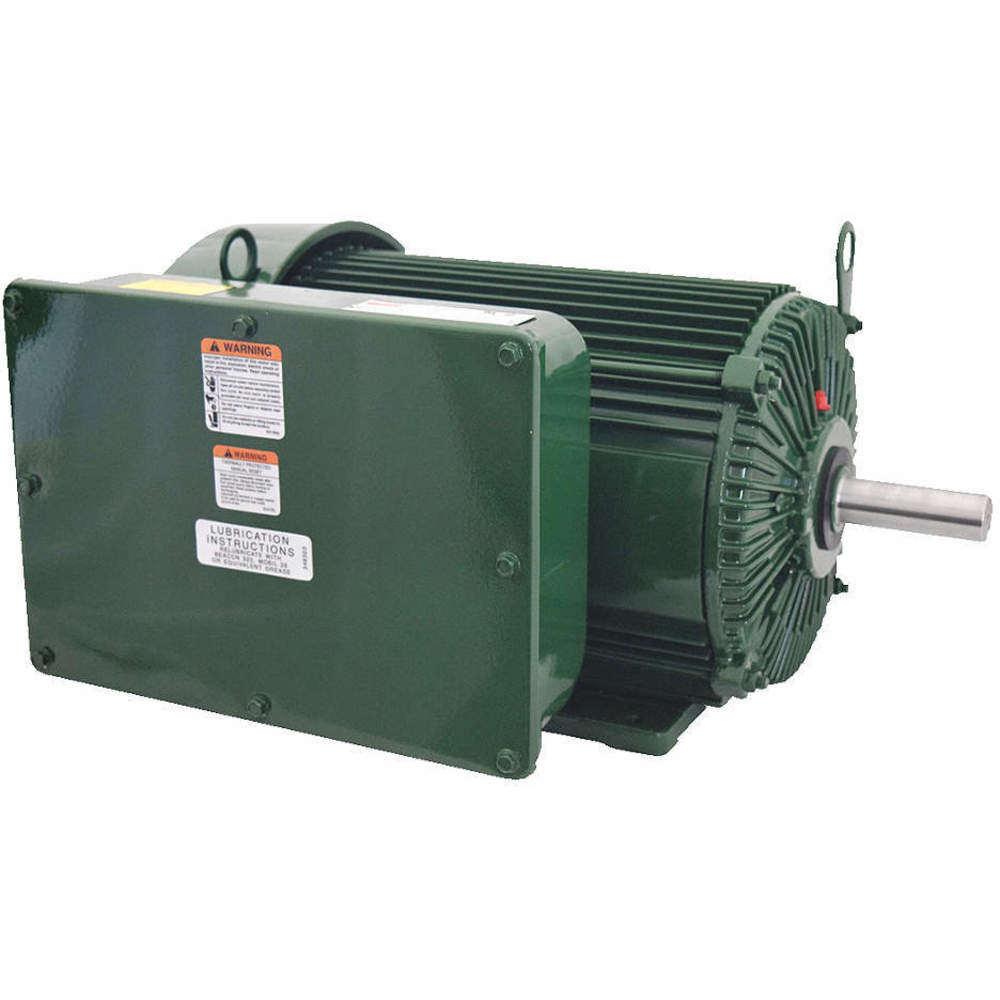

DAYTON 6K884 Farm Duty Motor Capacitor Start TEFC 7-1/2hp 1720 rpm
Get it by Monday, Dec 29
10.00% off
€2,844.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor Required | Included |
| Color | Green |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 83% |
| Frame | 215TZ |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 30.8A |
| Hp | 7 1/2 hp |
| Includes | Shaft Key, Gasketed Conduit Box And Shaft Slinger |
| Insulation Class | Class F |
| Length Less Shaft | 18" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Extra High Torque |
| Motor Thermal Protection | Manual |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1715 RPM |
| Nominal Efficiency | 83% |
| Number Of Speeds | 1 |
| Overall Length | 21 3/8" |
| Phase | 1 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 3 3/8" |
| Thermal Protection | Manual |
| Voltage | 230V AC |
Shipping Info:
| Ship weight (kg) | 66.6 |
| Ship height (cm) | 38.86 |
| Ship length (cm) | 63.5 |
| Ship width (cm) | 45.21 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Frame | Motor Service Factor | Motor Sub Application | Nameplate Rpm | Hp | Motor Design | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4K090 | 115/230V AC | 56HZ | 1 | High Torque | - | - | - | 1 | €843.94 | |
 |
6K130 | 230V AC | 213T | 1 | High Torque | 1730 RPM | - | - | 1 | €2,551.32 | |
 |
6K311 | 115/230V AC | 143/5T | 1.15 | High Torque | 1725 RPM | 1 1/2 hp | Capacitor Start/Run | 1.15 | €850.38 | |
 |
6K313 | 115/230V AC | 182T | 1 | High Torque | 1740 RPM | - | - | 1 | €1,295.38 | |
 |
6K610 | 230V AC | 184T | 1 | High Torque | 1740 RPM | - | - | 1 | €1,847.63 | |
 |
6K710 | 115/230V AC | 56Z | 1.15 | High Torque | 1725 RPM | 1/3 hp | Capacitor Start | 1.15 | €479.24 | |
 |
6K714 | 115/230V AC | 56Z | 1.15 | High Torque | 1725 RPM | 1/2 hp | Capacitor Start | 1.15 | €674.50 |
