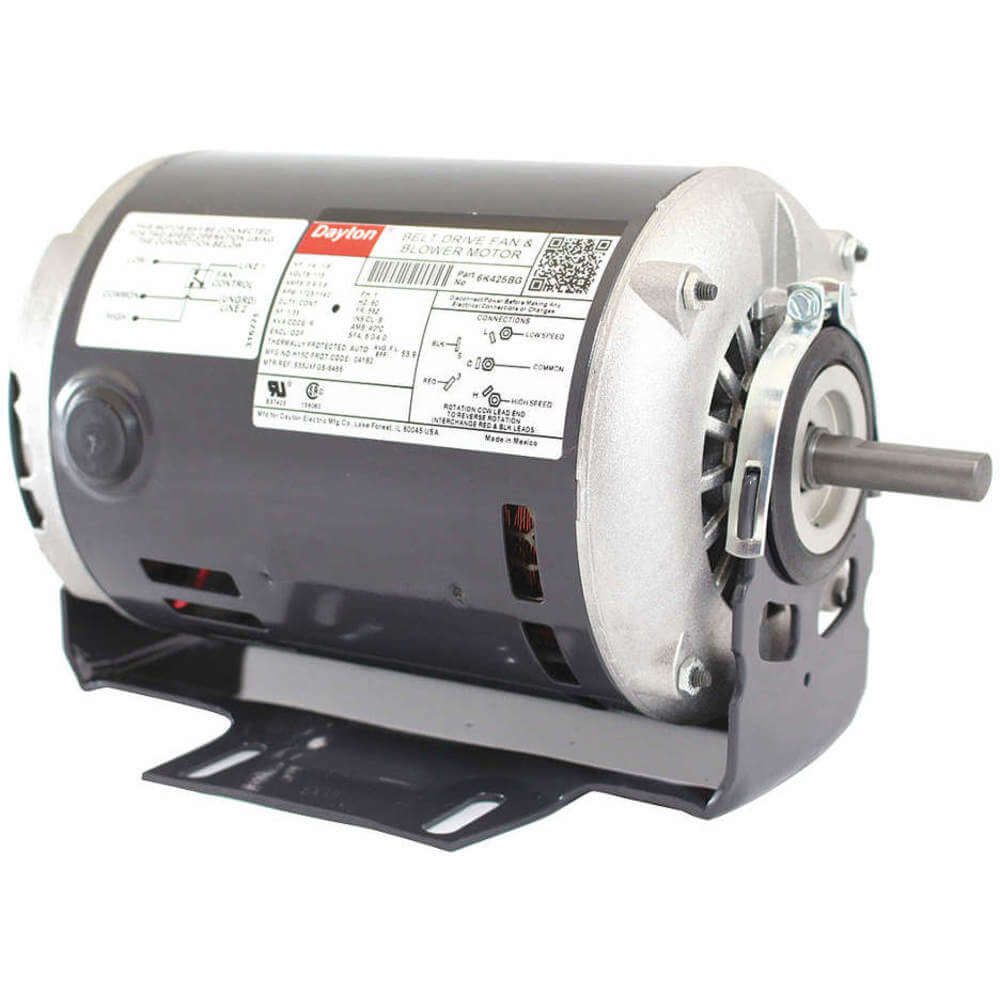

DAYTON 6K425 Motor 1/4 1/8 Hp 1725/1140 Rpm 115 V
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€378.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Belt Drive Motor |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Duty Cycle | Continuous |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5.9/3.8A |
| Hp | 1/4 hp, 1/8 hp |
| Includes | 1/2" To 5/8" Diameter Shaft Bushing, 3/16" x 3/16" x 1-1/4" Shaft Key |
| Insulation Class | Class B |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Split Phase |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725/1140 RPM |
| No. Of Speeds | 2 |
| Nominal Efficiency | 50% |
| Overall Length | 10.437" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 8 1/16" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Shaft Type | Flat |
| Stud Pattern | 3 5/8" x 3 5/8" |
| Thermal Protection | Automatic |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 9.27 |
| Ship height (cm) | 19.56 |
| Ship length (cm) | 29.97 |
| Ship width (cm) | 20.07 |
| HS code | 8501404040 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Hp | Motor Type | No. Of Speeds | Service Factor | Nameplate Rpm | Frame | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AGG1 | 115/208-230V AC | 1/4 hp | Capacitor Start | 1 | 1.35 | 1725 RPM | - | Steel | €416.02 | |
|
1AGG2 | 115/208-230V AC | 1/3 hp | Capacitor Start | 1 | 1.35 | 1725 RPM | 48Z | Steel | €537.97 | |
 |
3K091 | 115/208-230V AC | 1/4 hp | Split Phase | 1 | 1.35 | 1725 RPM | 48 | Rolled Steel | €350.82 | |
 |
3K371 | 115V AC | 1/3 hp, 1/9 hp | Split Phase | 2 | 1.35 | 1725/1140 RPM | 48 | Rolled Steel | €405.36 | |
 |
3K384 | 115V AC | 1/3 hp | Split Phase | 1 | 1.35 | 1725 RPM | 48 | Steel | €327.34 | |
 |
3K386 | 115V AC | 1/3 hp, 1/9 hp | Split Phase | 2 | 1.35 | 1725/1140 RPM | 48 | Rolled Steel | €425.38 | |
 |
3K613 | 115/208-230V AC | 1/6 hp | Split Phase | 1 | 1.35 | 1725 RPM | 48 | Rolled Steel | €404.14 |
