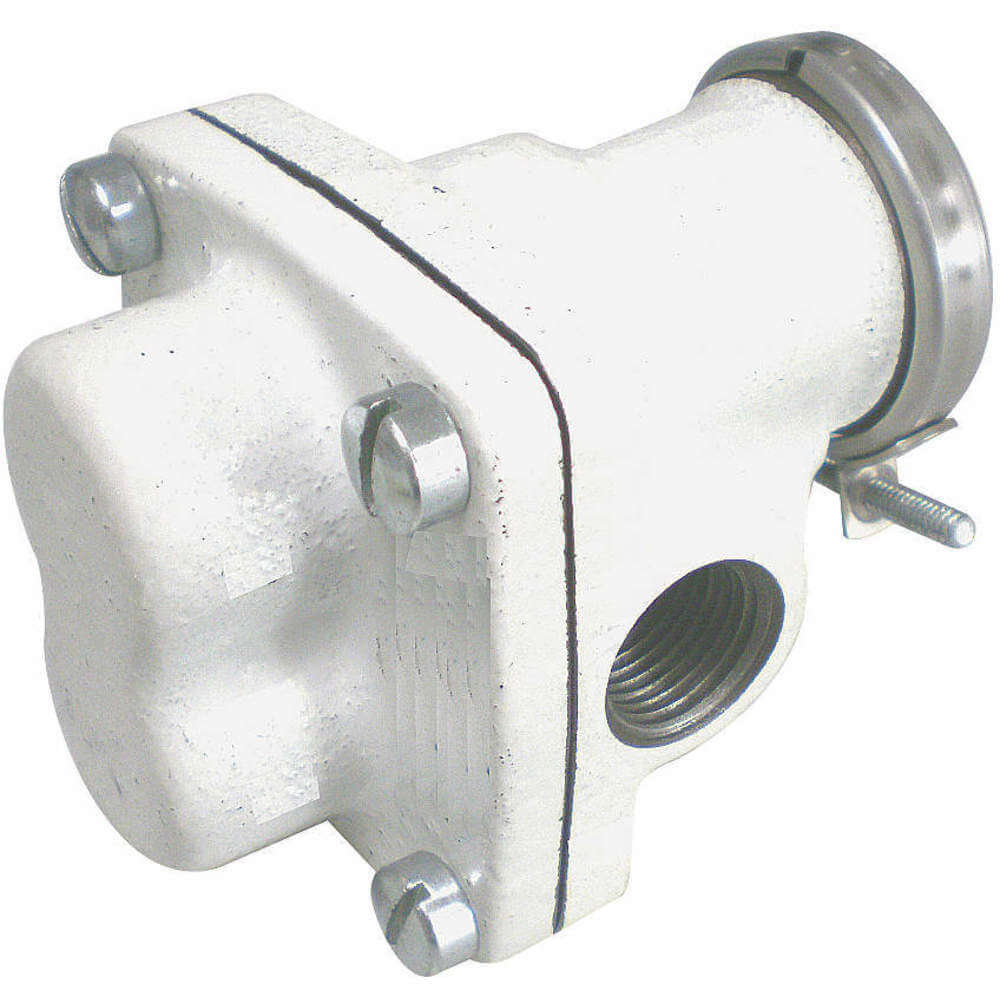

DAYTON 6DHH8 Gear Pump Head Nsf Listed
Item: AE8JNWModel: 6DHH8
7 In Stock
Ships within 2 days via
10.00% off
€444.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Gear Pump Head |
| Body Material | Cast Iron |
| Compatible Motor Frame | Carbonator Mount |
| Connection Size | 1/2" |
| Connection Type | NPT |
| Design | Carbonator Mount |
| Duty Rating | Intermediate |
| Flow Rate | 4.1 GPM |
| Flow Rate @ 100 Psi | Not Applicable |
| Flow Rate @ 125 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 3.9 GPM |
| Flow Rate @ 25 Psi | 3.8 GPM |
| Flow Rate @ 40 Psi | 3.4 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 75 Psi | Not Applicable |
| Gear | Spur |
| Gear Design | Spur |
| Gear Material | Steel |
| Gear Type | Spur |
| Gpm @ 25 Psi | 3.8 |
| Gpm @ Freeflow | 4.1 |
| Gpm @ Freeflow @ 1725 Rpm | 4.1 |
| Height | 3" |
| Housing Material | Cast Iron |
| Hp Required | 1/3 hp |
| Includes | Not Applicable |
| Length | 4 5/16" |
| Max. Motor Speed | 1725 RPM |
| Max. Operating Pressure | 40 psi |
| Max. Pressure | 40 psi |
| Max. Suction Lift | 5.1 ft. |
| Max. Viscosity | 100 SUS |
| Motor Frame | Carbonator Mount |
| Motor Hp | 1/3 hp |
| Motor Mounting Type | Carbonator Mount |
| Mounting Type | Carbonator Mounted |
| O-ring | Viton |
| O-ring Material | Viton |
| Operating Temperature Range | 40°F to 375°F |
| Overall Height | 3" |
| Overall Length | 4.3" |
| Overall Width | 3" |
| Port Size | 1/2" |
| Pump Housing Material | Cast Iron |
| Pump Material | Cast Iron |
| Pump Rpm | 1725 |
| Recommended Motor Hp | 1/3 |
| Recommended Motor Hp | 1/3 hp |
| Relief Valve | No |
| Relief Valve | Without |
| Seal | Viton Lip |
| Seal Material | Viton |
| Seal Type | Lip |
| Shaft Dia. | 1/2" |
| Shaft Length | Not Applicable |
| Shaft Material | Stainless Steel |
| Shaft Outside Dia. | 1/2" |
| Suction Lift (ft.) @ 1725 Rpm | 5.1 |
| Temp. Range | +40°F to +375°F |
| Type | No Motor |
| Wetted Material | Not Applicable |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 2.12 |
| Ship height (cm) | 14.99 |
| Ship length (cm) | 17.02 |
| Ship width (cm) | 14.73 |
| HS code | 8413600090 |
| Country of Origin | CN |
Product Details:
- Pipe (In.) (1/2)
Product Variants
| Model | Flow Rate @ 100 Psi | Temp. Range | Seal Type | Max. Suction Lift | Gear Material | Motor Hp | Port Size | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4KHA9 | 4.4 GPM | -20°F to +210°F | Mechanical | 3.5 ft. | Fortron PPS | 1 hp | 1/4" | 1/2" | €596.10 | |
| 4KHC1 | 6.5 GPM | -20°F to +210°F | Mechanical | 7.9 ft. | Fortron PPS | 1 1/2 hp | 3/8" | 0.63" | €701.69 | |
| 4KHC2 | 10.2 GPM | -20°F to +210°F | Mechanical | 12.3 ft. | Fortron PPS | 1 1/2 hp | 1/2" | 5/8" | €704.00 | |
| 4KHC4 | 23.9 GPM | -20°F to +210°F | Mechanical | 19.5 ft. | Fortron PPS | 3 hp | 1" | 0.787" | €932.24 | |
| 4KHC5 | 4.4 GPM | +32°F to +280°F | Mechanical | 3.5 ft. | Steel | 1 hp | 1/4" | 1/2" | €465.41 | |
| 4KHC6 | 6.5 GPM | +32°F to +280°F | Mechanical | 7.9 ft. | Steel | 1 1/2 hp | 3/8" | 5/8" | €515.50 | |
| 4KHC7 | 10.2 GPM | +32°F to +280°F | Mechanical | 12.3 ft. | Steel | 1 1/2 hp | 1/2" | 5/8" | €534.18 |
