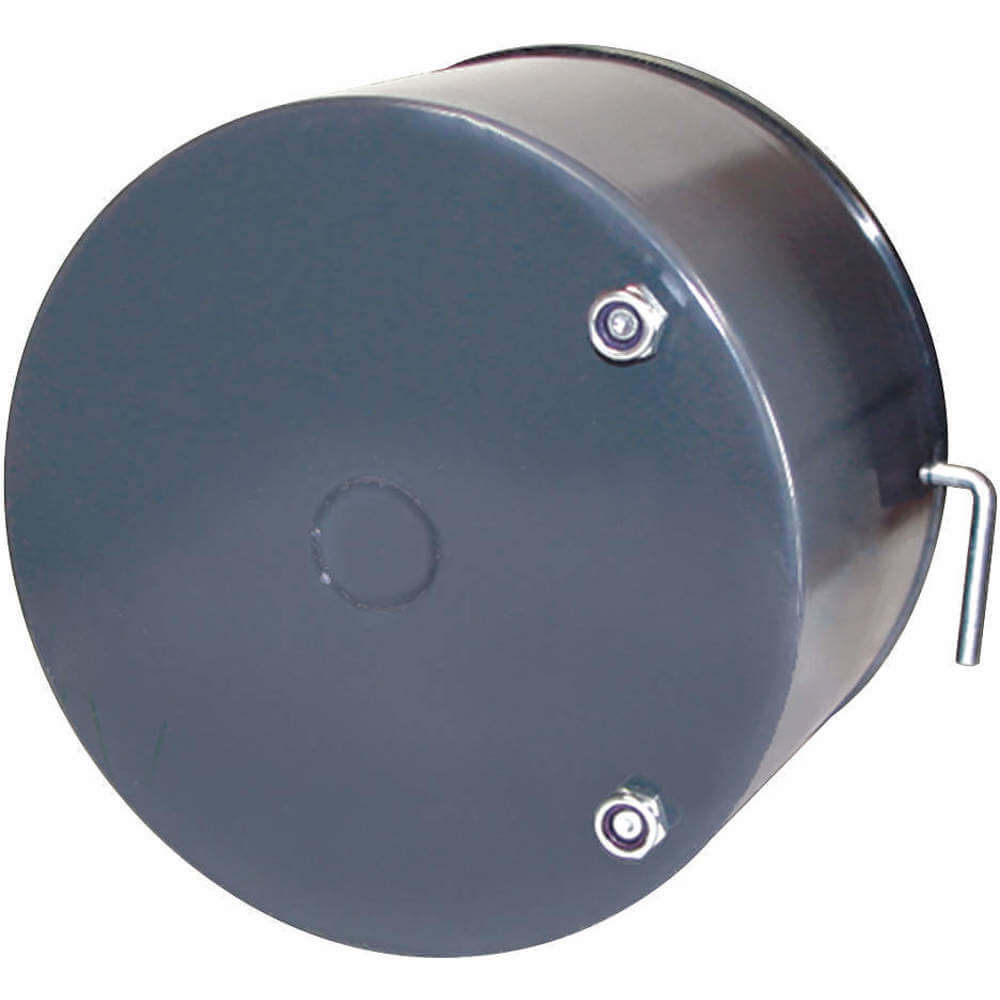

DAYTON 5URA2 Brake End Mount Torque 10 Ft-lb
Item: AE6RAAModel: 5URA2
7 In Stock
Ships within 2 days via
10.00% off
€948.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Brake |
| Ambient (c) | 40 Degrees |
| Amps Holding | 0.5/0.3 |
| Application | Brake Attaches To The Accessory End Of A Motor To Stop And Hold The Motor Shaft |
| Brake Mouting Position | Horizontal |
| Clutch/brake Type | End Mount Disc |
| Coil Voltage | 115/208-230V AC |
| Continuous Duty | Yes |
| Converts | Motor To A Brake Motor |
| Diameter | 6 1/2" |
| Duty Cycle | Continuous |
| Enclosure Type | Dripproof |
| Finish | Primed |
| Frequency | 50/60 Hz |
| Function | Stops And Holds A Motor Shaft From Rotating |
| Holding Current | 0.3/0.2A |
| Housing Material Finish | Red Primer |
| Hp @ Rpm | 1 hp @ 3450 RPM, 1/2 hp @ 1725 RPM |
| Includes | Brake And Instruction Manual |
| Inrush Amps | 11.5/5.8 |
| Inrush Amps | 6.7/3.4A |
| Keyseat Size | 3/16" x 3/32" |
| Keyseat Size (in.) | 3/16 x 3/32 |
| Keyway Depth | 3/32" |
| Keyway Width | 3/16" |
| Lever Release | Manual |
| Lever Type | Manual Release |
| Max. Bore | 7/8" |
| Max. Hp @ 1725 Rpm | 2 |
| Max. Hp @ 3450 Rpm | 3 |
| Max. Hp @ 3450 Rpm | 3 hp |
| Max. Rpm | 3600 RPM |
| Maximum Ambient Temperature | 40°C |
| Mounting Location | 56C Motor Flange |
| Mounting Orientation | Horizontal |
| Mounts On | 143/145TC Motor Flange |
| Outside Dia. | 6 1/2" |
| Outside Diameter | 6.5" |
| Overall Length | 4" |
| Overall Width | Not Applicable |
| Phase | Single |
| Power Lead Length | 18" |
| Power Lead Length (in.) | 18 |
| Service Factor | 1.4 |
| Shaft Dia. | 5/8" |
| Static Torque | 3 lbs.-ft. |
| Static Torque | 10 Ft.-Lb. |
| Type | End Mount Disc |
| Voltage @ 50 Hz | 95/174-190 |
| Voltage @ 60 Hz | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 3.4 |
| Ship height (cm) | 22.1 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 19.05 |
| HS code | 8505200000 |
| Country of Origin | US |
Product Variants
| Model | Static Torque | Type | Enclosure Type | Shaft Dia. | Max. Rpm | Price | |
|---|---|---|---|---|---|---|---|
| 5URA0 | 3 lbs.-ft. | End Mount Disc | Dripproof | 5/8" | 3600 RPM | €1,094.58 | |
| 5URA1 | 3 lbs.-ft. | End Mount Disc | Dripproof | 5/8" | 3600 RPM | €891.33 | |
| 5URA3 | 15 lbs.-ft. | End Mount Disc | Dripproof | 5/8" | 3600 RPM | €1,055.50 | |
| 5URA4 | 3 lbs.-ft. | End Mount Disc | Dripproof | 5/8" | 3600 RPM | €1,034.39 | |
| 5URA5 | 6 lbs.-ft. | End Mount Disc | Dripproof | 5/8" | 3600 RPM | €927.22 | |
| 5URA6 | 10 lbs.-ft. | End Mount Disc | Dripproof | 5/8" | 3600 RPM | €1,025.80 | |
| 5URA7 | 15 lbs.-ft. | End Mount Disc | Dripproof | 5/8" | 3600 RPM | €1,027.25 |
