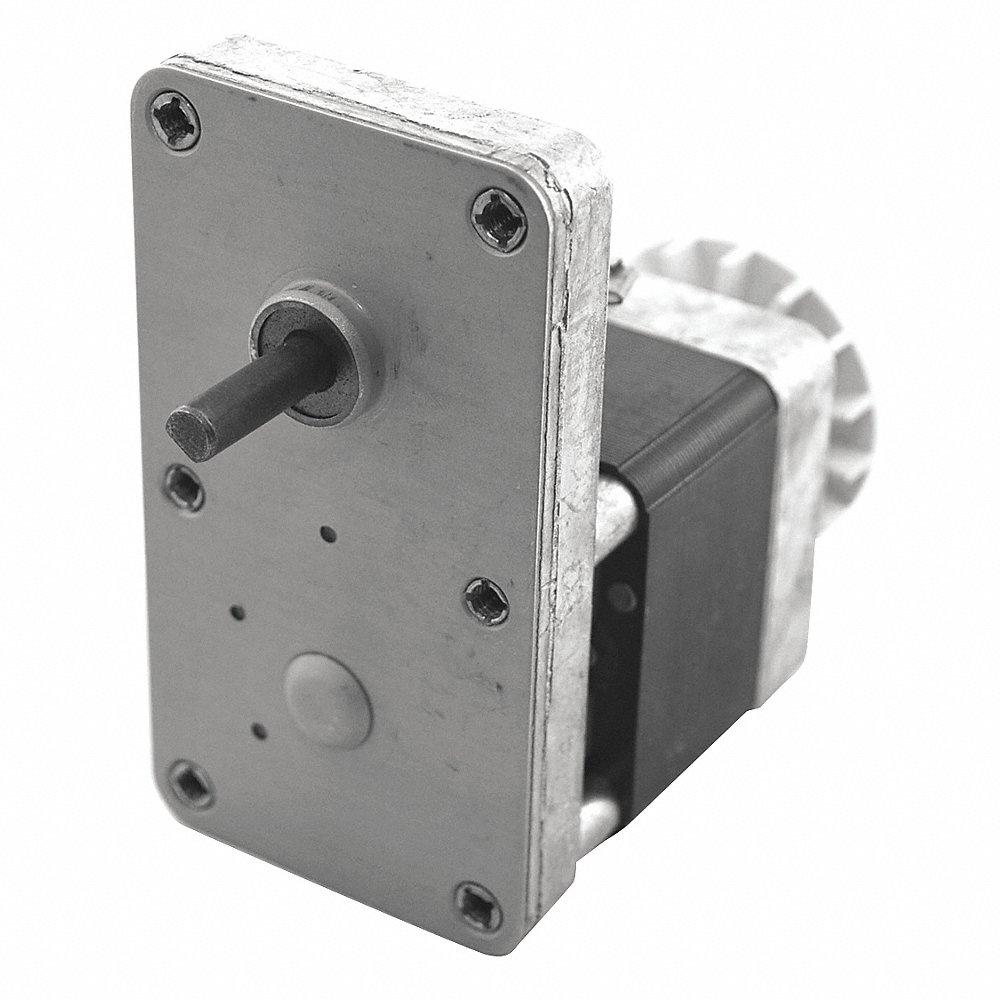

DAYTON 52JE38 AC Gearmotor, 1 RPM, 42 Inch lbs. Max. Torque, Single, CW/CCW, Cone
Item: CH9NGKModel: 52JE38
7 In Stock
Ships within 2 days via
10.00% off
€117.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | AC Gearmotor |
| Application | Agriculture, Amusement Devices, Controls, Conveyors, Dvd Kiosks, Food And Restaurant Equipment, Ice Dispensing, Industrial Machinery, Ingredient Motors, Mail Sorting, Packaging, Pellet And Corn Stoves, Power Transmission, Printing Press, Pumps, Security Systems, Ticket Dispensing, Valve Actuators, Vending, Water Softeners, X-Ray Equipment |
| Base To Center Of Shaft | 1.09" |
| Bearing Type | Sintered Bronze Sleeve |
| Brake Type | Cone |
| Capacitor Required | Yes |
| Enclosure Type | Open |
| Frequency | 50/60 Hz |
| Full Load Current | 0.35A |
| Gear Material | Sintered Steel |
| Gear Ratio | 2541.1:1 |
| Gear Type | Spur |
| Gearmotor Brake Type | Cone |
| Gearmotor Enclosure | Open |
| Gearmotor Mounting Position | Horizontal |
| Gearmotor Shaft Orientation | Parallel |
| Housing Material | Die Cast Zinc |
| Housing Material Finish | Unpainted |
| Input Horsepower | 0.1 hp |
| Input Hp | 1/10 hp , 1/100 hp |
| Length Less Shaft | 3 22/25" |
| Lubrication | Grease Filled |
| Maximum Ambient Temperature | 104°F |
| Maximum Torque | 42 lbs.-in. |
| Motor Enclosure | Open Air Over |
| Motor Insulation Class | Class B |
| Motor Shaft Design | Flat |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center-to-center Length | 3.53" |
| Mount Hole Center-to-center Width | 1.69" |
| Mount Type | Horizontal |
| Mounting Orientation | Horizontal |
| Nameplate Speed | 1 RPM |
| No Load Speed | 1.4 RPM |
| Number Of Brake Discs Required | 0 |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115V AC |
| Output Shaft Dia. | 1/4" |
| Output Shaft Height | 1.09" |
| Output Shaft Length | 1" |
| Overall Height | 4.3" |
| Overall Length | 3.86" |
| Overall Width | 2.19" |
| Overhung Load Capacity | 30 lbs.-ft. |
| Phase | Single |
| Reversible Shaft Output | Yes |
| Rotation | CW/CCW |
| Service Factor | 1 |
| Shaft | Single Output |
| Shaft Dia. | 1/4" |
| Shaft Orientation | Parallel |
| Standards | Ul Recognized |
| Starting Torque | 56 lbs.-in. |
| Thermal Protection | Auto |
| Type | Permanent Split Capacitor |
Shipping Info:
| Ship weight (kg) | 1.28 |
| Ship height (cm) | 10.92 |
| Ship length (cm) | 12.38 |
| Ship width (cm) | 5.56 |
| Country of Origin | MX |
Product Variants
| Model | Mounting Orientation | Base To Center Of Shaft | Gear Ratio | Nameplate Rpm Range | Length Less Shaft | Overall Length | Type | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 52JE32 | Any Angle | 1.09" | 643.5:1 | 0-15 RPM | 3 1/2" | 3 1/2" | Permanent Split Capacitor | 0.312" | €113.38 | |
| 52JE34 | Any Angle | 1.09" | 49.9:1 | 51-75 RPM | 3 1/2" | 3 1/2" | Permanent Split Capacitor | 1/4" | €113.26 | |
| 52JE35 | Any Angle | 1.09" | 30.6:1 | 76-100 RPM | 3 1/2" | 3 1/2" | Permanent Split Capacitor | 1/4" | €113.26 | |
| 52JE36 | Any Angle | 1.09" | 123.1:1 | 16-30 RPM | 3 1/2" | 3 1/2" | Permanent Split Capacitor | 1/4" | €113.38 | |
| 52JE37 | Any Angle | 1 1/25" | 12:1 | - | 4" | 3.82" | Permanent Split Capacitor | 0.312" | €133.13 | |
| 52JE39 | Horizontal | 1.09" | 654.2:1 | 0-15 RPM | 3 22/25" | 3.86" | Permanent Split Capacitor | 1/4" | €130.77 | |
| 52JE40 | Horizontal | 1.09" | 360.1:1 | 0-15 RPM | 3 22/25" | 3.86" | Permanent Split Capacitor | 1/4" | €130.64 |
