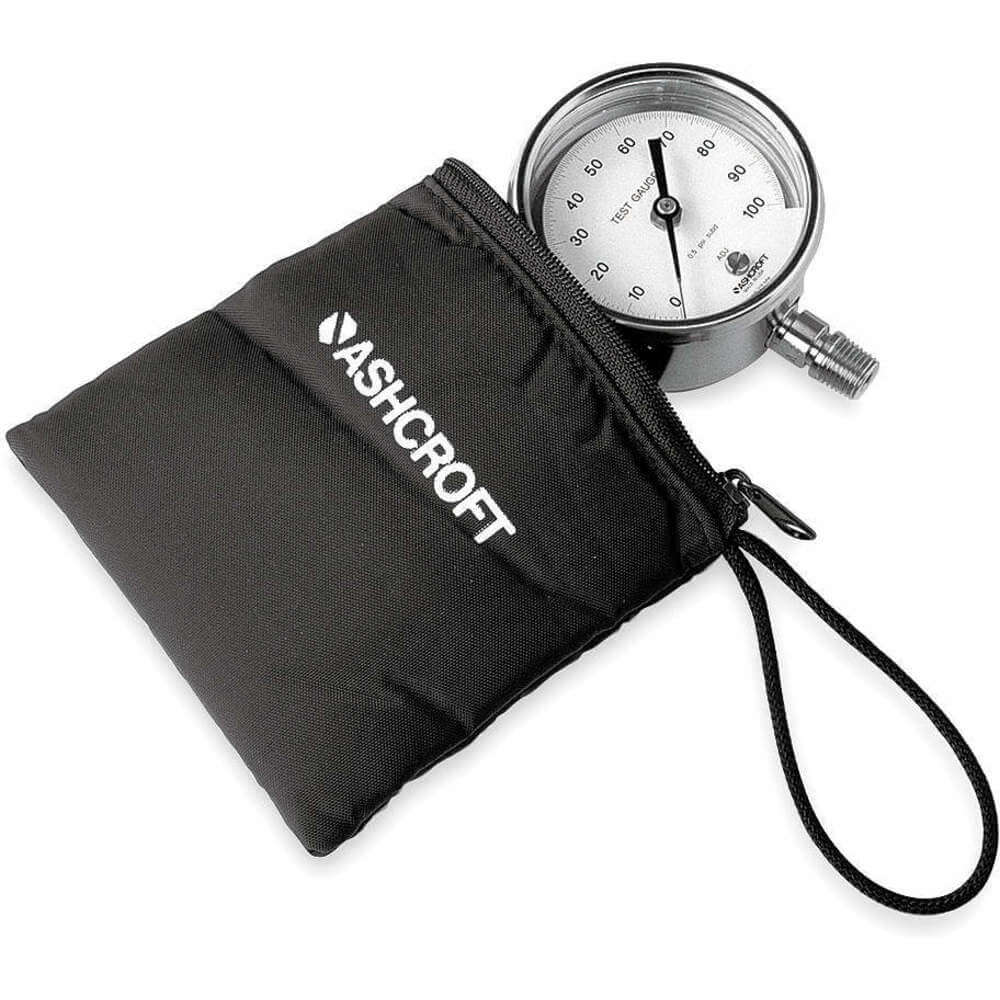

ASHCROFT 301084S02LVACC4 Vacuum Test Gauge, Pocket Test Pressure Gauge, Included, Grade 2A - Process/Pocket Test
Item: AC3BXAModel: 301084S02LVACC4Cross Ref: 2RFC5
7 In Stock
Ships within 2 days via
10.00% off
€431.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Vacuum Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | Adjustable Main Pointer |
| Ambient Operating Temperature Range | -20°F to +200°F |
| Application | Water Pressure Testing |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Lens Material | Glass |
| Basic Gauge Sensor Material | Stainless Steel |
| Basic Gauge Socket Material | Stainless Steel |
| Bezel Material | Polycarbonate |
| Blowout Safety Back | No |
| Calibration Certificate | NIST With Data |
| Case Color | Stainless Steel |
| Case Construction | Open Front |
| Case Depth | 1.468" |
| Case Dia. | 3 1/4" |
| Case Diameter | 3.25" |
| Case Finish | PTFE Coated |
| Case Grade | Grade 316 |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Water |
| Connection Location | Bottom |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dial Size | 3" |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 2A Process, Pocket Test |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 316L |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 3" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | In Hg |
| Gauge Type | Test |
| Gauge Wetted Parts | Stainless Steel |
| Grade | Grade 316 |
| Hazardous Location Rating | Not Rated |
| Includes | Nylon Pouch With Carry Strap |
| Includes Mounting Hardware | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Polycarbonate |
| Liquid Filled | No |
| Material Grade | Grade 316L |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Nominal Dial Size | 3" |
| Panel-mountable | No |
| Pointer Characteristics | Knife-Edge |
| Pointer Color | Red Tip |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Vacuum Gauge |
| Pressure Gauge Type | Test Pressure Gauge |
| Pressure Range | 30 in. hg to 0 in. hg |
| Pressure Range Type | Vacuum |
| Primary Pressure Scale Color | Black |
| Primary Range | 30 to 0 |
| Primary Scale Minor Graduations | 0.5 |
| Primary Scale Units | In Hg |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -20°F to +250°F |
| Range | 0 in. hg to 30 in. hg |
| Removable Bezel | No |
| Ring Material | Polished Stainless Steel |
| Scale Type | Single |
| Sensor Material | 316L Stainless Steel |
| Sensor Type | Bourdon Tube |
| Series | 1084 Series |
| Smallest Graduation | 0.5 in. hg |
| Socket Material | 316L Stainless Steel |
| Test Pressure Gauge Type | Pocket Test Pressure Gauge |
| Tube Grade | Grade 316 |
| Wetted Parts Material | Stainless Steel |
| With Calibration Certificate | With Calibration Certificate |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 3.73 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 8.26 |
| HS code | 9026204000 |
| Country of Origin | US |
Product Variants
| Model | Pressure Range Type | Pressure Range | Primary Scale Units | Smallest Graduation | Primary Scale Minor Graduations | Range | Primary Range | Graduations | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 30-1084S 02L 100 PSI | Pressure | 0 psi to 100 psi | Psi | 1 psi | 1 | 0 psi to 100 psi | 0 to 100 | 10 psi | €312.09 | |
| 30-1084S 02L 1 000 PSI | Pressure | 0 psi to 1000 psi | Psi | 10 psi | 10 | 0 psi to 1000 psi | 0 to 1000 | 100 psi | €312.09 | |
| 30-1084S 02L 200 PSI | Pressure | 0 psi to 200 psi | Psi | 2 psi | 2 | 0 psi to 200 psi | 0 to 200 | 20 psi | €312.09 | |
| 30-1084S 02L 30 PSI | Pressure | 0 psi to 30 psi | Psi | 0.2 psi | 0.2 | 0 psi to 30 psi | 0 to 30 | 5 psi | €312.09 | |
| 30-1084S 02L 300 PSI | Pressure | 0 psi to 300 psi | Psi | 2 psi | 2 | 0 psi to 300 psi | 0 to 300 | 20 psi | €312.09 | |
| 30-1084S 02L 60 PSI | Pressure | 0 psi to 60 psi | Psi | 0.2 psi | 0.2 | 0 psi to 60 psi | 0 to 60 | 5 psi | €312.09 | |
| 30-1084S 02L 600 PSI | Pressure | 0 psi to 600 psi | Psi | 5 psi | 5 | 0 psi to 600 psi | 0 to 600 | 50 psi | €312.09 |
