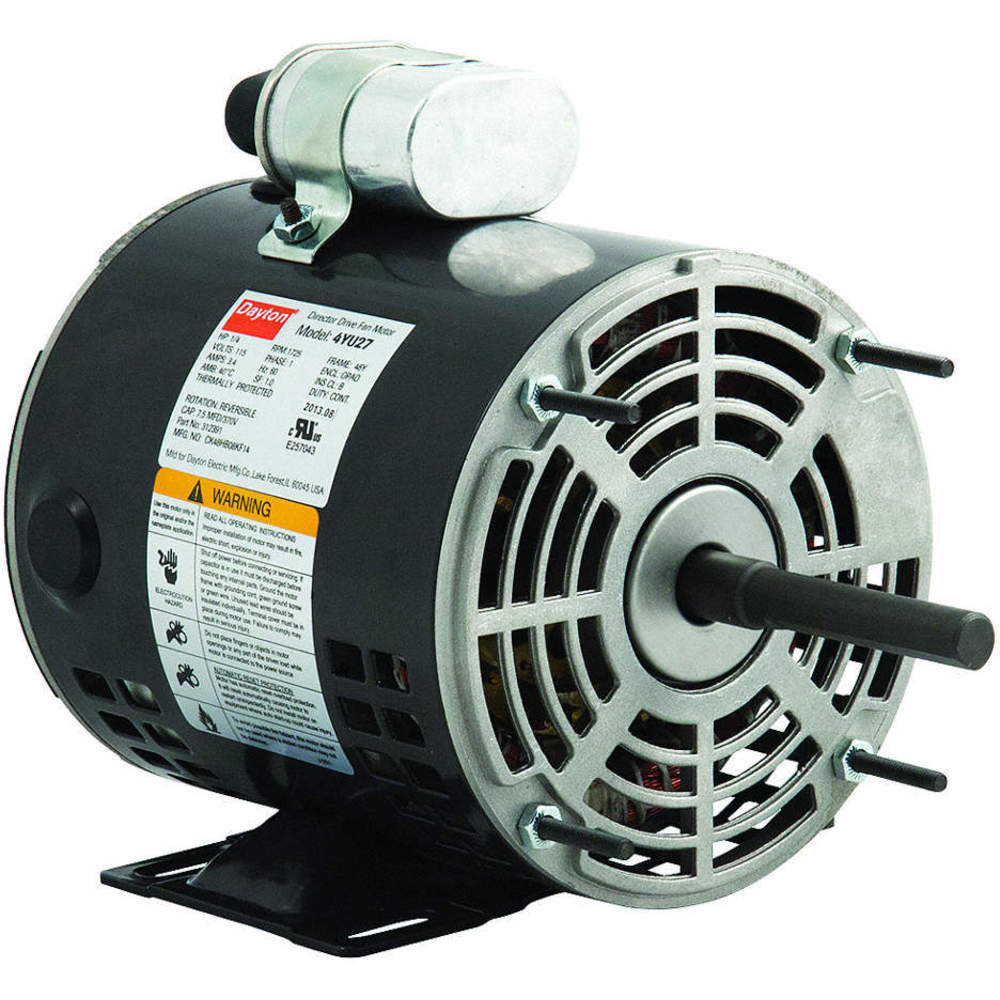

DAYTON 4YU27 Motor Psc 1/4 Hp 1725 Rpm 115v 48z Oao
3.6A
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€283.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Bolt Circle Dia. | 5 1/8" |
| Capacitor Included | Yes |
| Capacitor Required | Included |
| Conduit Box Position | F3 |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 3.6A |
| Hp | 1/4 hp |
| Includes | Capacitor |
| Insulation Class | Class B |
| Length Less Shaft | 7 5/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Holes | (4) #10-32 |
| Mounting Stud Location | Shaft End |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Mounting Holes | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Number Of Mounting Holes | 4 |
| Number Of Shafts | 1 |
| Number Of Studs | 4 |
| Overall Length | 10 7/16" |
| Phase | 1 |
| Replacement For | 2RB87, 4HZ37G, 4HZ39G, 4HZ41G, 4HZ43G, 5DVT0 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 3 1/4" |
| Shaft Type | Flat |
| Stud Location | Shaft End |
| Stud Pattern | 3 5/8" |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 32.26 |
| Ship width (cm) | 21.34 |
| HS code | 8501404040 |
| Country of Origin | US |
Product Details:
Dayton 4YU27 permanent split capacitor (PSC) motor comes with a capacitor that reduces the amount of power consumed for a given load, making it more energy-efficient than shaded pole motors.
Features:
- Dayton 4YU27 permanent split capacitor (PSC) motor has a rigid base for installation on flat surfaces and pedestals.
- This direct drive blower motor offers all position mounting options with minimum noise and vibration.
- It has a forward curve style wheel and a rectangular outlet to maximise the airflow.
- The Class B motor insulation offers safety and the open motor enclosure provides cool operation.
- This permanent split capacitor (PSC) motor has a continuous duty cycle for efficient operation.
Standards and Approvals:
- CSA
- UL
Frequently Asked Questions:
Q. What is the maximum ambient temperature of this Dayton 4YU27 motor?
A. This Dayton 4YU27 motor provides a maximum ambient temperature of 40 degrees C.
Q. What is the motor shaft design of this Dayton 4YU27 motor?
A. Dayton 4YU27 motor has a flat motor shaft design.
Q. What are the different types of motor rotation direction codes?
A. CWLE, CCWLE, CWSE & CCWSE are some of the different types of motor rotation direction codes. These codes indicate whether the motor shaft rotates clockwise (CW) or counter-clockwise (CCW) as seen from the shaft end (SE) or the lead end (LE).
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Motor Type | Shaft Dia. | Motor Shaft Rotation | Hp | No. Of Speeds | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AGF8 | 115V AC | 1550 RPM | Shaded Pole | 1/2" | Counter Clockwise Shaft End | 1/17 hp | 3 | 2 3/4" | €288.91 | |
 |
1AGF9 | 115V AC | 1550 RPM | Permanent Split Capacitor | 1/2" | Counter Clockwise Shaft End | 1/8 hp | 3 | 3 3/4" | €309.38 | |
 |
3LU71 | 115V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/6 hp | 4 | 6" | €179.41 | |
 |
3LU72 | 208-230V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/6 hp | 4 | 5 13/16" | €263.33 | |
 |
3LU73BG | 115V AC | 1625 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 3 | 6" | €346.96 | |
 |
3LU74 | 208-230V AC | 1625 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 3 | 6" | €379.29 | |
 |
3LU75 | 115V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 4 | 6" | €319.51 |
