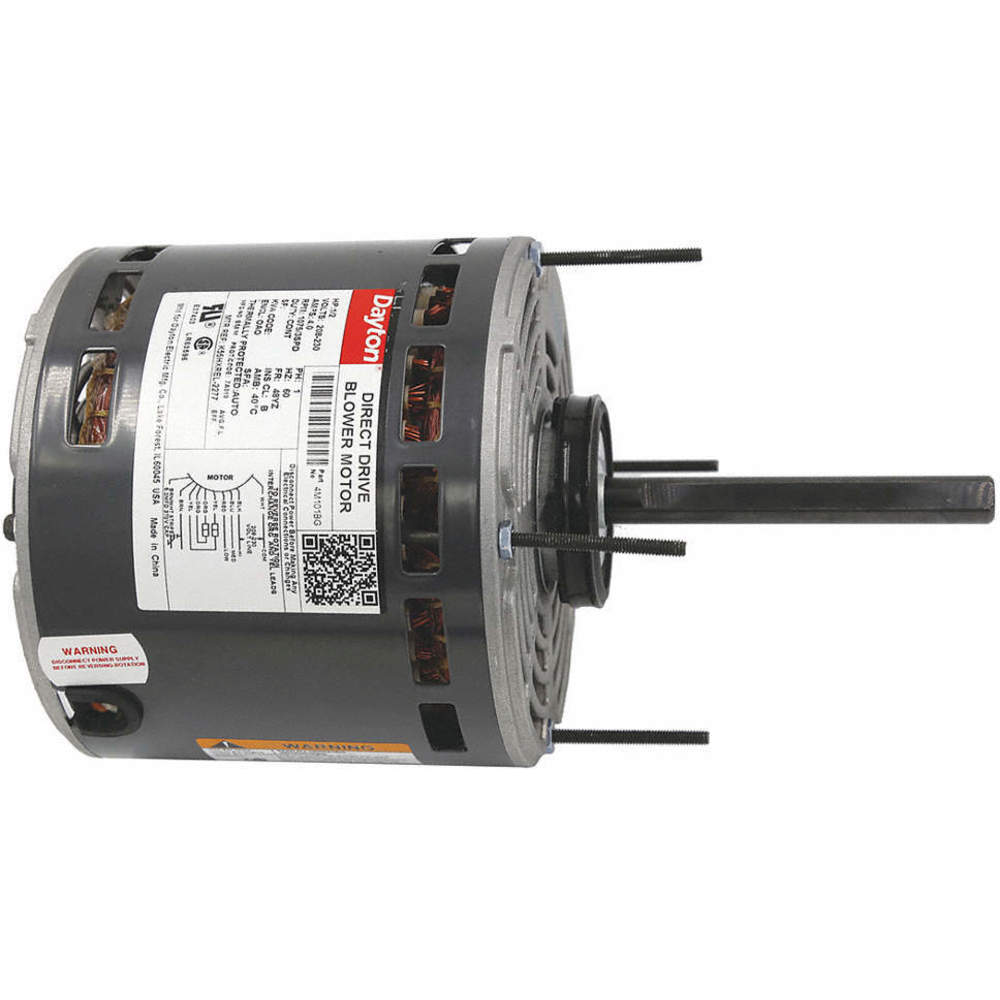

DAYTON 4M101 Motor 1/2hp Direct/drive Blower
4A
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€289.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Bearing Type | Sleeve |
| Body Dia. | 5 5/8" |
| Bolt Circle Dia. | 5 1/8" |
| Capacitor Included | No |
| Capacitor Required | 2MDV4 |
| Duty Cycle | Continuous |
| Frame | 48YZ |
| Frequency | 60 Hz |
| Full Load Amps | 4A |
| Full Load Efficiency | 58.5% |
| Hp | 1/2 hp |
| Includes | Split Rings To Increase Ring Diameter To 2 1/2 In |
| Insulation Class | Class B |
| Length Less Shaft | 6 3/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Resilient Ring Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Direct Drive |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting | Stud |
| Mounting Type | Resilient Ring Extended Studs |
| Nameplate Rpm | 1075 RPM |
| No. Of Speeds | 3 |
| Nominal Efficiency | 58.5% |
| Overall Length | 10 3/16" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/4" |
| Ring To Ring Center | 5 3/4" |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 4" |
| Shaft Type | Flat |
| Thermal Protection | Automatic |
| Voltage | 208-230V AC |
Shipping Info:
| Ship weight (kg) | 5.22 |
| Ship height (cm) | 19.56 |
| Ship length (cm) | 29.97 |
| Ship width (cm) | 20.07 |
| HS code | 8501404040 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Motor Type | Shaft Dia. | Motor Shaft Rotation | Hp | No. Of Speeds | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AGF8 | 115V AC | 1550 RPM | Shaded Pole | 1/2" | Counter Clockwise Shaft End | 1/17 hp | 3 | 2 3/4" | €288.91 | |
 |
1AGF9 | 115V AC | 1550 RPM | Permanent Split Capacitor | 1/2" | Counter Clockwise Shaft End | 1/8 hp | 3 | 3 3/4" | €309.38 | |
 |
3LU71 | 115V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/6 hp | 4 | 6" | €179.41 | |
 |
3LU72 | 208-230V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/6 hp | 4 | 5 13/16" | €263.33 | |
 |
3LU73BG | 115V AC | 1625 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 3 | 6" | €346.96 | |
 |
3LU74 | 208-230V AC | 1625 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 3 | 6" | €379.29 | |
 |
3LU75 | 115V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 4 | 6" | €319.51 |
