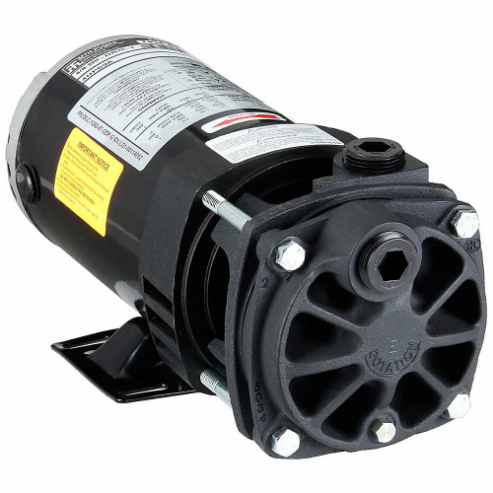

DAYTON 4UP53A Turbine Pump, 3/4 HP, 115/208-230V
Get it by Wednesday, Dec 24
10.00% off
€1,351.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Turbine pump |
| Best Efficiency Head | 78 ft. |
| Compatible Discharge Pipe Size | 1" |
| Compatible Intake Pipe Size | 1" |
| Compatible With Media Type | Water |
| Connection Type | NPT |
| Discharge Rotation | 90° Increments |
| Discharge Rotation Increments | 90° |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Face Seal Material | Buna N, Carbon, Ceramic |
| Flow Rate @ 10 Psi | 8.9 GPM |
| Flow Rate @ 100 Psi | 6.3 GPM |
| Flow Rate @ 120 Psi | 5.65 GPM |
| Flow Rate @ 140 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 160 Psi | Not Applicable |
| Flow Rate @ 180 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 8.6 GPM |
| Flow Rate @ 200 Psi | Not Applicable |
| Flow Rate @ 220 Psi | Not Applicable |
| Flow Rate @ 240 Psi | Not Applicable |
| Flow Rate @ 260 Psi | Not Applicable |
| Flow Rate @ 30 Psi | 8.4 GPM |
| Flow Rate @ 40 Psi | 8.1 GPM |
| Flow Rate @ 50 Psi | 7.8 GPM |
| Flow Rate @ 60 Psi | 7.5 GPM |
| Flow Rate @ 70 Psi | 7.05 GPM |
| Flow Rate @ 80 Psi | 6.85 GPM |
| Flow Rate @ 90 Psi | 6.6 GPM |
| For Media Type | Water |
| Housing Material | Cast Iron |
| Hp | 3/4 hp |
| Impeller Design | Regenerative Turbine |
| Impeller Material | Bronze |
| Impeller Type | Regenerative Turbine |
| Includes | Cast Casing |
| Inlet Pressure | 200 psi |
| Intake And Discharge Size | 1", 1" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Case Pressure | 300 psi |
| Max. Dia. Solids | 25 µm |
| Max. Flow Rate | 8.9 GPM |
| Max. Specific Gravity | 1 |
| Media Type | Water |
| Min. Flow Rate | 6.3 GPM |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Designation | 56C |
| Motor Type | Capacitor Start |
| Nameplate Voltage | 115/208-230V AC |
| Npshr | 200 psi |
| Outlet | 1" |
| Overall Height | 6 1/2" |
| Overall Width | 6 1/2" |
| Phase | Single |
| Pump Housing Material | Cast Iron |
| Shut Off Pressure | 145 psi |
| Shut Off Pressure (maximum) | 145 psi |
| Solid Diameter (maximum) | 25 µm |
| Specific Gravity (maximum) | 1 |
| Wetted Material | Bronze Fitted, Cast Iron |
| Wetted Materials | Bronze Fitted, Cast Iron |
Shipping Info:
| Ship weight (kg) | 18.72 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 16.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Flow Rate @ 10 Psi | Flow Rate @ 20 Psi | Flow Rate @ 30 Psi | Motor Enclosure Design | Nameplate Voltage | Shut Off Pressure | Compatible Intake Pipe Size | Compatible Discharge Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4JPE9 | 18.7 GPM | 17.8 GPM | 16.8 GPM | Totally Enclosed Fan Cooled | - | 120 psi | 1" | 1" | €1.24 | |
 |
4JPF6 | 7.6 GPM | 7.3 GPM | 7.1 GPM | Open Dripproof | 208-230/460V AC | 120 psi | 1 1/4" | 1" | €1,591.67 | |
 |
4JPF9 | 9.7 GPM | 9.2 GPM | 8.8 GPM | Totally Enclosed Fan Cooled | 208-230/460V AC | 140 psi | 1 1/4" | 1" | €1,721.31 | |
 |
4JPG1 | 22.5 GPM | 21.5 GPM | 20.5 GPM | Totally Enclosed Fan Cooled | 115/208-230V AC | 100 psi | 1 1/4" | 1" | €2,160.54 | |
 |
4JPG2 | 22.5 GPM | 21.5 GPM | 20.5 GPM | Totally Enclosed Fan Cooled | 208-230/460V AC | 100 psi | 1 1/4" | 1" | €1,736.40 | |
 |
4UP50 | 3.35 GPM | 3.15 GPM | 2.95 GPM | Open Dripproof | 115/208-230V AC | 125 psi | 3/4" | 3/4" | €1,288.35 | |
 |
4UP58 | 25 GPM | 23.7 GPM | 22.8 GPM | Totally Enclosed Fan Cooled | 208-230/460V AC | 85 psi | 1" | 1" | €2,073.97 |
