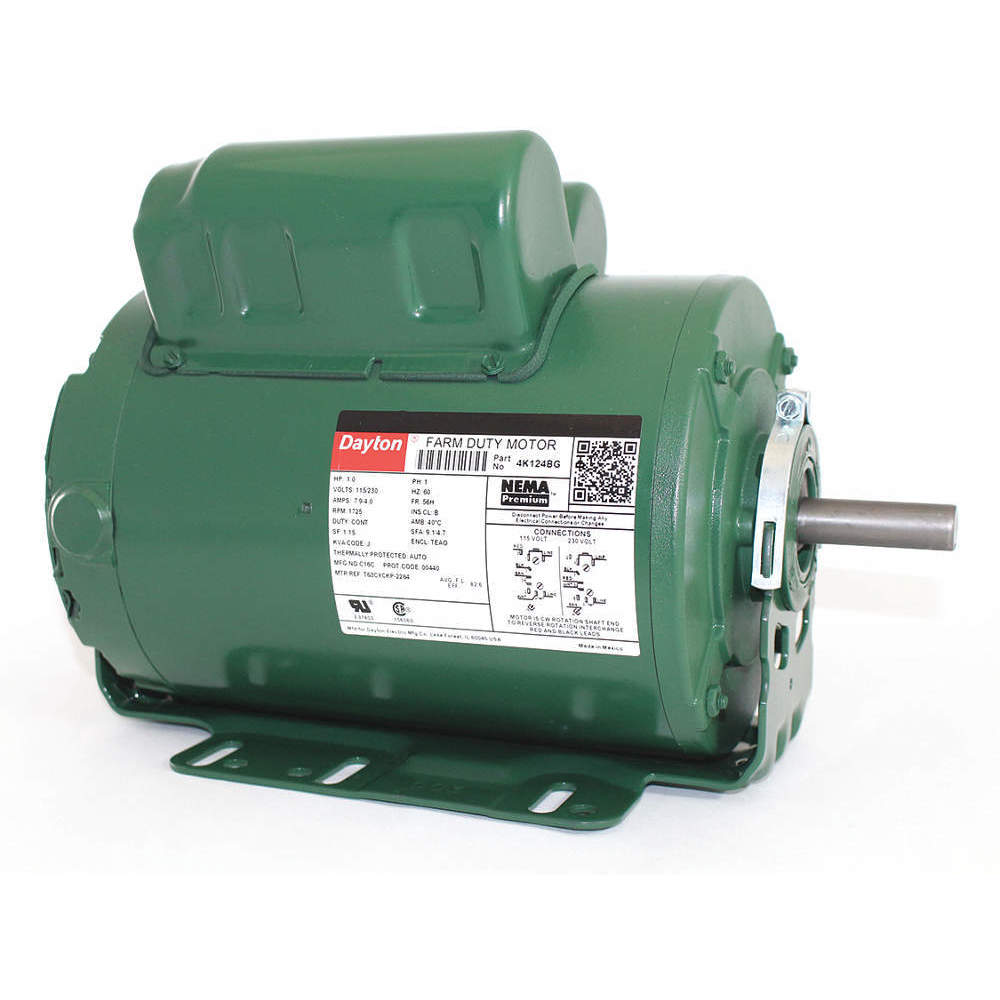

DAYTON 4K124 Farm Duty Motor CS-CR TEAO 1hp 1725rpm
Get it by Tuesday, Dec 23
10.00% off
€532.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor Required | Included |
| Duty | Continuous Air Over |
| Duty Cycle | Continuous |
| Efficiency | 82.6% |
| Frame | 56H |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 7.9/4A |
| Hp | 1 hp |
| Includes | Gasketed Terminal Access Cover And Capacitor Cover, Shaft Key And Shaft Slinger |
| Ins. Class | Class B |
| Length Less Shaft | 10 1/2" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Agricultural Fan |
| Motor Thermal Protection | Auto |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 82.6% |
| Number Of Speeds | 1 |
| Overall Length | 12 3/8" |
| Phase | 1 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Automatic |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 14.14 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 46.99 |
| Ship width (cm) | 30.48 |
| Country of Origin | US |
Product Variants
| Product | Model | Motor Mounting Type | Mounting Type | Overall Length | Efficiency | Voltage | Hp | Nameplate Rpm | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

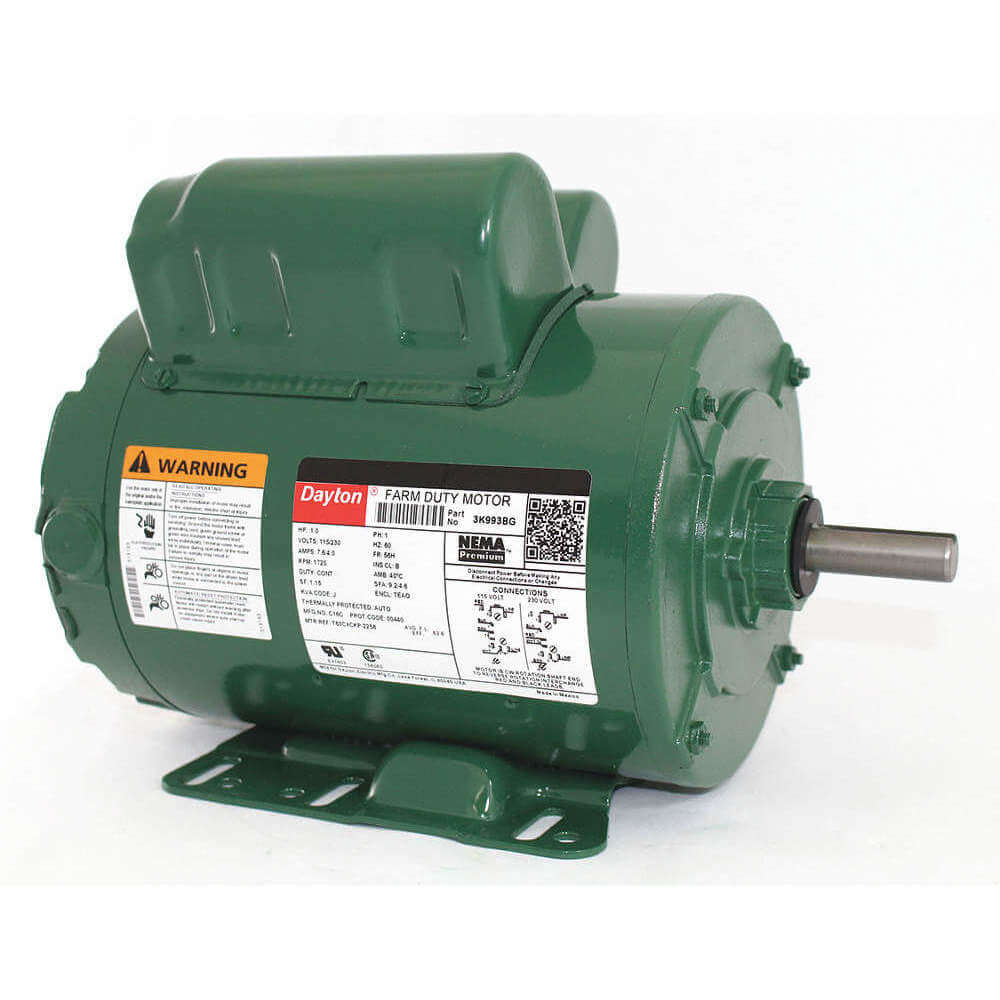

3K993 | Rigid Base | Rigid Base | 11 15/16" | 80% | 115/230V AC | 1 hp | 1725 RPM | Totally Enclosed Air Over | €542.26 |
