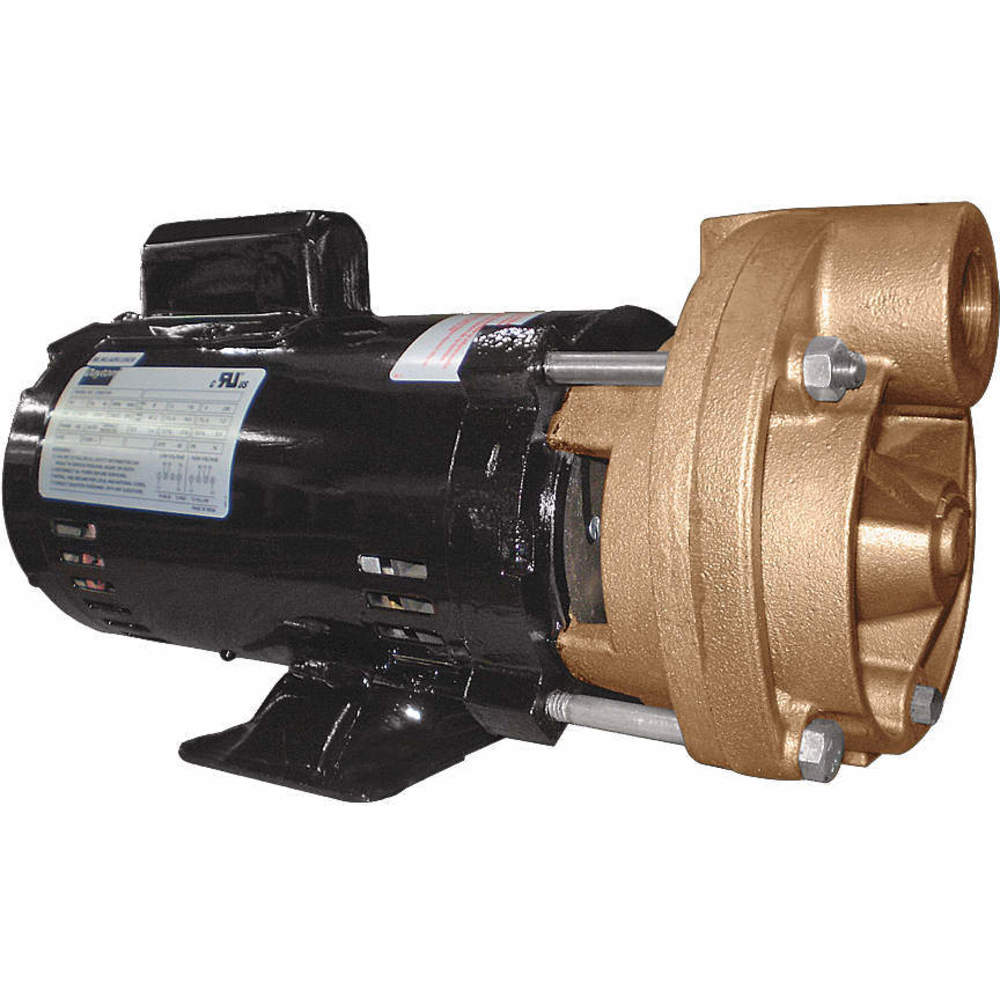

DAYTON 4JPE2 Turbine Pump 1 Hp 1-phase 14.4/7.2 Amp
Get it by Tuesday, Dec 23
10.00% off
€1,890.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Turbine pump |
| Amps | 14.4/7.2A |
| Bearing Type | Ball |
| Best Efficiency Flow Range @ Head | 25 to 65 GPM @ 10.9 to 8.7 to ft. |
| Best Efficiency Flow Rate @ Head | 9.4 GPM @ 50 ft. |
| Best Efficiency Head | 50 ft. |
| Bracket Finish | Nickel Plated |
| Compatible Discharge Pipe Size | 1" |
| Compatible Intake Pipe Size | 1 1/4" |
| Connection Type | NPT |
| Cover Material | Cast Iron |
| Drain Plug | Easily Accessible At Bottom |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Face Seal Material | Buna N, Carbon, Ceramic |
| Features | Designed To Handle Liquids With Entrained Air |
| Flow Rate @ 10 Psi | 11.2 GPM |
| Flow Rate @ 100 Psi | 3 GPM |
| Flow Rate @ 120 Psi | 0 GPM |
| Flow Rate @ 140 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 160 Psi | Not Applicable |
| Flow Rate @ 180 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 11.1 GPM |
| Flow Rate @ 200 Psi | Not Applicable |
| Flow Rate @ 220 Psi | Not Applicable |
| Flow Rate @ 240 Psi | Not Applicable |
| Flow Rate @ 260 Psi | Not Applicable |
| Flow Rate @ 30 Psi | 10.6 GPM |
| Flow Rate @ 40 Psi | 10 GPM |
| Flow Rate @ 50 Psi | 8.6 GPM |
| Flow Rate @ 60 Psi | 8.9 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 75 Psi | 8.3 GPM |
| Flow Rate @ 80 Psi | 8 GPM |
| Flow Rate @ 90 Psi | 7.5 GPM |
| Frame | 56J |
| Frequency | 60 Hz |
| Gasket Material | Buna N |
| Gpm @ 10 Psi | 11.5 |
| Gpm @ 100 Psi | 7 |
| Gpm @ 30 Psi | 10.6 |
| Gpm @ 50 Psi | 9.4 |
| Gpm @ 60 Psi | 8.9 |
| Gpm @ 75 Psi | 8.3 |
| Gpm @ 80 Psi | 8 GPM |
| Grade | Grade 304, Grade 316 |
| Height | 8 1/8" |
| Housing Material | Bronze |
| Hp | 1 hp |
| Impeller Design | Open |
| Impeller Material | Bronze |
| Impeller Type | Open |
| Inlet Pressure | 132 psi |
| Inlet Size | 1" |
| Intake And Discharge Size | 1 1/4", 1" |
| Length | 15 3/4" |
| Max. Case Pressure | 200 psi |
| Max. Flow Rate | 11.2 GPM |
| Max. Media Temp. | 230°F |
| Max. Pressure | 120 psi |
| Max. Specific Gravity | 1 |
| Min. Flow Rate | 3 GPM |
| Min. Media Temp. | -20°F |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Designation | 56J |
| Motor Type | Capacitor-Start, Run |
| Npshr | 132 psi |
| Operation | Manual |
| Outlet | 1" |
| Outlet Size | 1" |
| Outlet Type | NPT |
| Overall Height | 8.13" |
| Overall Width | 6 3/4" |
| Phase | 1 |
| Priming | Self Priming |
| Pump Housing Material | Bronze |
| Rpm | 3450 RPM |
| Rpm (maximum) | 3450 RPM |
| Screw Material | Stainless Steel |
| Seal Application | Long Life When Not Run Dry Or Pumping Abrasives |
| Seal Type | Mechanical Seal |
| Seat Material | Carbon Ceramic |
| Self Priming | Yes |
| Service Factor | 1.4 |
| Shaft Material | Bronze, Stainless Steel |
| Shaft Size | 5/8" |
| Shut Off Pressure | 120 psi |
| Shut Off Pressure (maximum) | 120 psi |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Type | Centrifugal |
| Voltage | 115/230V AC |
| Volute Material | Bronze |
| Wetted Material Grade | Grade 316 , Stainless Steel, Bronze, Buna N, Carbon, Ceramic |
| Width | 6 3/4" |
Shipping Info:
| Ship weight (kg) | 24.3 |
| Ship height (cm) | 34.54 |
| Ship length (cm) | 56.13 |
| Ship width (cm) | 28.45 |
| HS code | 8413702005 |
| Country of Origin | IN |
Product Variants
| Product | Model | Phase | Flow Rate @ 20 Psi | Flow Rate @ 30 Psi | Motor Type | Min. Flow Rate | Flow Rate @ 40 Psi | Flow Rate @ 50 Psi | Flow Rate @ 60 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

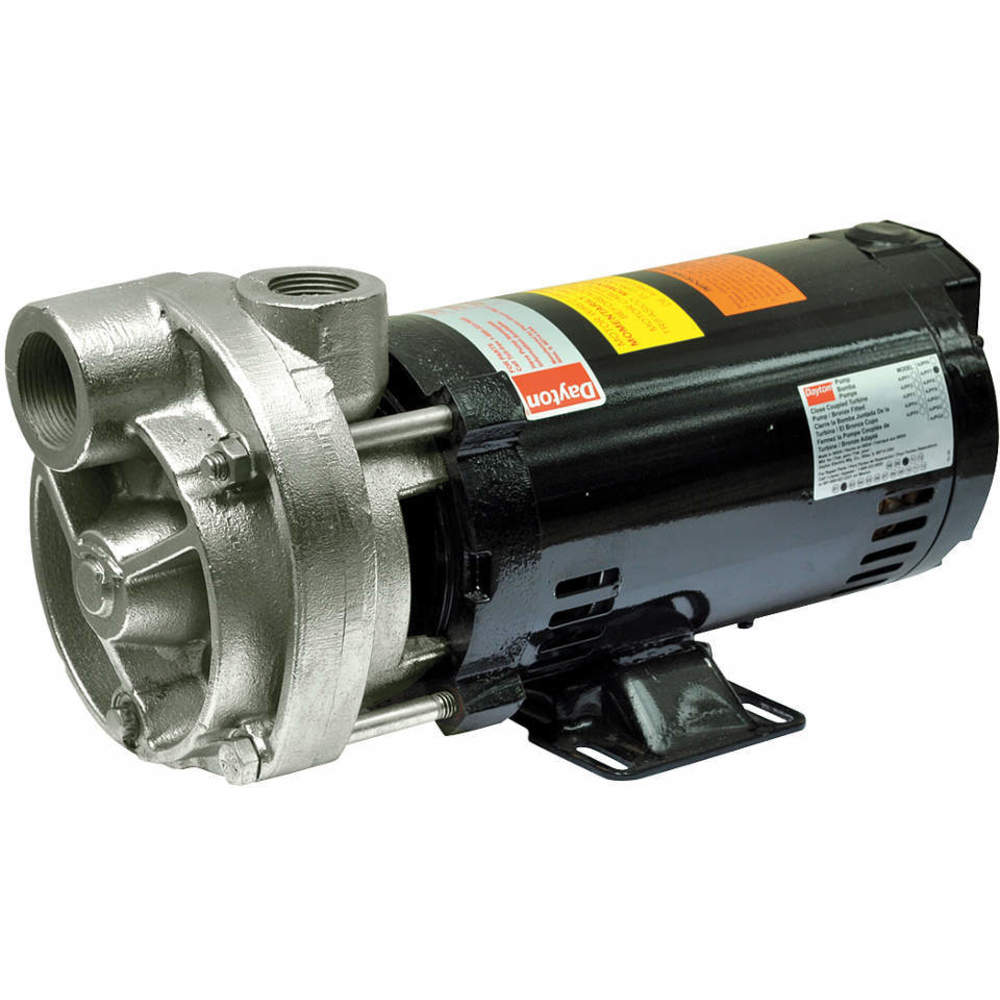

4JPF7 | 3 | 10.9 GPM | 10.5 GPM | Three Phase | 7.6 GPM | 10.1 GPM | 9.7 GPM | 9.2 GPM | €1,627.67 |
