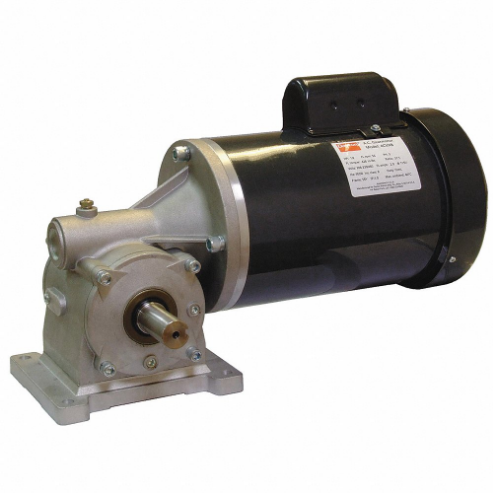

DAYTON 4CVZ2 AC Gearmotor, 84 RPM, 456 Inch lbs. Max. Torque, Single Left, CW/CCW
Get it by Tuesday, Dec 23
10.00% off
€2,235.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Application | Conveyors, Mixers, Printing Press, Pumps |
| Base To Center Of Shaft | 3 1/4" |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Dimension A | 10.78" |
| Dimension Aa | 6 18/25" |
| Dimension Ab | 6" |
| Dimension B | 7.13" |
| Dimension C | 7" |
| Dimension D | 6" |
| Dimension E | 3.22" |
| Dimension F | 5 1/5" |
| Dimension H | 3 1/4" |
| Dimension L | 2 1/2" |
| Dimension N | 11/25" |
| Frequency | 50/60 Hz |
| Full Load Current | 11.2/5.6A |
| Gear Material | Forged Bronze, Hardened Steel |
| Gear Ratio | 211 |
| Gear Type | Worm |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Right Angle |
| Housing Material | Aluminum, Cast Iron |
| Housing Mount Hole Size | 0.406" |
| Includes | Capacitor |
| Input Hp | 3/4 hp |
| Keyway Depth | 1 1/4" |
| Keyway Type | Woodruff |
| Keyway Width | 1/4" |
| Lubrication | Gear Oil |
| Maximum Ambient Temperature | 104°F |
| Maximum Torque | 456 lbs.-in. |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class F |
| Motor Type | Capacitor-Start |
| Mount Hole Center-to-center Length | 6" |
| Mount Hole Center-to-center Width | 5" |
| Mount Type | Any Position |
| Mounting Orientation | Any Angle |
| Nameplate Speed | 84 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115/208-230V AC |
| Output Direction | Left Hand |
| Output Location | Left Hand |
| Output Shaft Dia. | 1" |
| Output Shaft Height | 3 1/4" |
| Output Shaft Length | 2 1/4" |
| Overall Height | 10.66" |
| Overall Length | 17 1/2" |
| Overall Width | 10.14" |
| Overhung Load Capacity | 882 lbs.-ft. |
| Phase | Single |
| Rotation | CW/CCW |
| Seal Type | Oil Seals on Axle Shaft |
| Shaft | Single Output |
| Shaft Orientation | Right Angle |
| Standards | Ul Recognized |
| Starting Torque | 1260 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 23.42 |
| Ship height (cm) | 27.08 |
| Ship length (cm) | 44.45 |
| Ship width (cm) | 25.76 |
| Country of Origin | CN |
Product Variants
| Product | Model | Motor Type | Overhung Load Capacity | Base To Center Of Shaft | Operating Voltage | Gear Ratio | Lubrication | Gear Material | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
4CVZ4 | Capacitor-Start | 980 lbs.-ft. | 3 1/4" | 115/208-230V AC | 391 | Gear Oil | Forged Bronze, Hardened Steel | Ball | €2,564.39 | |
 |
4CUK7 | Capacitor-Start | 1530 lbs.-ft. | 2 1/2" | 115/208-230V AC | 181 | Oil Filled | Hardened Steel, Forged Bronze | Ball On Motor, Roller On Case | €2,202.26 | |
|
4CVZ3 | Capacitor-Start | 980 lbs.-ft. | 3 1/4" | 115/208-230V AC | 581 | Gear Oil | Forged Bronze, Hardened Steel | Ball | €2,484.67 | |
 |

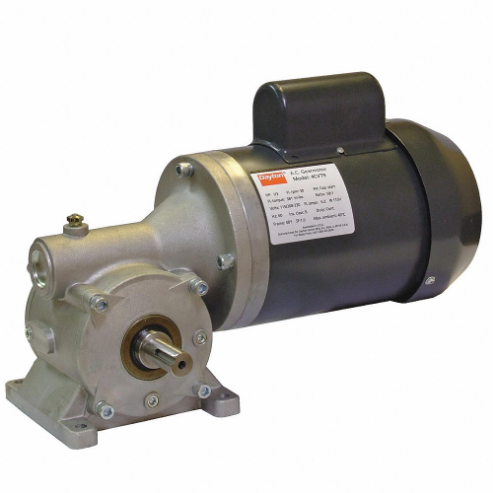

4CVU3 | Capacitor-Start | 670 lbs.-ft. | 2 1/2" | 115/208-230V AC | 391 | Gear Oil | Forged Bronze, Hardened Steel | Ball | €2,176.09 | |
|
4CVT9 | Capacitor-Start | 670 lbs.-ft. | 2 1/2" | 115/208-230V AC | 581 | Gear Oil | Forged Bronze, Hardened Steel | Ball | €2,376.31 | |
|
4CVU5 | Capacitor-Start | 670 lbs.-ft. | 2 1/2" | 115/208-230V AC | 181 | Gear Oil | Forged Bronze, Hardened Steel | Ball | €2,112.42 | |
|
4CVU1 | Capacitor-Start | 670 lbs.-ft. | 2 1/2" | 115/208-230V AC | 391 | Gear Oil | Forged Bronze, Hardened Steel | Ball | €2,150.00 |
