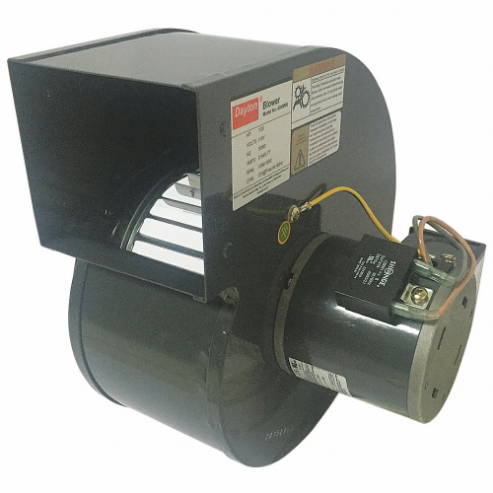

DAYTON 45NM97 OEM Blower, Rectangular, 5 1/8 Inch Wheel Dia., 230V AC
Item: CJ2XTVModel: 45NM97
7 In Stock
1670 RPM
Ships within 2 days via
10.00% off
€122.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | OEM Blower |
| Airflow @ 0.000 In Sp | 271 CFM |
| Airflow @ 0.100 In Sp | 255 CFM |
| Airflow @ 0.125 In Sp | Not Applicable |
| Airflow @ 0.250 In Sp | 219 CFM |
| Airflow @ 0.375 In Sp | Not Applicable |
| Airflow @ 0.400 In Sp | 183 CFM |
| Airflow @ 0.500 In Sp | 135 CFM |
| Airflow @ 0.750 In Sp | Not Applicable |
| Airflow @ 1.000 In Sp | Not Applicable |
| Airflow @ 1.250 In Sp | Not Applicable |
| Airflow @ 1.500 In Sp | Not Applicable |
| Airflow @ 10.00 In Sp | Not Applicable |
| Airflow @ 11.00 In Sp | Not Applicable |
| Airflow @ 12.00 In Sp | Not Applicable |
| Airflow @ 13.00 In Sp | Not Applicable |
| Airflow @ 2.000 In Sp | Not Applicable |
| Airflow @ 2.500 In Sp | Not Applicable |
| Airflow @ 3.000 In Sp | Not Applicable |
| Airflow @ 3.500 In Sp | Not Applicable |
| Airflow @ 4.000 In Sp | Not Applicable |
| Airflow @ 4.500 In Sp | Not Applicable |
| Airflow @ 5.000 In Sp | Not Applicable |
| Airflow @ 6.000 In Sp | Not Applicable |
| Airflow @ 7.000 In Sp | Not Applicable |
| Airflow @ 8.000 In Sp | Not Applicable |
| Airflow @ 9.000 In Sp | Not Applicable |
| Amca Fan Class | Not Rated |
| Amps | 0.43A |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Assembly | Assembled |
| Bearing Type | Ball |
| Blower Conduit Box | Yes |
| Blower Outlet Shape | Rectangular |
| Blower Wheel Diameter | 5 1/8" |
| Blower Wheel Width | 1 7/8" |
| Brake Horsepower | 1/20 hp |
| Chemical Resistant | No |
| Compatible Speed Control | No |
| Corrosion Resistant | No |
| Dimension A | 8 7/8" |
| Dimension C | 7 9/16" |
| Dimension D | 4 1/4" |
| Dimension E | 9 7/8" |
| Dimension F | 3 5/16" |
| Dimension J | 5 1/2" |
| Dimension L | 4 7/8" |
| Dimension M | 4 3/8" |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Drive Type | Direct Drive |
| Features | Open Motor Has Cast-Aluminum End Shields For Greater Heat Dissipation, Resulting In Less Downtime And Longer Service Life, This Dayton Dynamically Balanced Oem Blower Mounts In Any Position And Operates With Minimal Noise And Vibration, To Maintain Cfm At Higher Static Pressures |
| Flange Size | Not Applicable |
| For Air Type | Clean Air |
| For High-static Pressure Applications | No |
| For Location | Indoor |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Frequency | 50/60 Hz |
| Hazardous Location Application | No |
| Hazardous Location Specification | Not Applicable |
| High-efficiency Motor | No |
| Housing Color | Gray |
| Housing Depth | 8 7/8" |
| Housing Finish | Enamel |
| Housing Height | 9 3/8" |
| Housing Material | Steel |
| Housing Material Finish | Enamel |
| Housing Width | 7 1/2" |
| Includes | Not Applicable |
| Includes Drive Package | Not Applicable |
| Includes Motor | Yes |
| Includes Mounting Hardware | No |
| Inlet Dia. | 4 1/2" , 4 9/16" |
| Lead Length | 13" |
| Manufacturer Warranty Length | 1 yr. Limited |
| Maximum Ambient Temperature | 104°F |
| Maximum Fan Speed | 1670 RPM |
| Maximum Inlet Air Temperature | 104°F |
| Maximum Static Pressure | 0.625 in. wc |
| Minimum Ambient Temperature | 14°F |
| Minimum Fan Speed | 0 RPM |
| Motor Duty Class | Continuous |
| Motor Enclosure | Open |
| Motor Frame Designation | 3.3" Psc Motor |
| Motor Horsepower | 1/20 hp |
| Motor Insulation | Class B |
| Motor Insulation Class | Class B |
| Motor Ip Rating | IP20 |
| Motor Location | Out Of Airstream |
| Motor Speed | 1650 RPM |
| Motor Type | Permanent Split Capacitor |
| Mount Type | All Position |
| Mounting Orientation | Multiposition |
| Mounting Position | All Position |
| Nameplate Voltage | 230V AC |
| Number Of Inlets | 1 |
| Number Of Speeds | 1 |
| Oem Replacement | No |
| Outlet Dia. | Not Applicable |
| Outlet Height | 3 7/16" |
| Outlet Shape | Rectangular |
| Outlet Type | Non Flanged |
| Outlet Width | 4" |
| Overall Depth | 8 7/8" |
| Overall Height | 9 3/8" |
| Overall Width | 7 1/2" |
| Phase | 1 |
| Replacement For | 1TDR4 |
| Resistance Properties | Corrosion Resistant |
| Rotation | CW |
| Shaft Diameter | 8 mm |
| Sound Level | Not Rated |
| Spark Resistant Construction Type | Not Rated |
| Speed Controllable | No |
| Thermal Overload Protection | Yes |
| Wheel Bore Dia. | 8 mm |
| Wheel Dia. | 5 1/8" |
| Wheel Material | Steel |
| Wheel Material Finish | Galvanized |
| Wheel Type | Forward Curved |
| Wheel Width | 1 7/8" |
| With Flange | No |
Shipping Info:
| Ship weight (kg) | 3.51 |
| Ship height (cm) | 23.81 |
| Ship length (cm) | 22.54 |
| Ship width (cm) | 19.21 |
| Country of Origin | CN |
Product Variants
| Product | Model | Outlet Shape | Overall Height | Overall Width | Overall Depth | Outlet Height | Outlet Width | Motor Enclosure Design | Max. Inlet Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1TDN1 | Round | 3 3/4" | 3 3/16" | 4" | Not Applicable | Not Applicable | Open | 104°F | €118.31 | |
 |
1TDN2 | Round | 3 7/8" | 3 15/16" | 4" | Not Applicable | Not Applicable | Open | 104°F | €130.52 | |
 |
1TDN3 | Rectangular | 4 5/8" | 3 1/2" | 4 1/2" | 1 5/8" | 1 1/2" | Open | 104°F | €102.85 | |
|
1TDN4 | Rectangular | 4 1/2" | 4 3/16" | 4 1/2" | 1 5/8" | 2" | Open | 104°F | €102.26 | |
 |
1TDN5 | Rectangular | 4 5/8" | 4 11/16" | 4 1/2" | 1 5/8" | 2" | Open | 104°F | €153.56 | |
 |
1TDN6 | Round | 5 3/4" | 5" | 6 7/16" | Not Applicable | Not Applicable | Open | 104°F | €163.32 | |
 |
1TDN7 | Round | 5 3/4" | 5 1/8" | 6 7/16" | Not Applicable | Not Applicable | Open | 104°F | €149.33 |
