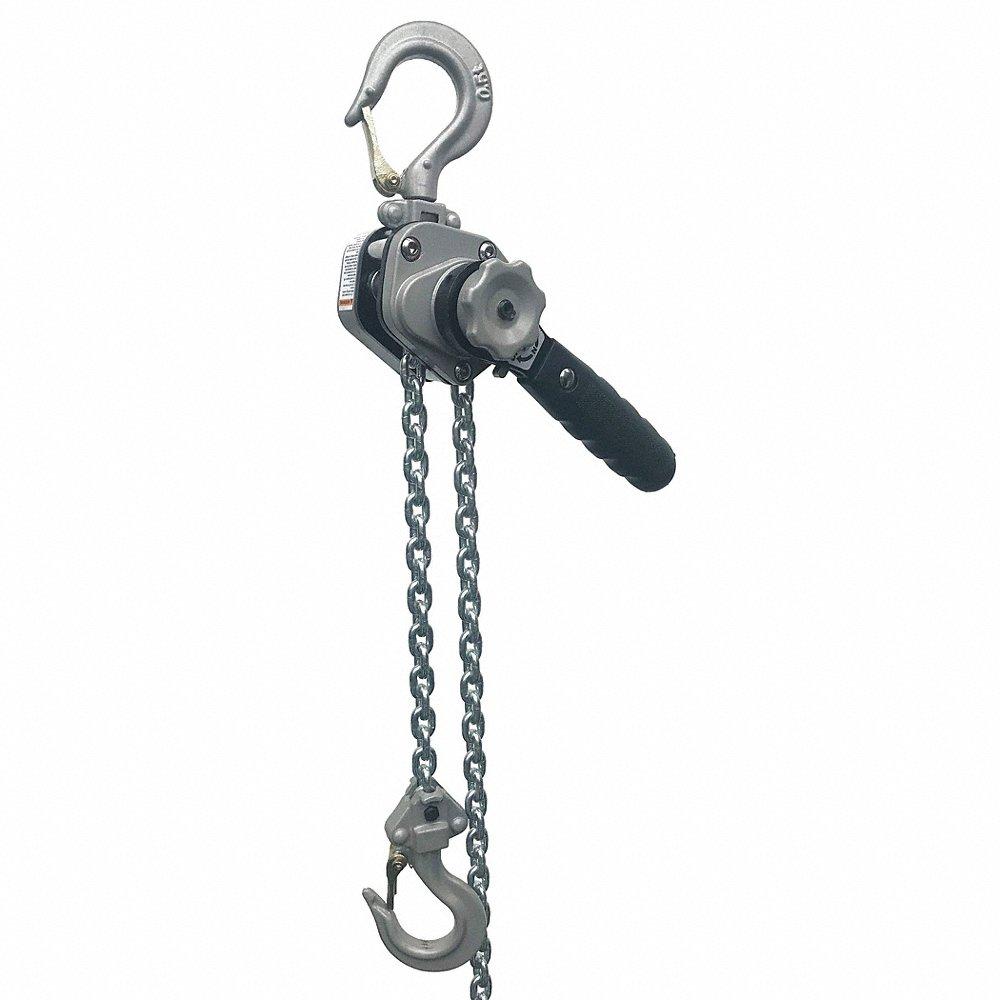

DAYTON 425Z71 Lever Chain Hoist, 1100 lbs. Load Capacity, 6 19/64 Inch Lever Length
Get it by Tuesday, Feb 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€384.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Lever Chain Hoist |
| Body Depth | 3 15/16" |
| Body Finish | Powder Coated |
| Body Material | Aluminum |
| Body Width | 3 3/16" |
| Brake Type | Double Pawl, Weston Style |
| Chain | Zinc Plated |
| Chain Finish | Zinc Plated |
| Chain Grade | Grade 100 |
| Chain Material | Alloy Steel |
| Color | Silver |
| Features | Dual-Stage Reduction Gearing, The Top And Bottom Hooks Rotate 360° And Open Slowly Without Fracturing Under Overloads |
| For Max. Beam Flange Height | Not Applicable |
| For Max. Beam Flange Width | Not Applicable |
| For Min. Beam Flange Height | Not Applicable |
| For Min. Beam Flange Width | Not Applicable |
| For Outdoor Use | Yes |
| Head Room | 9 13/16" |
| Hook Opening | 29/32" |
| Included Components | Carrying Case, Safety Latch Kit |
| Includes | Safety Latch Kit, Tool Bag |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lever Length | 6 5/16" |
| Lift Length | 10 ft. |
| Lifting Capacity | 1100 lbs. |
| Lifting Hook Material | Alloy Steel |
| Lifting Hook Opening Width | 7/8" |
| Lifting Hook Type | Hook With Safety Latch |
| Manufacturers Warranty Length | 1 yr. |
| Maximum Pulling Capacity | Not Applicable |
| Min. Between Hooks | 9 27/32" |
| Minimum Retracted Length | 9 13/16" |
| Mounting Type | Hook Mounted - No Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Operating Position | Vertical |
| Overload Protection | No |
| Overload Protection Included | No |
| Power Source | Lever |
| Pull Force To Lift Rated Load | 53 lbs. |
| Resistance Properties | Not Applicable |
| Tonnage - Lifting Capacity | 0.5 ton. |
Shipping Info:
| Ship weight (kg) | 3.57 |
| Country of Origin | CN |
Product Variants
| Model | Hook Opening | Overload Protection Included | Lever Length | Body Material | Body Depth | Body Width | Color | Lift Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3TP92 | 29/32" | No | 10 7/16" | Steel | 5 13/16" | 4 3/4" | Silver | 10 ft. | €650.41 | |
| 3TP93 | 29/32" | No | 10 7/16" | Steel | 5 13/16" | 4 3/4" | Silver | 20 ft. | €497.12 | |
| 3TP95 | 1 7/64" | No | 16 3/8" | Steel | 6 1/2" | 5 9/16" | Silver | 10 ft. | €573.09 | |
| 3TP96 | 1 7/64" | No | 16 3/8" | Steel | 6 1/2" | 5 9/16" | Silver | 20 ft. | €723.80 | |
| 3TP98 | 1 29/64" | No | 16 1/2" | Steel | 7 11/16" | 7" | Silver | 10 ft. | €873.60 | |
| 3TP99 | 1 29/64" | No | 16 1/2" | Steel | 7 11/16" | 7" | Silver | 20 ft. | €948.11 | |
| 4ZX44 | 29/32" | No | 12 3/16" | Steel | 5 15/16" | 5 5/16" | Red | 10 ft. | €786.05 |
