DAYTON 38MN07 Vise Multi-Fixture 40 lb Clamp Force
Get it by Monday, Aug 17
5.00% off
€756.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vise |
| Base | Fixed |
| Base Type | Fixed |
| Bed/base | Cast Iron |
| Bed/base | High Tensile Strength Cast Iron |
| Clamping Force | 40 lbs. |
| Features | (12) Moveable And Sliding Jaws To Clamp Irregular Shapes, 360 Deg Leaf Rotation Gives Total Flexibility In Clamping |
| Jaw Face Width | 4 1/2" |
| Jaw Opening | 5" |
| Max. Clamping Force | 40 lbf. |
| Max. Jaw Opening | 5" |
| Overall Height | 5 3/16" |
| Overall Length | 25.5" |
| Throat Depth | 3 1/8" |
| Type | Multi Fixture |
Shipping Info:
| Ship weight (kg) | 29.7 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 78.74 |
| Ship width (cm) | 36.83 |
| Country of Origin | IN |
Product Variants
| Product | Model | Throat Depth | Overall Height | Jaw Face Width | Max. Jaw Opening | Jaw Opening | Type | Max. Clamping Force | Clamping Force | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

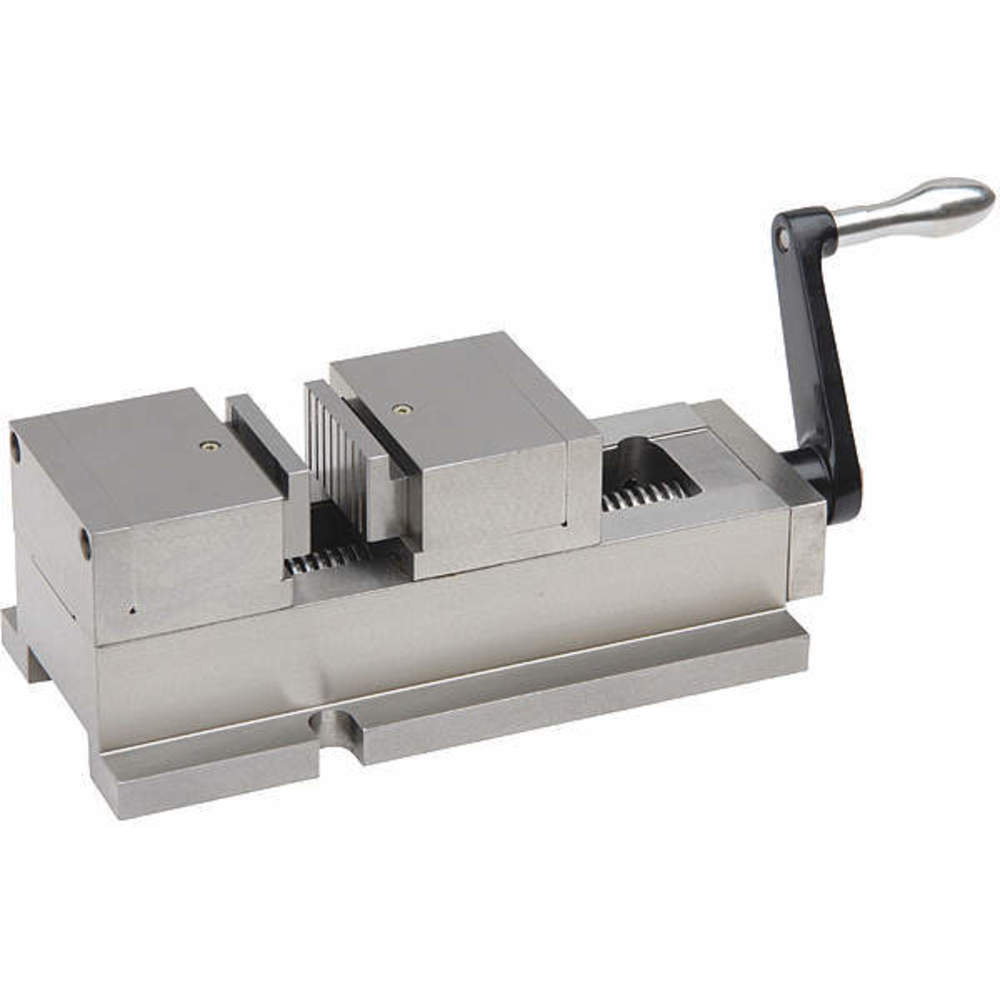

38MN03 | 1 5/8" | 3 1/2" | 2 1/8" | 3" | 3" | One Way | 30 lbf. | 30 lbs. | €695.23 | |
 |

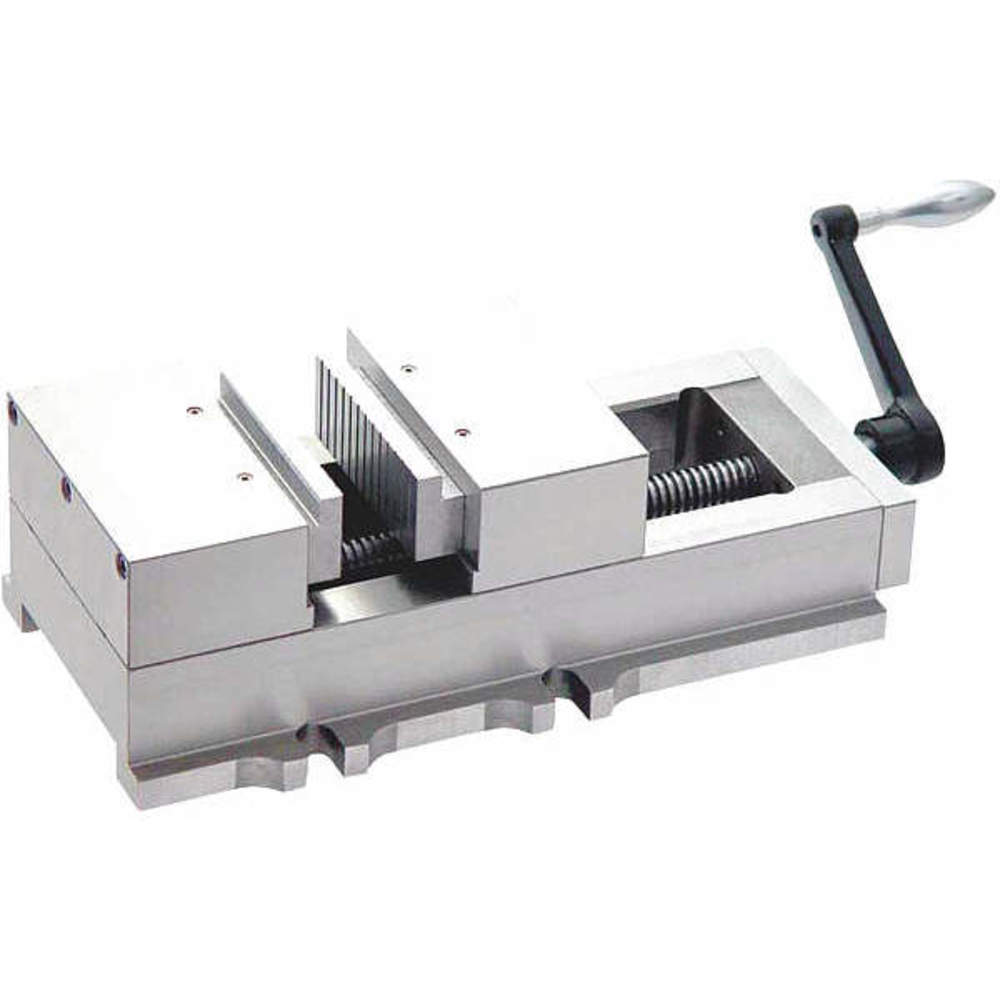

38MN05 | 1 7/8" | 4 1/16" | 3 7/8" | 5" | 5" | One Way | 45 lbf. | 45 lbs. | €813.05 | |
|

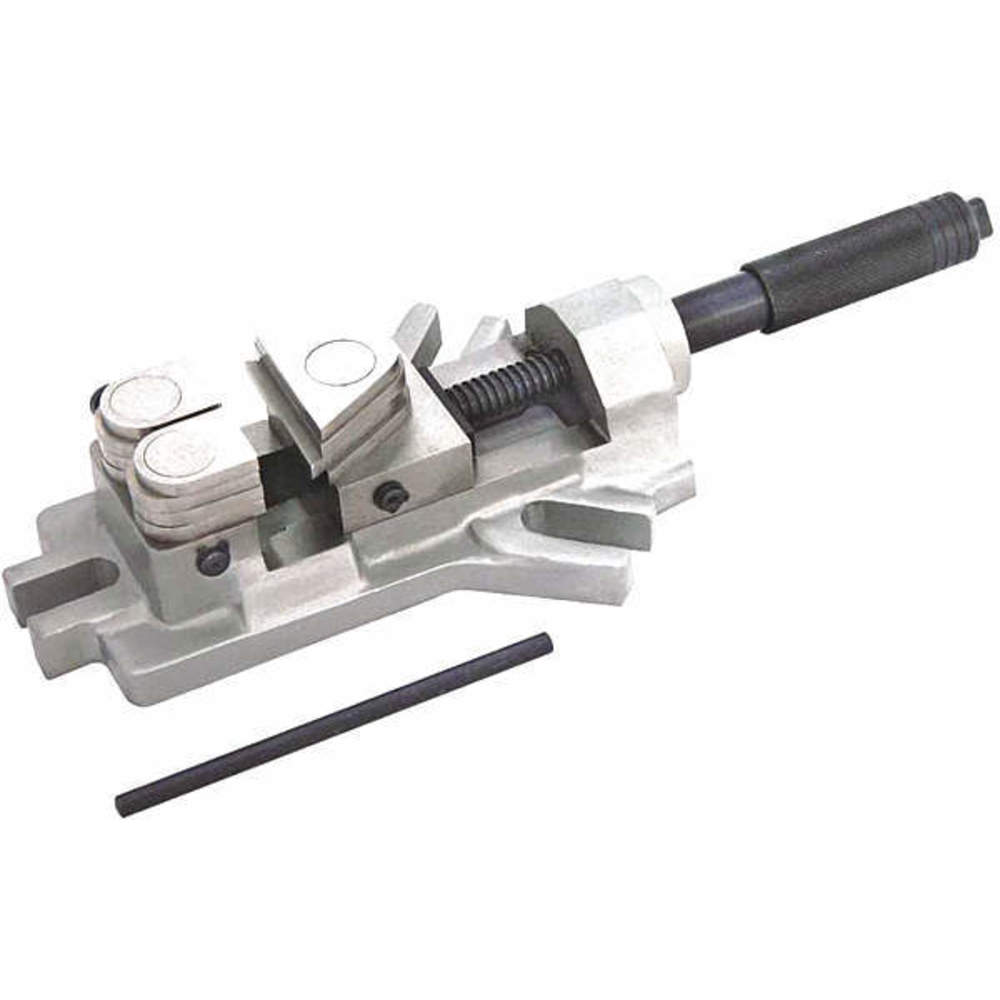

38MN06 | 2" | 3 3/8" | 2 3/4" | 3" | 3" | Multi Fixture | 30 lbf. | 30 lbs. | €690.98 | |
 |

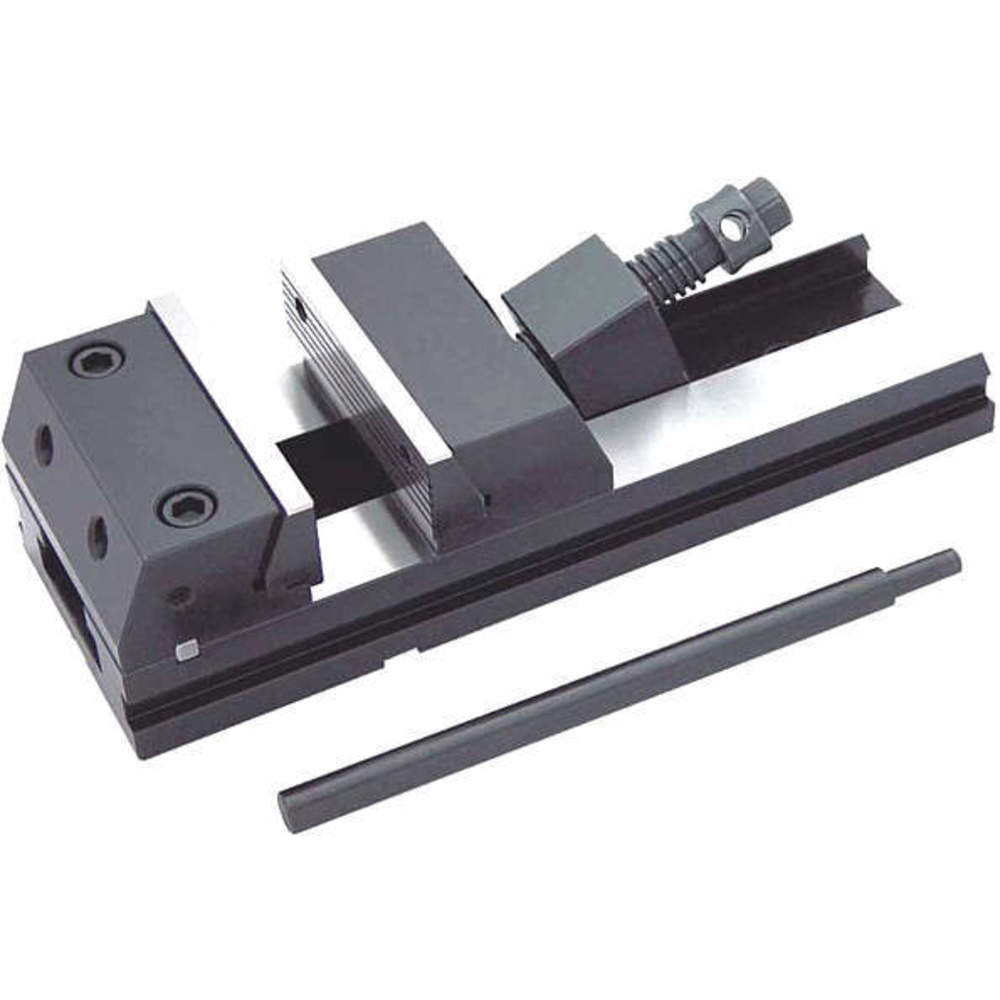

38MN12 | 2 1/4" | 4 1/4" | 5 7/8" | 10" | 10" | Industrial | 50 lbf. | 50 lbs. | €1,590.98 | |
 |

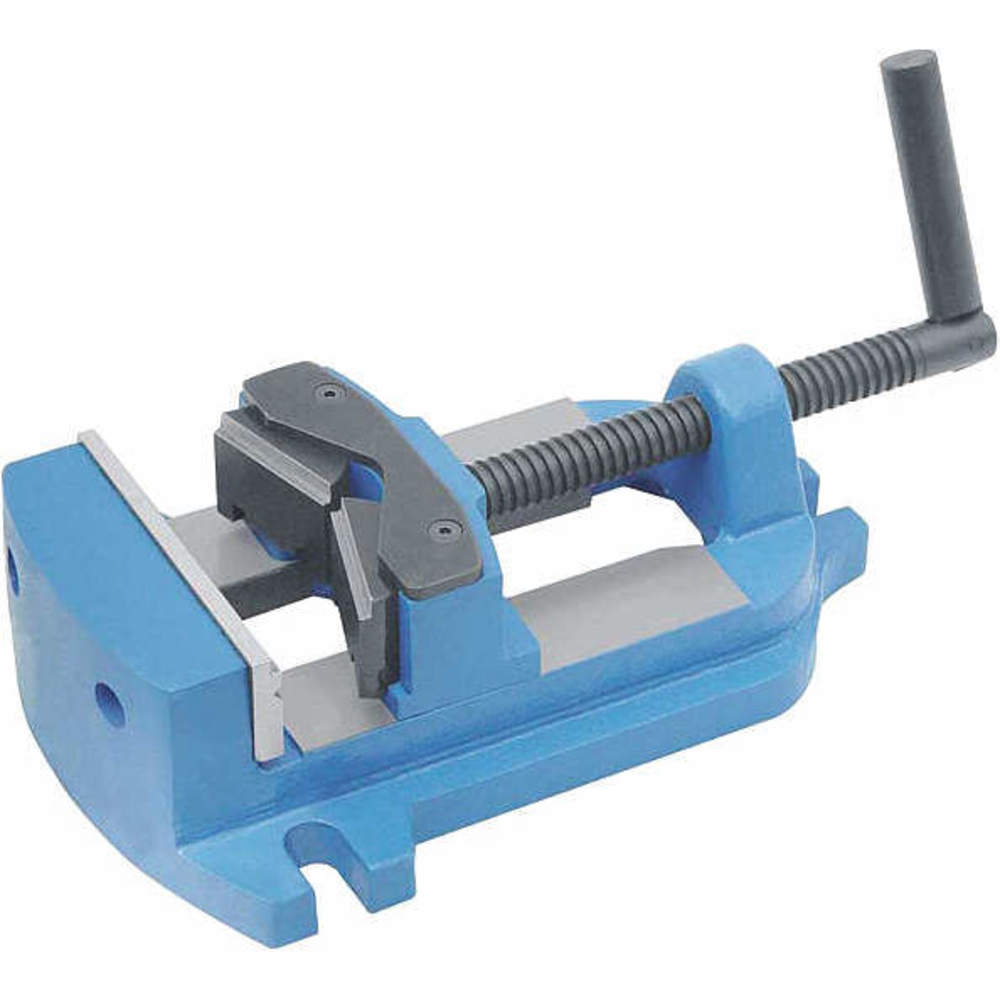

38MN13 | 1 5/8" | 3 7/8" | 3 7/8" | 4" | 4" | Movable Jaws | 40 lbf. | 40 lbs. | €213.73 |
