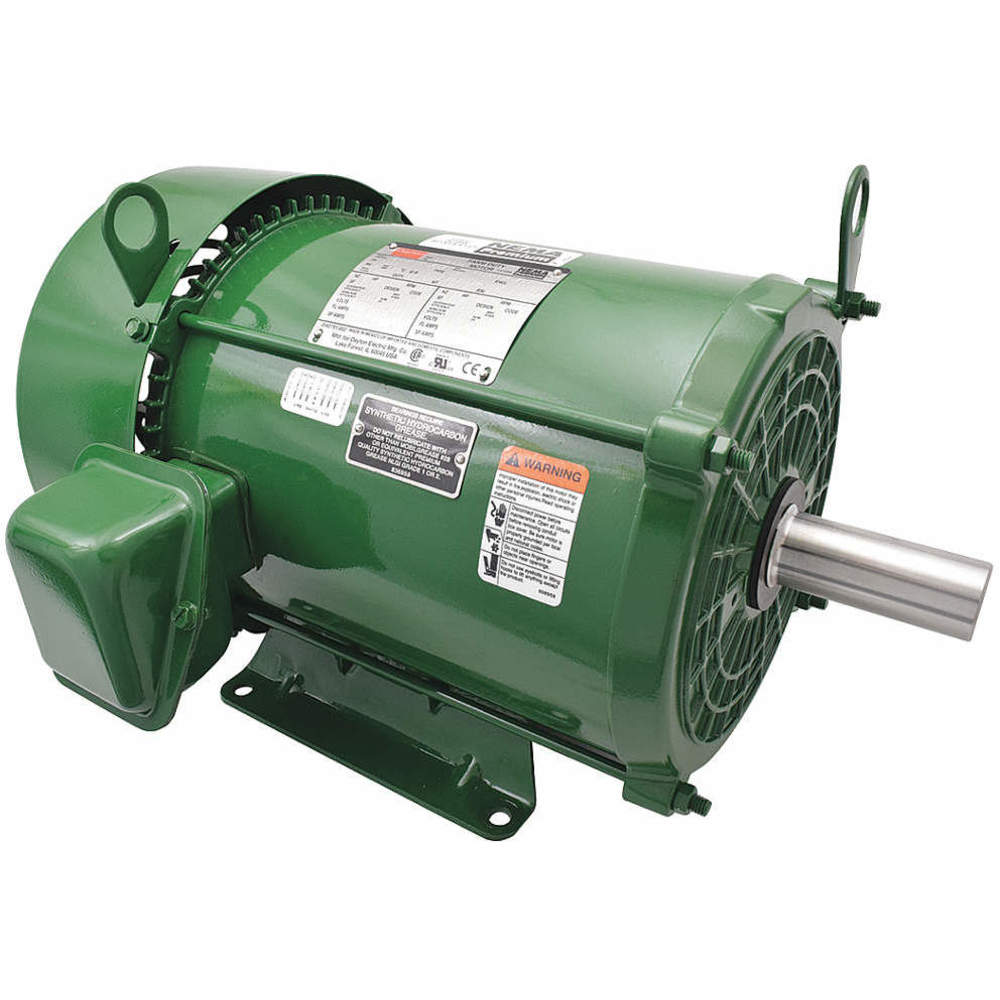

DAYTON 35Z922 Farm Motor 10 Hp 1765 Rpm 208-230/460v
Get it by Thursday, Dec 25
10.00% off
€2,357.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Farm Duty Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Bearings | Ball |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 91.7% |
| Efficiency Group | Premium |
| Finish | Dayton Green |
| Frame | 215T |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 24/12A |
| Hp | 10 hp |
| Includes | Shaft Slinger, Gasketed Conduit Box, Shaft Key |
| Insulation Class | Class F |
| Length Less Shaft | 15 3/8" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | General Purpose Farm |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1760 RPM |
| Nominal Efficiency | 91.7% |
| Number Of Speeds | 1 |
| Overall Length | 18 7/8" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 1/2" |
| Shaft Type | Keyed |
| Thermal Protection | None |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 78.75 |
| Ship height (cm) | 46.99 |
| Ship length (cm) | 42.42 |
| Ship width (cm) | 58.42 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Frame | Nameplate Rpm | Motor Service Factor | Service Factor | Frame Material | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1EJR3BG | 208-230/460V AC | 1/3 hp | 56 | 1765 RPM | 1.25 | 1.25 | Rolled Steel | 11 11/16" | €420.05 | |
 |
1EJR4BG | 208-230/460V AC | 1/2 hp | 56 | - | - | 1.25 | Steel | 11 11/16" | €514.99 | |
|
1EJR5BG | 208-230/460V AC | 3/4 hp | 56 | 1745 RPM | 1.25 | 1.25 | Steel | 11 11/16" | €608.07 | |
 |
35Z916 | 230/460V AC | 1 hp | 143-5T/56HZT | 1755 RPM | 1.25 | 1.25 | Rolled Steel | 13" | €1,113.27 | |
 |
35Z917 | 230/460V AC | 1 1/2 hp | 143-5T/56HZT | 1755 RPM | 1.25 | 1.25 | Rolled Steel | 13" | €1,053.41 | |
 |
35Z918 | 230/460V AC | 2 hp | 143-5T/56HZ | 1750 RPM | 1.25 | 1.25 | Rolled Steel | 13" | €1,153.60 | |
 |
35Z919 | 230/460V AC | 3 hp | 182T | 1765 RPM | 1.15 | 1.15 | Rolled Steel | 14 7/8" | €1,575.11 |
