DAYTON General Purpose Farm Duty Motors, 3 Phase
A
B
C
D
E
F
G
H
I| Style | Model | Voltage | Hp | Frame | Motor Service Factor | Service Factor | Frame Material | Overall Length | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1EJR4BG | 208-230/460V AC | 1/2 hp | 56 | - | 1.25 | Steel | 11 11/16" | 1 7/8" | €549.53 | |
| B | 1EJR5BG | 208-230/460V AC | 3/4 hp | 56 | 1.25 | 1.25 | Steel | 11 11/16" | 1 7/8" | €648.83 | |
| B | 1EJR3BG | 208-230/460V AC | 1/3 hp | 56 | 1.25 | 1.25 | Rolled Steel | 11 11/16" | 1 7/8" | - | RFQ
|

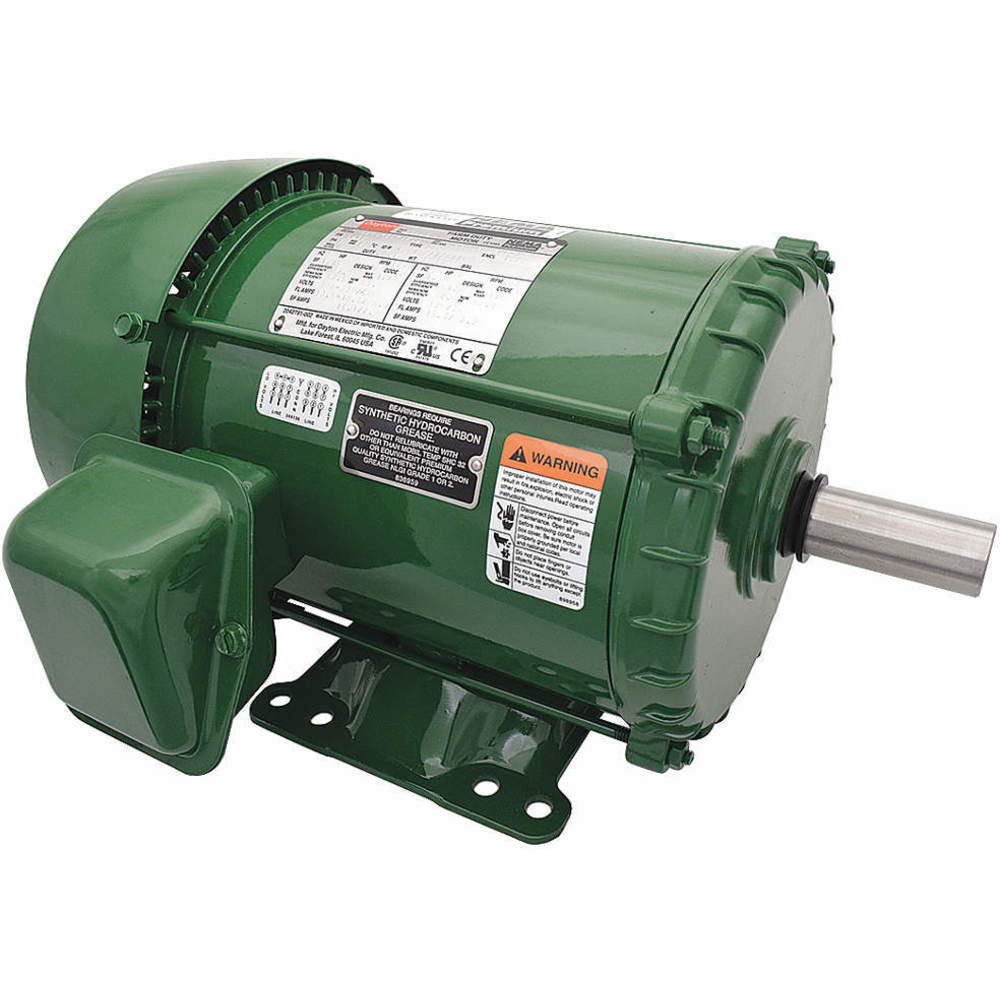

| C | 35Z920 | 230/460V AC | 5 hp | 184T | 1.15 | 1.15 | Rolled Steel | 15 7/8" | 2 3/4" | €2,057.20 | |
| D | 35Z916 | 230/460V AC | 1 hp | 143-5T/56HZT | 1.25 | 1.25 | Rolled Steel | 13" | 2 3/8" | €1,187.20 | |

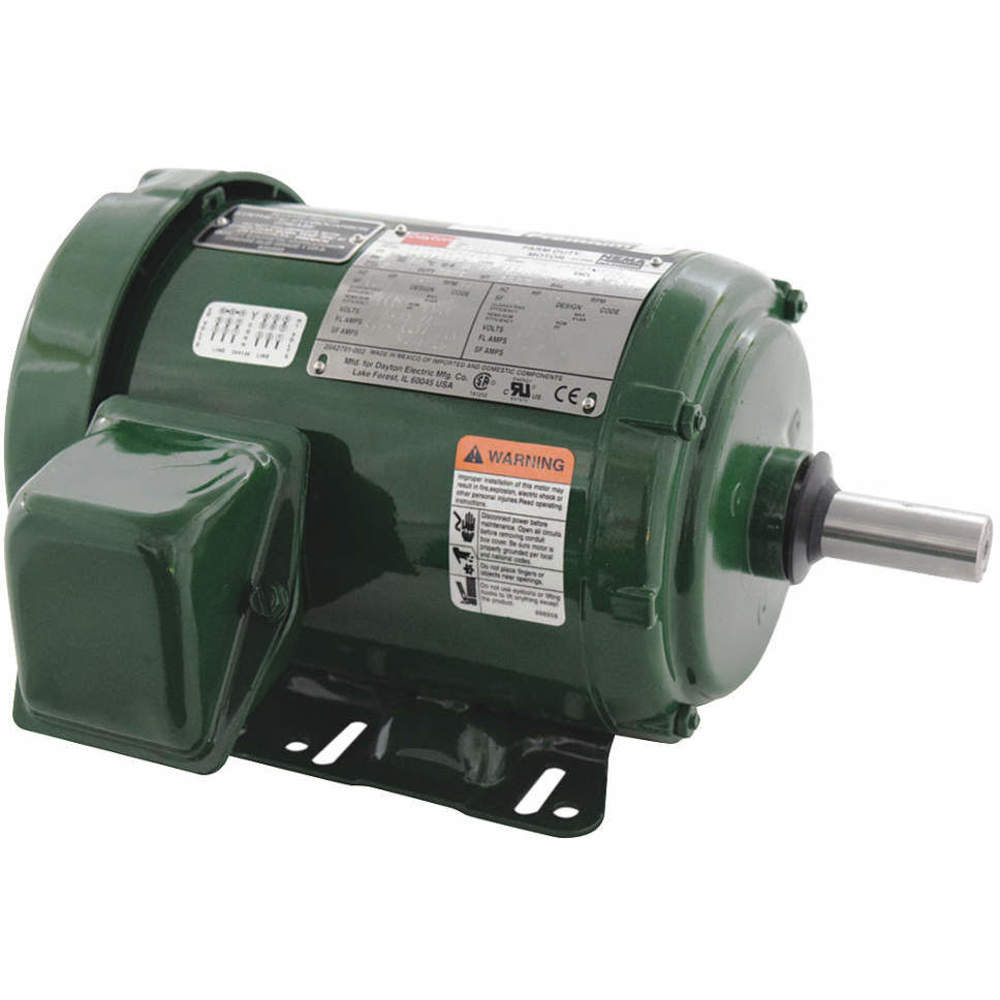

| E | 35Z917 | 230/460V AC | 1 1/2 hp | 143-5T/56HZT | 1.25 | 1.25 | Rolled Steel | 13" | 2 3/8" | €1,123.32 | |
| F | 35Z918 | 230/460V AC | 2 hp | 143-5T/56HZ | 1.25 | 1.25 | Rolled Steel | 13" | 2 1/4" | €1,230.22 | |

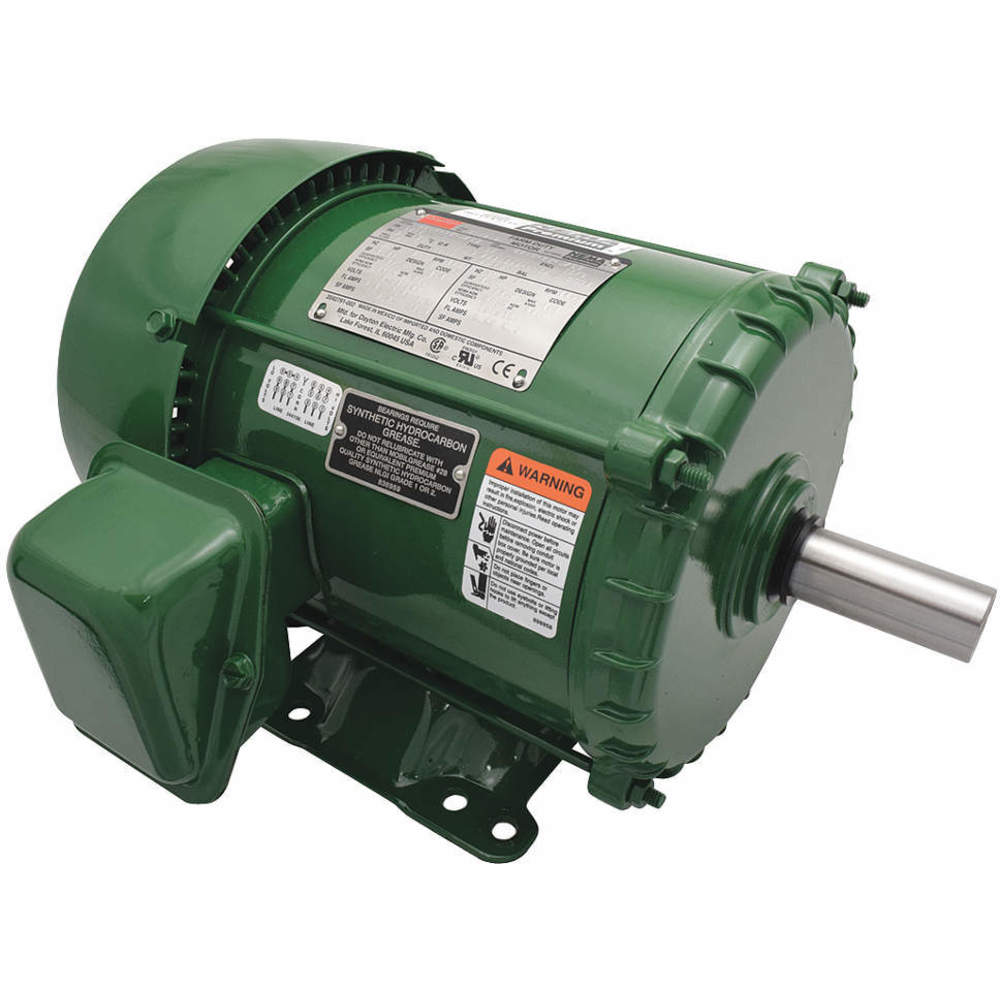

| G | 35Z919 | 230/460V AC | 3 hp | 182T | 1.15 | 1.15 | Rolled Steel | 14 7/8" | 2 3/4" | €1,645.53 | |
| H | 35Z921 | 230/460V AC | 7 1/2 hp | 213T | 1.15 | 1.15 | Rolled Steel | 18 7/8" | 3 1/2" | €2,098.46 | |

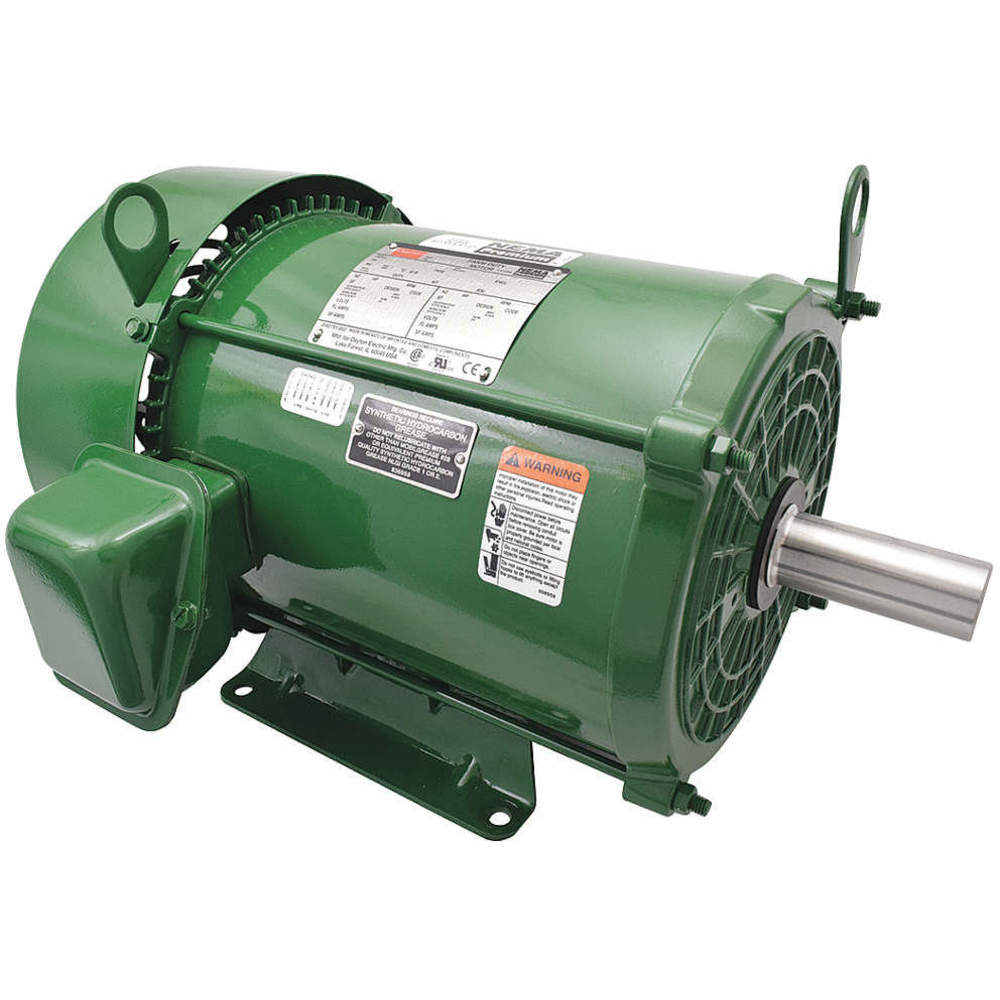

| I | 35Z922 | 230/460V AC | 10 hp | 215T | 1.15 | 1.15 | Rolled Steel | 18 7/8" | 3 1/2" | €2,736.18 |
General Purpose Farm Duty Motors, 3 Phase
Dayton general-purpose farm-duty motors are ideal for use in high-torque applications like air compressors, augers, pumps, conveyors and other farm equipment. These 3-phase motors have greater efficiency than single-phase motors of similar specifications and do not need running / starting capacitors or centrifugal starting switches that fail or wear out. They have rolled steel frame for strength and durability and keyed motor shafts to rotate clockwise or counter-clockwise for continuous duty cycles. These motors feature totally enclosed fan-cooled enclosure design for cooling the motor and protecting them from moisture. They have a rigid base for all angle / horizontal mounting. Choose from a wide range of these motors, available in power outputs ranging from 1/3 to 10 hp.
