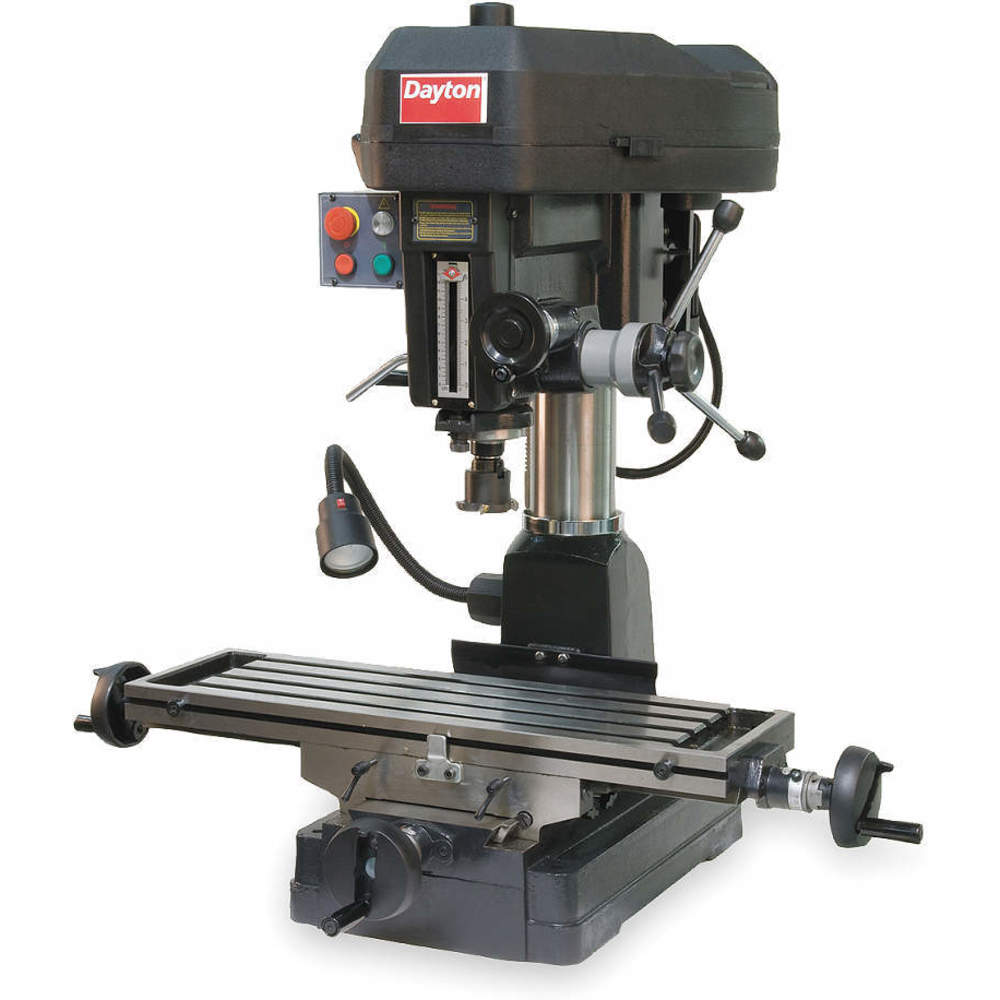

DAYTON 2LKP9 Mill/drill 16 Inch 1.5hp 230v 150-3000 Sp
Get it by Friday, Dec 19
10.00% off
€4,741.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mill/Drill Machine |
| Chuck Size | Not Included |
| Column Dia. | 4 1/2" |
| Column Dia. | 4-1/2" |
| Corded/banded | Corded |
| Corded/wireless | Corded |
| Cross Travel - Maximum | 7" |
| Drilling Capacity - Steel | 1 1/2" |
| Drive Type | Belt Drive |
| End Milling Capacity | 3/4" |
| Face Milling Capacity | 3" |
| Features | Cast Iron Construction, Depth Gauge, Fine Feed Handwheel With 0.001 In Graduations With Quill Lock, Precision Ground Work Table, Taper Roller Spindle Bearings |
| Frequency | 60 Hz |
| Graduations | 0.001" |
| Head Material | Cast Iron |
| Hp | 1 1/2 hp |
| Included Powerfeeds | No Powerfeed |
| Includes | (6) 1/8" To 3/4" x 8Ths R8 Collet Set, 1/2" Chuck, 2-1/2" Face Mill Cutter With Arbors, R8/Mt3 Arbor Adapter, Way Covers, Work Light |
| Includes Chuck | Chuck Included |
| Includes Digital Readout | No Digital Readout |
| Includes Lights | Light Included |
| Includes Power Downfeed | No |
| Longitudinal Travel - Maximum | 23" |
| Motor Speed - Maximum | 1725 RPM |
| Number Of Spindle Speeds | 12 |
| Number Of T-slots | 4 |
| Operation | Manual |
| Overall Depth | 29" |
| Overall Height | 45" |
| Overall Width | 32" |
| Phase | 1 |
| Power Source | Corded |
| Quill Dia. | 3" |
| Rpm | 150-3000 RPM |
| Speed Control | Fixed |
| Spindle Speed | 150 to 3000 |
| Spindle Speed - Maximum | 3000 RPM |
| Spindle Speed - Minimum | 150 RPM |
| Spindle Taper | R8 |
| Spindle To Table | 17" |
| Spindle Travel | 5" |
| Spindle Travel - Maximum | 5" |
| Spindle-to-table Distance | 17" |
| Swing | 16" |
| T-slot Width | 5/8" |
| T-slots | (4) 5/8 |
| Table Depth | 9 1/2" |
| Table Width | 32" |
| Table Work Surface | 9 1/2" x 32" |
| Table Work Surface | 9-1/2 x 32" |
| Travel | 7" |
| Travel Length | 7" |
| Voltage | 120/240V |
Shipping Info:
| Ship weight (kg) | 300.15 |
| Ship height (cm) | 116.33 |
| Ship length (cm) | 96.01 |
| Ship width (cm) | 75.18 |
| HS code | 8458190090 |
| Country of Origin | TW |
Product Variants
| Product | Model | Spindle Travel | Hp | Quill Dia. | Spindle To Table | Column Dia. | Overall Height | Overall Width | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

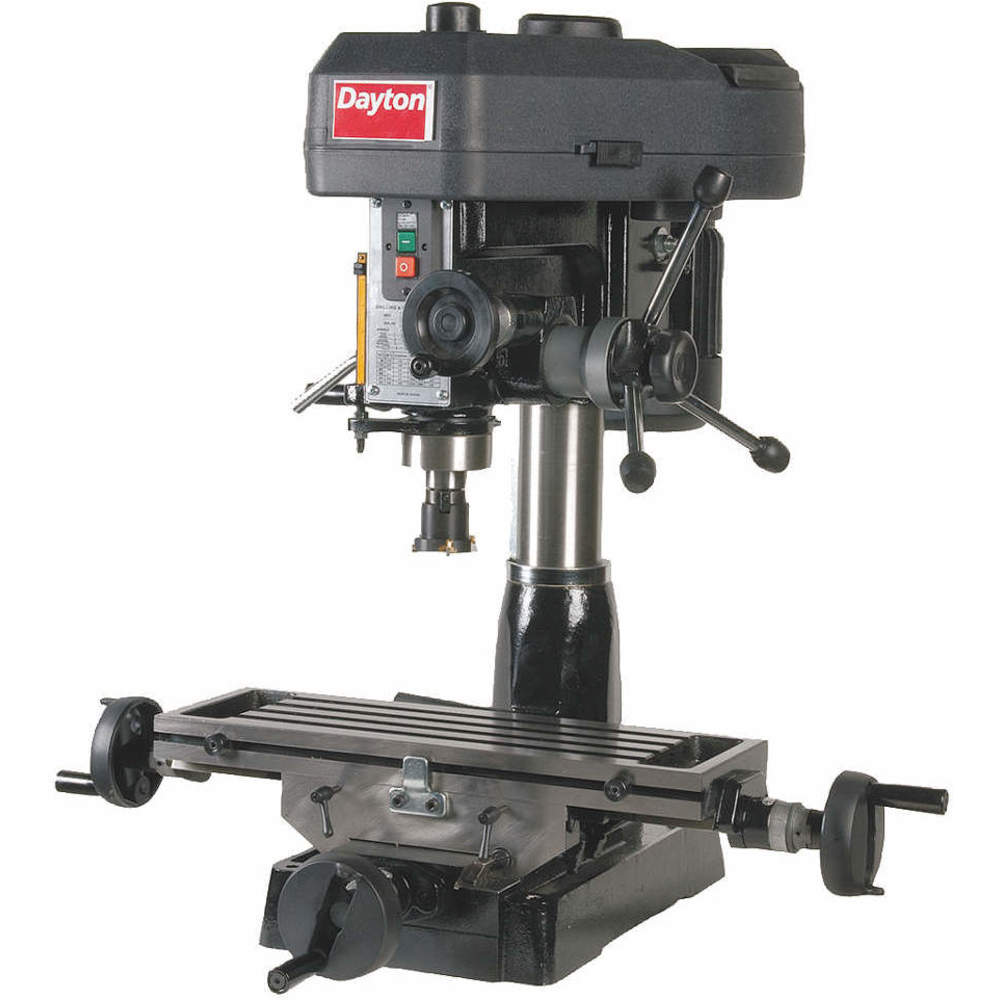

2LKP8 | 3 3/4" | 3/4 hp | 2 1/2" | 14" | 3 5/8" | 40" | 33" | 115-2580 RPM | €4,107.39 |
