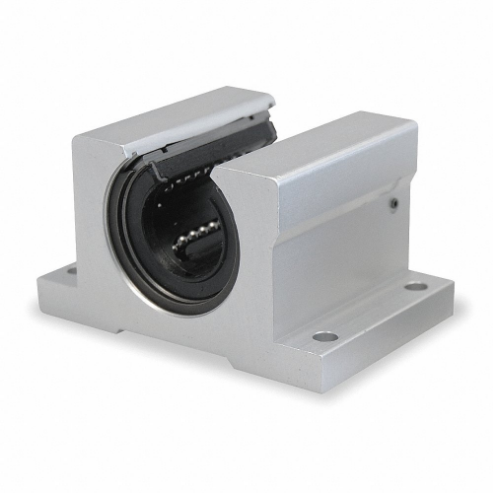

DAYTON 2CNN7 Linear Pillow Block Bearing, 0.75 Inch Bore Dia., Stainless Steel/Polymer Cage
Item: CJ2RYXModel: 2CNN7
7 In Stock
Ships within 2 days via
10.00% off
€174.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Linear Pillow Block Bearing |
| Bearing Type | Ball |
| Body Width | 1.875" |
| Bolt Size | #8 |
| Color | Black, Silver |
| Dimension B | 2 3/4" |
| Dimension C | 1 22/25" |
| Dimension E | 2 3/8" |
| Dimension G | 1 7/8" |
| Dimension J | 0.313" |
| Dimension K | 1.563" |
| Dimension M | 1 5/8" |
| Dimension P (in.) | 1.33" |
| Dynamic Load Capacity | 194 lbf. |
| Finish | Standard Anodized |
| Flange Thickness | 0.312" |
| Flange Width | 2 3/4" |
| Housing Style | Single |
| Inside Dia. | 3/4" |
| Length | 1 7/8" |
| Lock Type | Roll Pin |
| Lubrication | No Lubrication System |
| Material | Stainless Steel, Polymer |
| Maximum Operating Temperature | 176°F |
| Minimum Operating Temperature | -4°F |
| Mounting Hole Diameter | 0.187" |
| Mounting Surface To Shaft Center (in.) | 0.938" |
| Overall Height | 1 5/8" |
| Overall Length | 1 7/8" |
| Pillow Block Type | Open |
| Self-alignment | Not Self-Aligning |
| Series | DAYTON Series |
| Slot Width | 0.438" |
| Static Load Capacity | 308 lbf. |
| Steady State Speed | 7 FPS |
| System Of Measurement | Inch |
| Type | Open |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 3.97 |
| Ship length (cm) | 4.76 |
| Ship width (cm) | 6.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Type | Housing Style | Inside Dia. | Overall Length | Dynamic Load Capacity | Static Load Capacity | Material | Dimension B | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

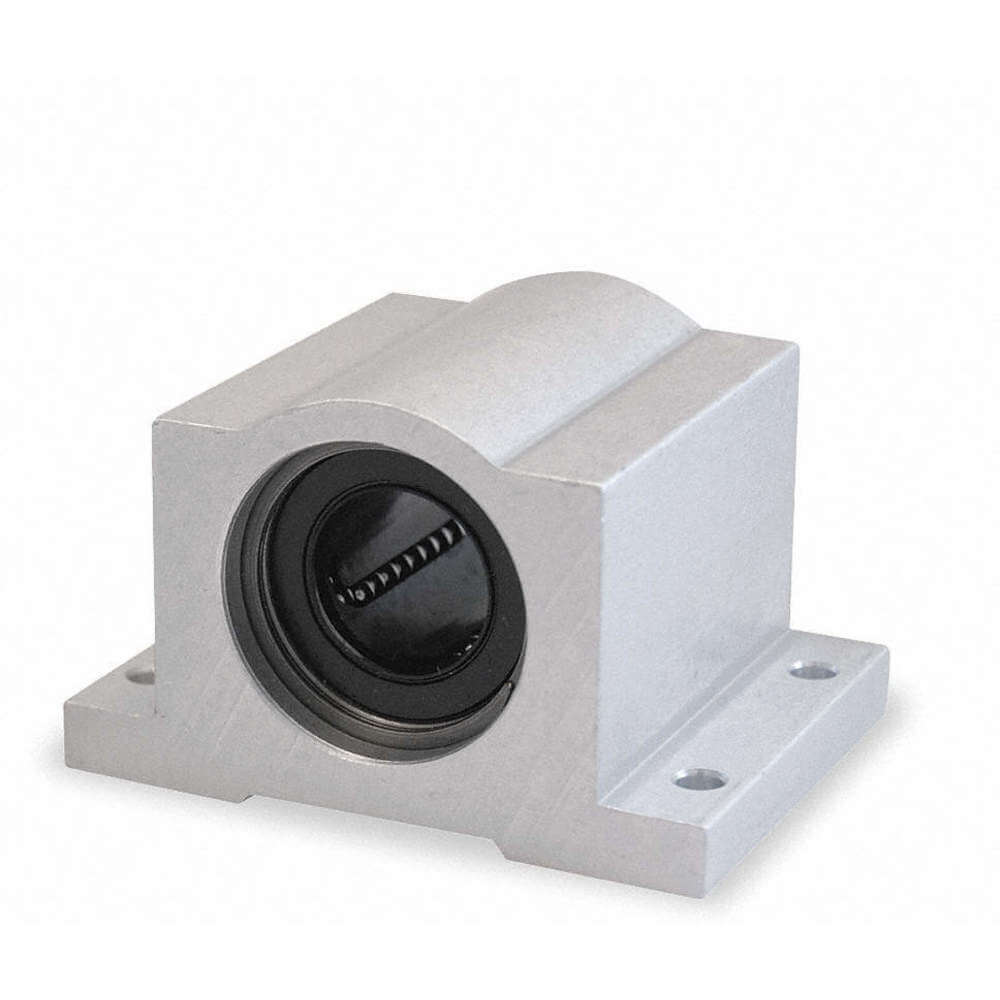

2CNN4 | Closed | Single | 1 1/4" | 3 5/8" | 353 lbf. | 616 lbf. | Stainless Steel, Polymer Cage | 4" | €306.08 | |
 |

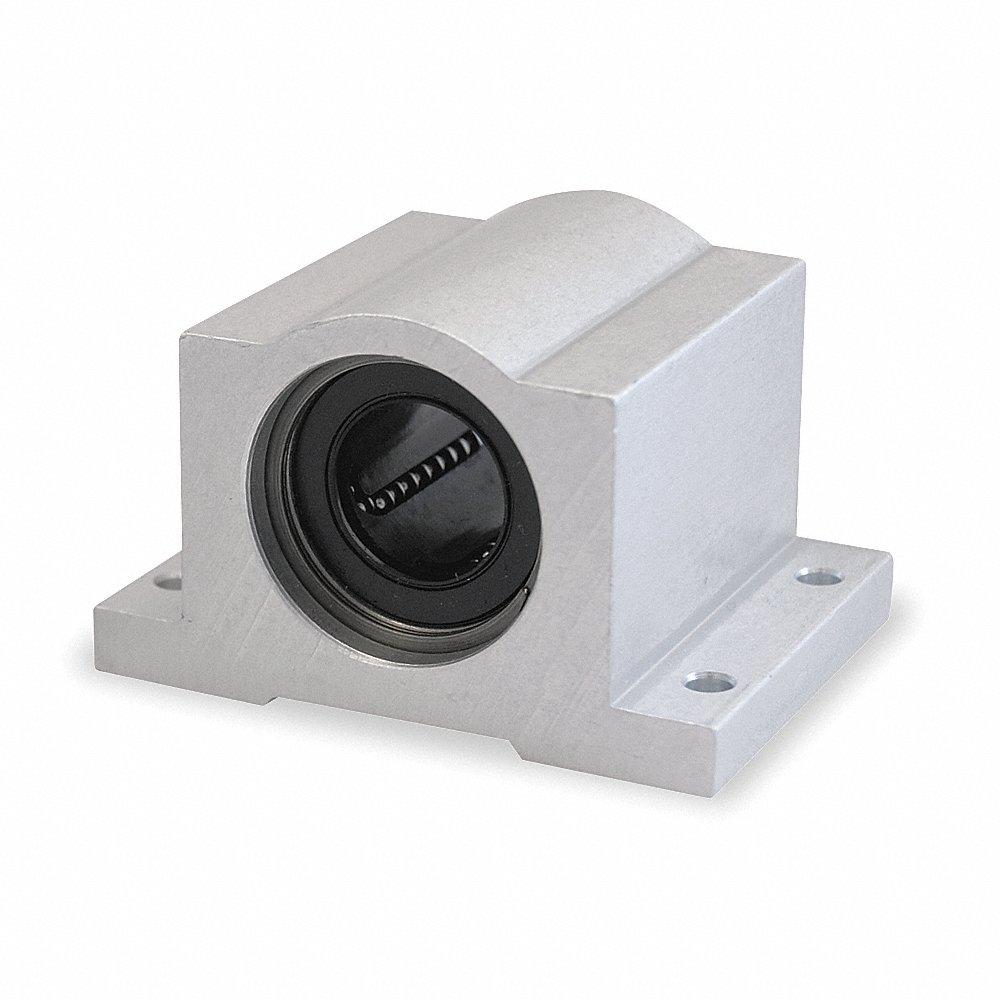

2CNN3 | Closed | Single | 1" | 2 7/8" | 220 lbf. | 353 lbf. | Stainless Steel, Polymer | 3 1/4" | €233.75 | |
|
2CNP1 | Open | Single | 1 1/4" | 3 3/8" | 353 lbf. | 616 lbf. | Stainless Steel, Polymer | 4" | €357.82 | |
 |

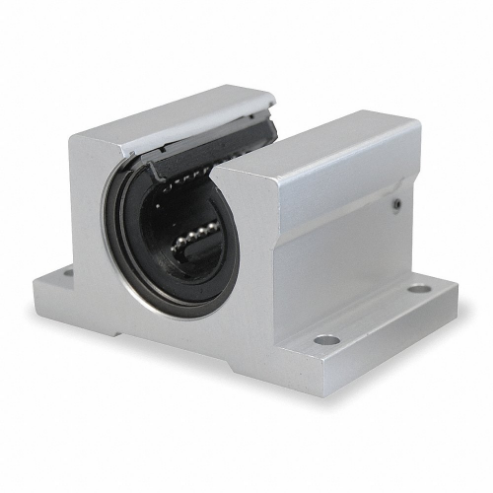

2CNR7 | Open | Twin | 1 1/2" | 9" | 980 lbf. | 1808 lbf. | Stainless Steel, Polymer | 4 3/4" | €702.57 | |
|
2CNN2 | Closed | Single | 3/4" | 2 1/8" | 194 lbf. | 308 lbf. | Stainless Steel, Polymer | 2 3/4" | €135.93 | |
|
2CNR6 | Open | Twin | 1 1/4" | 7 1/2" | 706 lbf. | 1232 lbf. | Stainless Steel, Polymer | 4" | €567.31 | |
 |

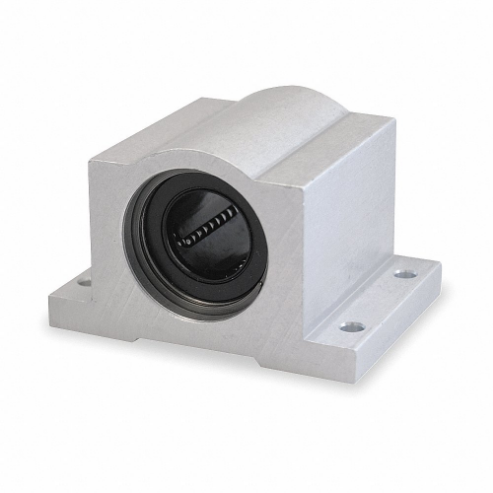

2CNR1 | Closed | Twin | 2" | 10" | 1718 lbf. | 3570 lbf. | Stainless Steel, Polymer | 6" | €755.73 |
