DAYTON 1YBV8BG Aeration Fan Motor Split Phase Teao 1/2hp 1725rpm
Get it by Friday, Dec 19
10.00% off
€373.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Aeration Fan Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Color | Green |
| Duty Cycle | Continuous |
| Efficiency | 68.7% |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 7.6/3.8A |
| Hp | 1/2 hp |
| Includes | Shaft Key, Shaft Slinger, Gasketed Wiring Compartment Cover |
| Ins. Class | Class B |
| Length Less Shaft | 8 11/16" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Agricultural Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 68.7% |
| Overall Length | 10 5/8" |
| Phase | 1 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 15/16" |
| Shaft Type | Keyed |
| Thermal Protection | Automatic |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 26.42 |
| Ship length (cm) | 34.54 |
| Ship width (cm) | 23.88 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Motor Mounting Type | Frame Material | Overall Length | Shaft Length | Efficiency | Motor Mounting Position | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1YBU8BG | 1/3 hp | Rigid Base | Steel | 11 3/8" | 1 15/16" | 66.8% | All Angle | Rigid Base | €489.20 | |
 |

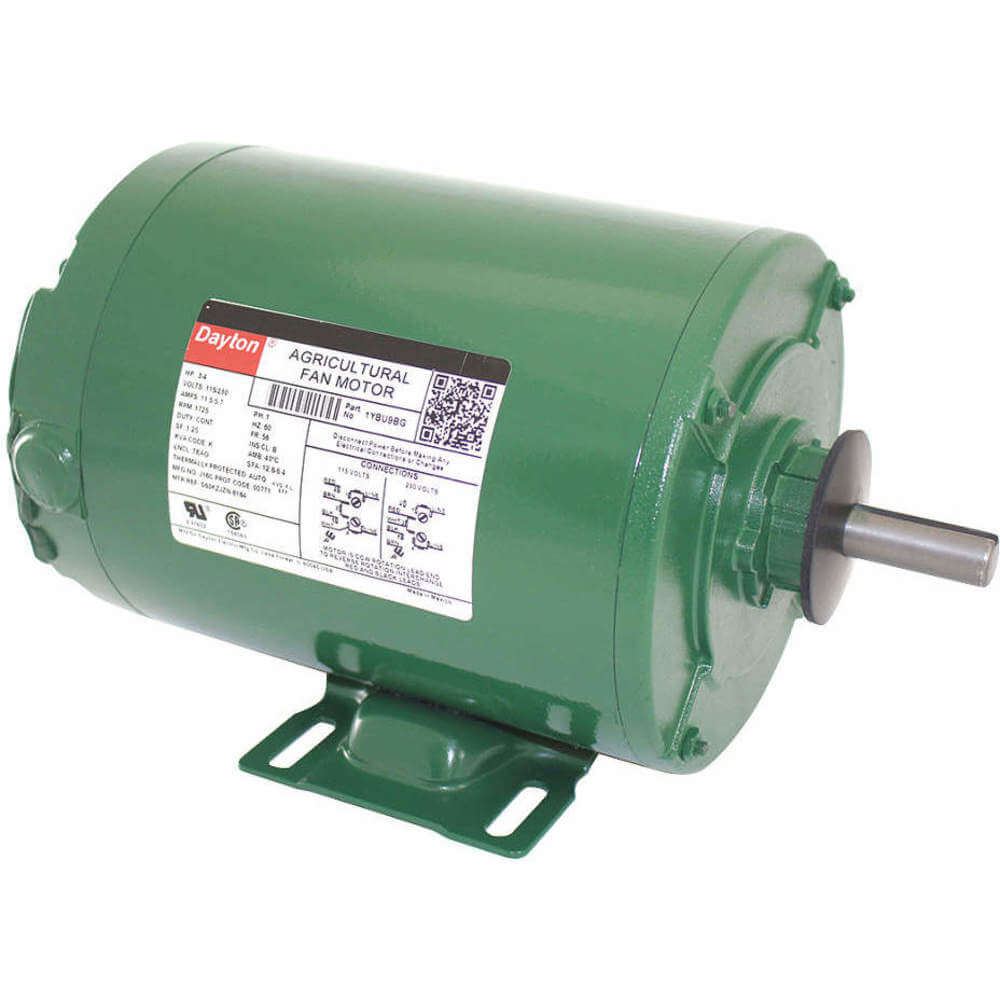

1YBU9BG | 3/4 hp | Rigid Base | Rolled Steel | 11 3/8" | 1 15/16" | 66.3% | All Angle | Rigid Base | €448.62 | |
 |
1YBV1 | 1 hp | Rigid Base | Rolled Steel | 11 3/8" | 1 15/16" | 67.4% | All Angle | Rigid Base | €533.87 | |
 |
1YBV9 | 1/2 hp | Cradle Base | Rolled Steel | 11 1/16" | 1 15/16" | 68.7% | Horizontal | Cradle Base | €596.77 | |
 |
1YBW1 | 1/2 hp | Cradle Base | Rolled Steel | 10 13/16" | 1 7/8" | 68.7% | Horizontal | - | €543.41 |
