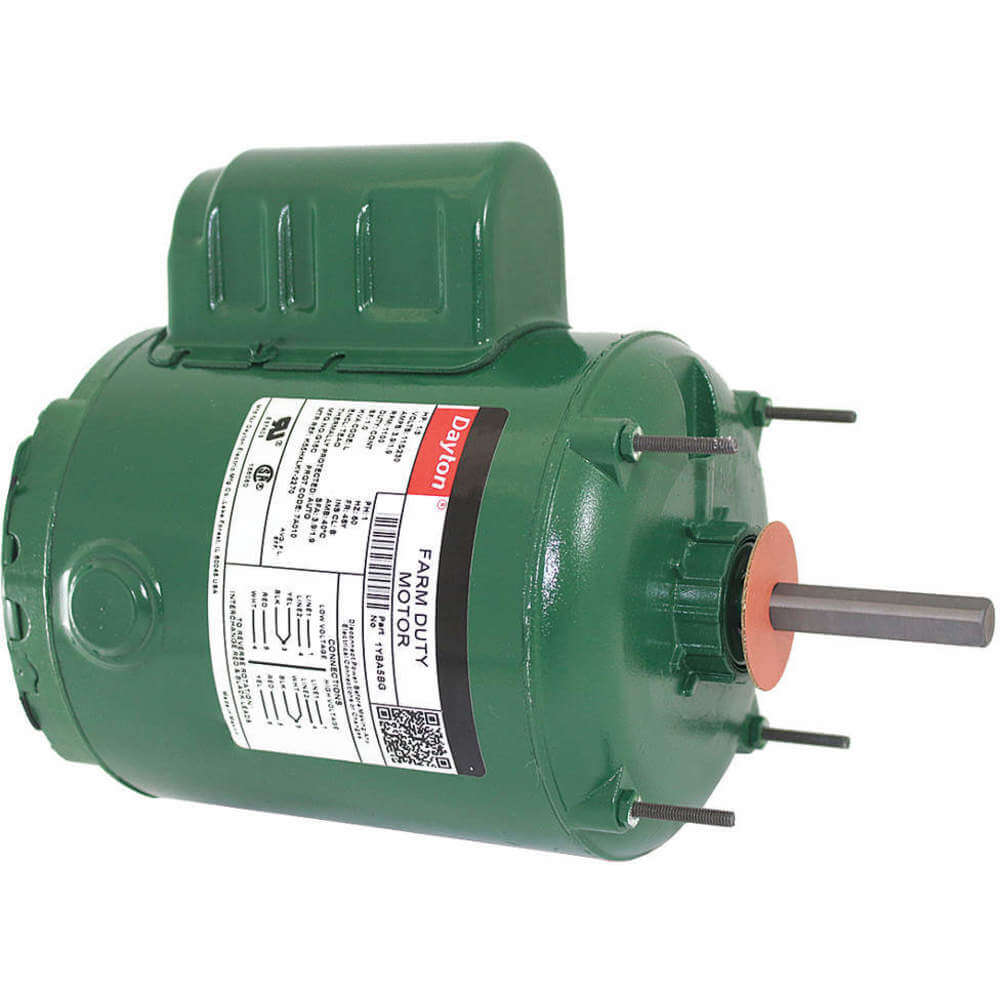

DAYTON 1YBA5BG Poultry Fan Motor Psc Teao 1/3 Hp 1100 Rpm
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€318.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Poultry Fan Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Color | Green |
| Duty Cycle | Continuous |
| Efficiency | 60.4% |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.9/1.9A |
| Hp | 1/3 hp |
| Includes | 5/8" Shaft Adapter, Extended Thru Bolts, Gasketed Capacitor Cover, Shaft Key, Shaft Slinger |
| Ins. Class | Class B |
| Length Less Shaft | 7 11/16" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Stud |
| Motor Mounting Type | Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Double Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Agricultural Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1100 RPM |
| Nominal Efficiency | 60.4% |
| Overall Length | 10 3/16" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 1/2" |
| Shaft Type | Double Flat |
| Thermal Protection | Automatic |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 7.32 |
| Ship height (cm) | 27.18 |
| Ship length (cm) | 34.54 |
| Ship width (cm) | 23.88 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Type | Frame | Motor Service Factor | Motor Shaft Design | Nameplate Rpm | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1YAZ3 | 115/230V AC | 1/2 hp | Stud | 48YZ | 1.25 | Keyed | 850 RPM | 1.25 | €444.16 | |
 |
1YBA1BG | 230V AC | 1 hp | Face | 56CZ | 1 | Keyed | 850 RPM | 1 | €731.21 | |
 |
1YBA4BG | 115/230V AC | 1/3 hp | Rigid Base | 48Y | 1 | Double Flat | 1100 RPM | 1 | €848.35 | |
 |
1YBA6 | 115/230V AC | 1/2 hp | Rigid Base | 56Z | 1 | Keyed | - | 1 | €686.11 | |
 |
1YBA7BG | 230V AC | 1 hp | Face | 56CZ | 1 | Keyed | 850 RPM | 1 | €926.95 |
