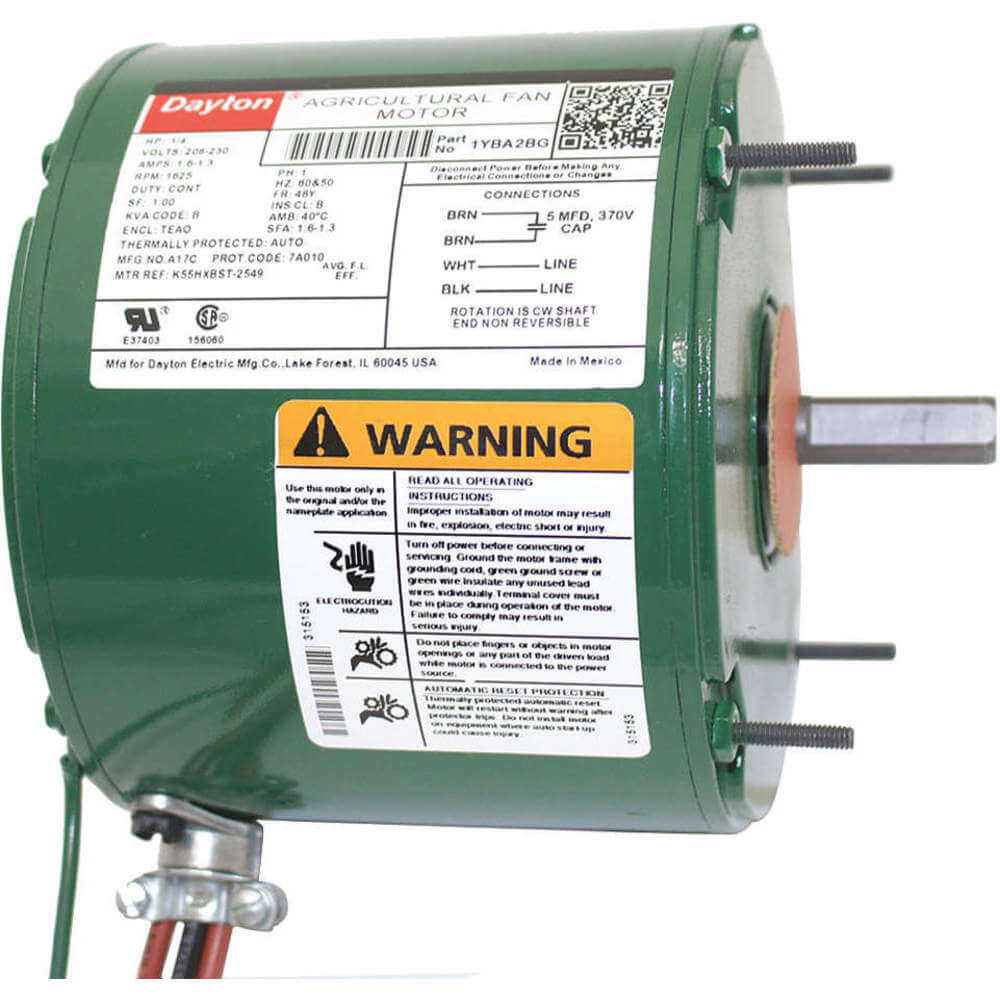

DAYTON 1YBA2BG Hatcher/setr Motor Psc Teao 1/4hp 1625rpm
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€388.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hatcher/Setter Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Capacitor Required | 2MDV4 |
| Color | Green |
| Duty Cycle | Continuous |
| Efficiency | 60.9% |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.3-1.6A |
| Hp | 1/4 hp |
| Includes | Shaft Slinger, Installed Bx-Connector, Extended Thru Bolts |
| Ins. Class | Class B |
| Length Less Shaft | 4 9/16" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Stud |
| Motor Mounting Type | Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Double Flat |
| Motor Shaft Rotation | Clockwise |
| Motor Shaft Rotation | CW |
| Motor Sub Application | Hatchery |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1625 RPM |
| Nominal Efficiency | 60.9% |
| Overall Length | 6 1/8" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 9/16" |
| Shaft Type | Flat |
| Thermal Protection | Automatic |
| Voltage | 208-230V AC |
Shipping Info:
| Ship weight (kg) | 5.48 |
| Ship height (cm) | 22.1 |
| Ship length (cm) | 31.75 |
| Ship width (cm) | 19.05 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Motor Mounting Type | Frame | Motor Thermal Protection | Motor Shaft Design | Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

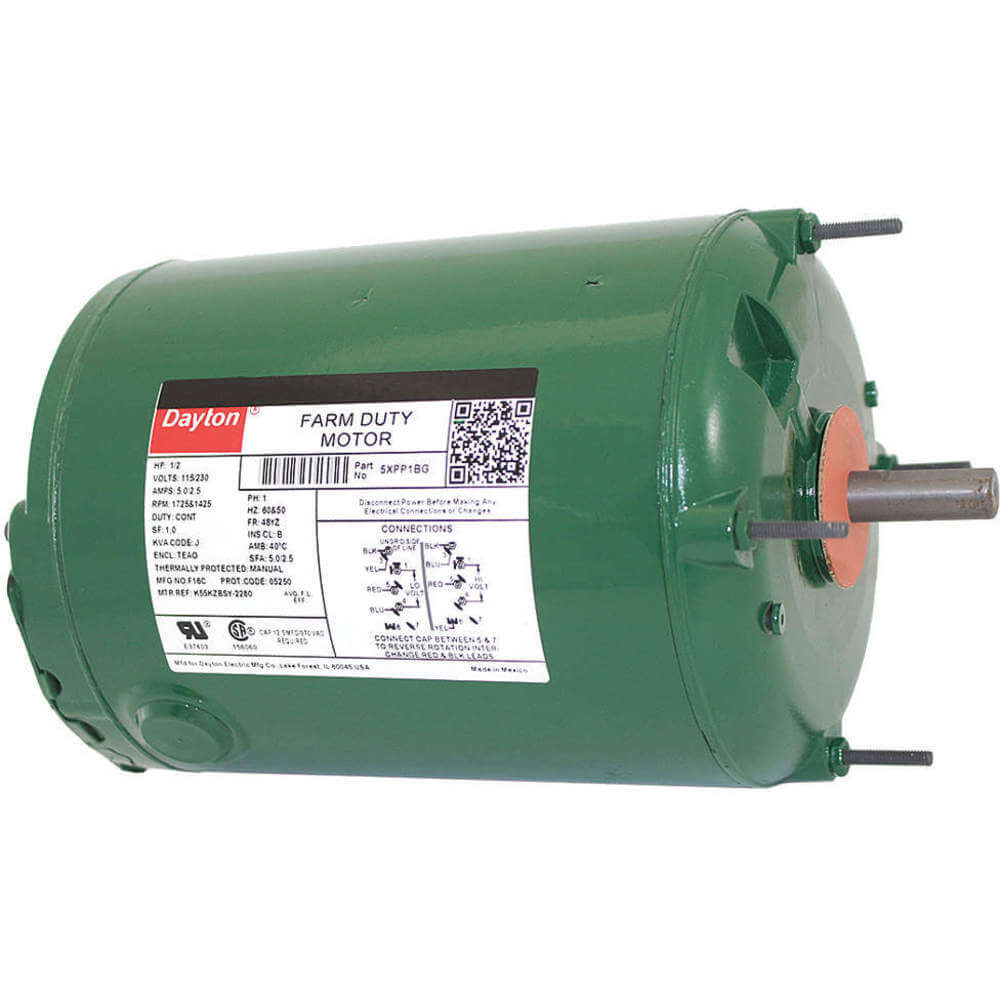

5XPP1BG | 115/230V AC | 1/2 hp | 1725 RPM | Band, Stud | 48YZ | Manual | Flat | Manual | €339.07 |
