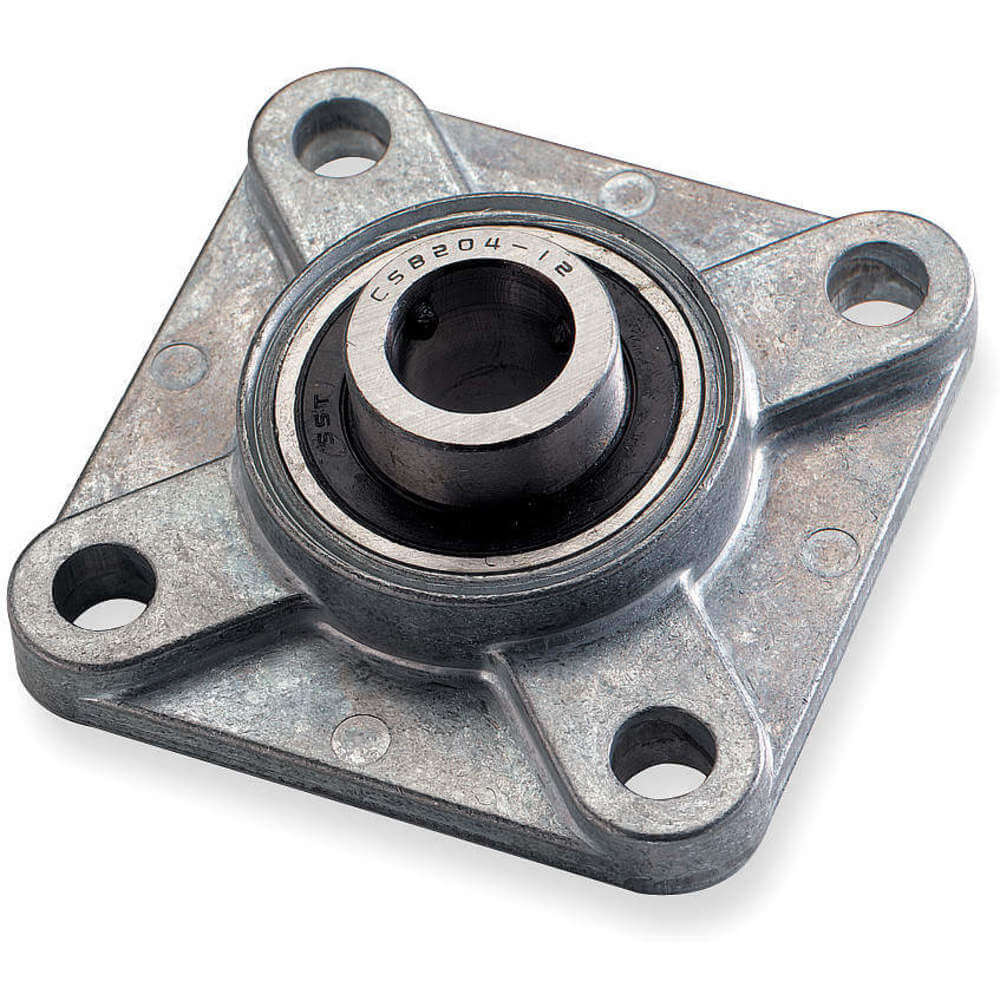

DAYTON 1F550 Flange Mount Bearing 5/8 Inch Bore
Item: AA9TGUModel: 1F550
7 In Stock
Ships within 2 days via
5.00% off
€75.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Mount Bearing |
| Bearing Housing Material Type | Zinc Die Cast |
| Bearing Insert Material | Alloy, Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Center To Center Length | 2 1/8" |
| Bolt Hole Size | 3/8" |
| Bolt Size | 3/8" |
| Bore Dia. | 5/8" |
| Bore Dia. Tolerance | 0.001", 0.0005" |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Dimension L | 1-1/32 |
| Dimensions B | 3" |
| Dimensions C | 2 1/8" |
| Dimensions D | 1 7/8" |
| Dimensions E | 2 1/8" |
| Dimensions F | 1 1/32" |
| Dimensions H | 3/8" |
| Dimensions J | 3/8" |
| Dimensions L | 1 1/32" |
| Dynamic Load Capacity | 1075 lbf. |
| Expansion Type | Fixed |
| Features | Ball Bearing Is Pre-Lubricated And Made To Abec-1 Tolerance, Housing Retains Bearing Securely By Pressing The Lip 360° Over The Outer Race, Ideal For Applications Requiring Strong Load Support In Limited Mounting Areas, Neoprene Seal Keeps Contaminants Out Allowing For Usage In Wet Or Dry Conditions, Solid Zinc Die Cast Housing Is Non-Corrosive And Lightweight, Wide Inner Race Locks Securely To The Shaft With Two Set Screws |
| Finish | Rust Proof Plated |
| Flange Thickness | 3/8" |
| Grade | Grade 52100 |
| Housing Material | Zinc Die Cast |
| Housing Material Finish | Unfinished |
| Housing Type | Square |
| Included | (2) Set Screws |
| Included Mounting Hardware | Yes |
| Insert | Ball Bearing |
| Insert Finish | Chrome Plated |
| Insert Material | Alloy Steel |
| Insert Type | Radial Ball |
| Insert Type | Ball |
| Lock Type | Set Screw |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Material | Steel |
| Max. Speed | 5000 RPM |
| Max. Temp. | 200°F |
| Min. Temp. | -30°F |
| Mount Hole Center To Center Height | 2 1/8" |
| Mount Hole Center To Center Length | 2 1/8" |
| Mount Hole Size | 3/8" |
| Mounting Bolt Size | 3/8" |
| Mounting Hole Center | 2 1/8" |
| No. Of Bolts | 4 |
| No. Of Mount Holes | 4 |
| Overall Height | 3" |
| Overall Length | 3" |
| Overall Width | 1 1/64" |
| Resistance Properties | Corrosion Resistant |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Shaft Locking Type | Set Screw |
| Static Load Capacity | 1075 lbs. |
| Static Radial Load Capacity | 2152 lbf. |
| System Of Measurement | Imperial |
| Temp. | -30°F to +200°F |
| Type | Ball |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 2.62 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.62 |
| HS code | 8483208040 |
| Country of Origin | US |
Product Variants
| Model | Housing Material | Bore Dia. | Bolt Size | Finish | Dynamic Load Capacity | Overall Width | Overall Height | Static Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1A396 | Zinc Die Cast | 1/2" | 1/4" | Rust Proof Plated | 2152 lbf. | 2" | 1 1/16" | 1075 lbs. | €52.81 | |
| 1A397 | Zinc Die Cast | 5/8" | 1/4" | Rust Proof Plated | 2152 lbf. | 2" | 1 1/16" | 1075 lbs. | €63.99 | |
| 1A398 | Zinc Die Cast | 3/4" | 5/16" | Rust Proof Plated | 2877 lbf. | 2 1/4" | 1 1/8" | 1479 lbs. | €63.98 | |
| 1A399 | Zinc Die Cast | 1" | 5/16" | Rust Proof Plated | 3153 lbf. | 2 1/2" | 1 3/16" | 1768 lbs. | €50.49 | |
| 1A400 | Steel | 1/2" | 7/16" | Rustproof Plated | 2877 lbf. | 3" | 1 3/4" | 1479 lbs. | €63.53 | |
| 1A401 | Steel | 5/8" | 7/16" | Rustproof Plated | - | 3" | - | - | €63.70 | |
| 1A402 | Steel | 3/4" | 7/16" | Rustproof Plated | 2877 lbf. | 3" | 1 3/4" | 1479 lbs. | €70.70 |
